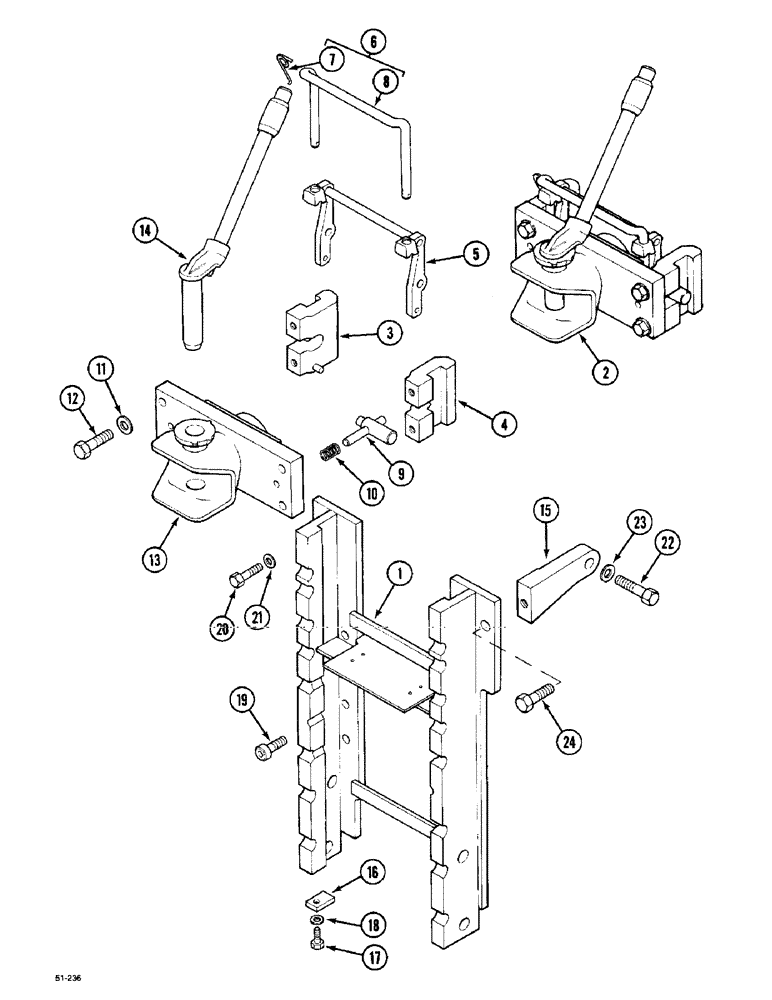

Запчасти Case IH 5150 (9G-072) - AUTO TRAILER HITCH - STANDARD CLEVIS, ( - JJF1036658) (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

HITCH ASSY., 90117, Consists Of: 1-18

1шт.

1

1974085C1

SUPPORT ASSY.

1шт.

2

1974251C1

DRAW HOOK

SUPPORT ASSY., 90117, Includes: 3-14

1шт.

3

1974086C1

FIXING BRACKET

ASSY., 90117, Left

1шт.

4

1974087C1

FIXING BRACKET

ASSY., 90117, Right

1шт.

5

1974088C1

LEVER

ASSY.

1шт.

6

1974089C1

HANDLE

90117, Includes: 7, 8

1шт.

7

1974090C1

SPRING

1шт.

8

1974091C1

HANDLE

1шт.

9

1974092C2

PIN

ASSY.

1шт.

10

1974093C2

SPRING

1шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

1шт.

12

614-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 8.8, Full Thd

1шт.

13

1974252C1

TRAILER HITCH

SHACKLE

1шт.

14

1974073C1

CLEVIS PIN

ASSY.

1шт.

15

1974064C2

SUPPORT

90117, Right

1шт.

16

1974254C2

BLOCK

1шт.

17

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

18

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

19

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

M16 x 40; 12.9

8шт.

20

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

2шт.

21

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

22

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

1шт.

23

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

24

864-20050

HEX SOC SCREW,M20 x 50mm, Cl 8.8

M20 x 50

1шт.
