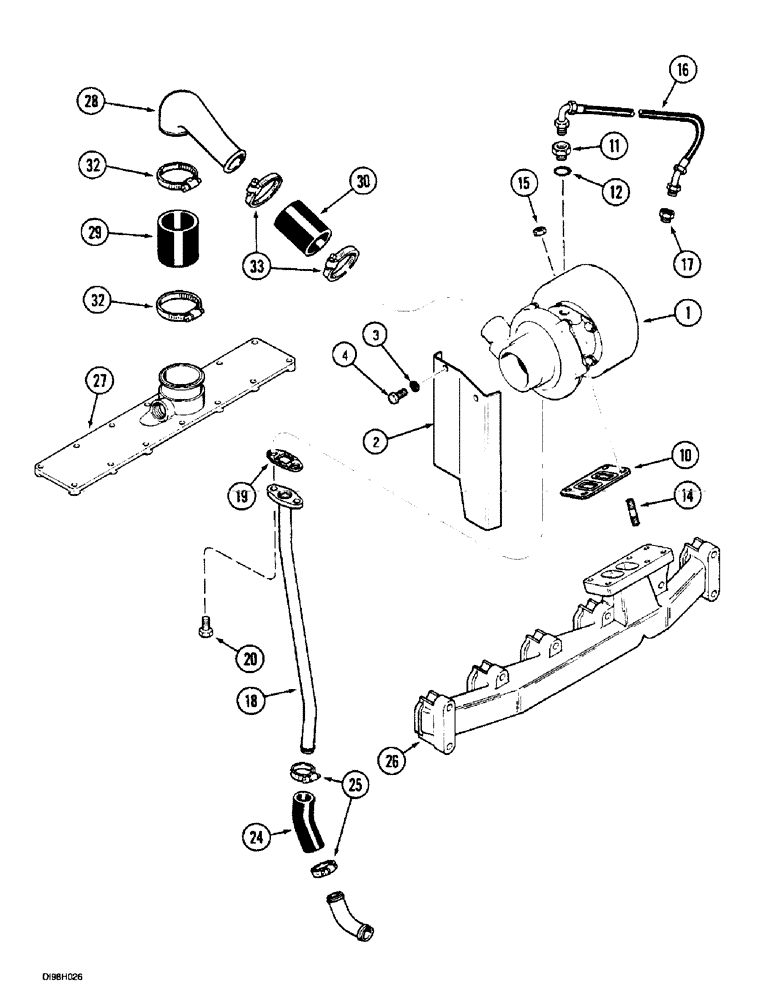

Запчасти Case IH 5150 (2-058) - TURBOCHARGER AND CONNECTIONS, (5140/5150) (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER, 20325 See Figure: 2-60

1шт.

2

1530816C4

LARGE PLATE

PLATE, LARGE 20325, 5150

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20333, 5150

2шт.

4

614-8010

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

20333, 5150

2шт.

10

J901356

GASKET,0.5mm Thk

1шт.

11

J919687

HYD CONNECTOR

20327 Includes: 12

1шт.

12

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

14

J818823

STUD

M10 x 42

1шт.

15

J818824

FLANGE NUT

M10

4шт.

16

J909548

HOSE

1шт.

17

A77457

FITTING

CONNECTOR

1шт.

18

J918579

TUBE

1шт.

19

J928919

GASKET

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

24

J903745

LARGE HOSE

HOSE,LARGE 76 mm (3 in)

1шт.

25

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

26

REF

INSTRUCTION

MANIFOLD, 20333 Exhaust See Figure: 2-54

1шт.

27

REF

INSTRUCTION

MANIFOLD, 20327 Intake See Figure: 2-54

1шт.

28

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

ADAPTER

1шт.

29

J916529

TRANSMISSION SLEEVE

HOSE 76 mm (3 in)

1шт.

30

J916166

INTAKE AIR HOSE

71 mm (2-7/8 in)

1шт.

32

J924386

COLLAR CLAMP

2шт.

33

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
