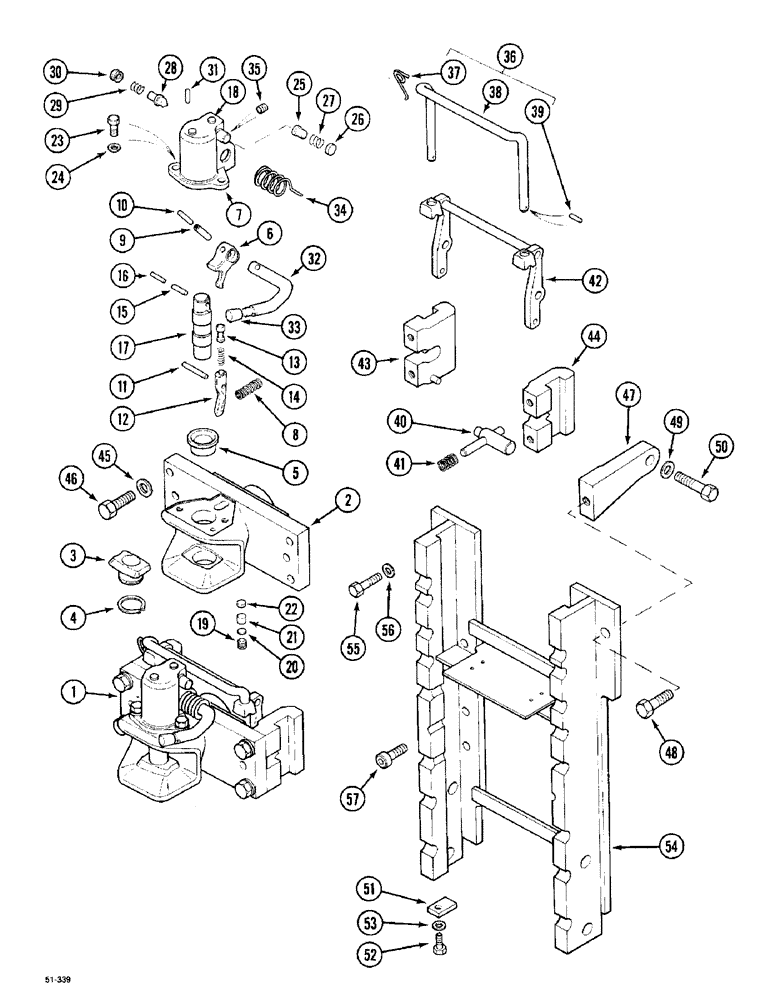

Запчасти Case IH 5150 (9G-068) - AUTO TRAILER HITCH, ’CRAMER ’ (09) - CHASSIS/ATTACHMENTS

1b

1530914C1

TRAILER HITCH

SHACKLE, 90117, Includes Pin: 32 mm, Includes: 2-46, Serial Range: JJF1024005-JJF1036657

1шт.

1a

1348162C1

DRAW HOOK

SHACKLE, 90117, Includes Pin: 32 mm, Includes: 2-46, Start Serial: JJF1024004

1шт.

1b

1530930C1

HITCH ASSY

SHACKLE, 90117, Includes Pin: 38 mm, Includes: 2-46, Serial Range: JJF1024005-JJF1036657

1шт.

1a

1348167C1

DRAW HOOK

SHACKLE, 90117, Includes Pin: 38 mm, Includes: 2-46, Start Serial: JJF1024004

1шт.

2a

1348163C1

HITCH ASSY, TRAILER

BAR, 90117, For Pin: 32 mm, Includes: 3-35, Start Serial: JJF1024004

1шт.

2a

1348168C1

HITCH ASSY, TRAILER

BAR, 90117, For Pin: 38 mm, Includes: 3-35, Start Serial: JJF1024004

1шт.

3

1530931C1

CENTERING RING

BUSHING, 90117, Includes: 4

1шт.

4

3057331R1

SNAP RING,M40, Ext, Hvy

retaining 40 x 2.5 mm

1шт.

5

1348116C1

BUSHING

90117, For Pin: 32 mm

1шт.

5

1348172C1

BUSHING

90117, For Pin: 38 mm

1шт.

1532261C1

LATCH ASSY.

90117, For Pin: 32 mm

1шт.

1348170C1

LATCH ASSY.

90117, For Pin: 38 mm, Includes: 6-18

1шт.

1530918C1

CAM

ASSY., 90117, Includes: 6, 9, 10

1шт.

6

NSS

NOT SOLD SEPARAT

CAM

1шт.

7

NSS

NOT SOLD SEPARAT

COVER ASSY.

1шт.

8

1348121C1

SPRING

1шт.

9

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

1шт.

10

932231R1

LOCK PIN,M4 x 36, Slotted

roll 5 x 36 mm

1шт.

11

1348123C1

RAWPLUG

PIN

1шт.

b

1530921C1

LEVER ASSY.

90117, Includes: 12-14, Serial Range: JJF1024005-JJF1036657

1шт.

a

1532260C1

LEVER ASSY.

90117, Includes: 12-14, Start Serial: JJF1024004

1шт.

12

NSS

NOT SOLD SEPARAT

LEVER

1шт.

13

1530932C1

CLEVIS PIN

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING

1шт.

15

932234R1

LOCK PIN,M6 x 40, Slotted

1шт.

16

932841R1

COTTER PIN,M3.5 x 40, Slotted

3.5 x 40 mm

1шт.

17

3404939R91

HITCH PIN

32 mm

1шт.

17

3405655R91

HITCH PIN

38 mm

1шт.

18

1348122C1

PLUG

2шт.

19

934969R1

SET SCREW,M14 x 16mm

M14

1шт.

20

1348103C1

RAWPLUG

PIN

1шт.

21

1532250C1

BALL

DAMPER

1шт.

22

1532249C1

FACING

BLOCK

1шт.

23

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

24

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2.5 mm

2шт.

25

NSS

NOT SOLD SEPARAT

PIN cross

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING

1шт.

28

1348111C1

RAWPLUG

PIN

1шт.

29

1348112C1

SPRING

1шт.

30

1348113C1

WASHER

WASHER

1шт.

31

838-5422

LOCK PIN,M4 x 22, Slotted

4 x 22 mm

1шт.

32

1530923C1

GRIP

1шт.

33

1348109C1

COVER

1шт.

34

1348110C2

SPRING

1шт.

35a

877-3066

SET SCREW,Hex Skt, M6 x 6mm, Flat Pt

6 x 6 mm, Start Serial: JJF1024004

1шт.

36

1974089C1

HANDLE

90117, Includes: 37-39

1шт.

37

1974090C1

SPRING

1шт.

38

1974091C1

HANDLE

1шт.

39

932336R1

LOCK PIN,M5 x 16, Slotted

5 x 16 mm

2шт.

40

1974092C2

PIN

ASSY.

2шт.

41

1974093C2

SPRING

2шт.

42

1974088C1

LEVER

ASSY.

1шт.

43

1974086C1

FIXING BRACKET

ASSY., 90117, Left

1шт.

44

1974087C1

FIXING BRACKET

ASSY., 90117, Right

1шт.

45

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

46

614-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 8.8, Full Thd

4шт.

47

1974064C2

SUPPORT

1шт.

48

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

1шт.

49

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

1шт.

50

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

1шт.

51

1974254C2

BLOCK

1шт.

52

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

53

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

54

1974085C1

SUPPORT ASSY.

1шт.

55

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

2шт.

56

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

57

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

M16 x 40; 12.9

8шт.
