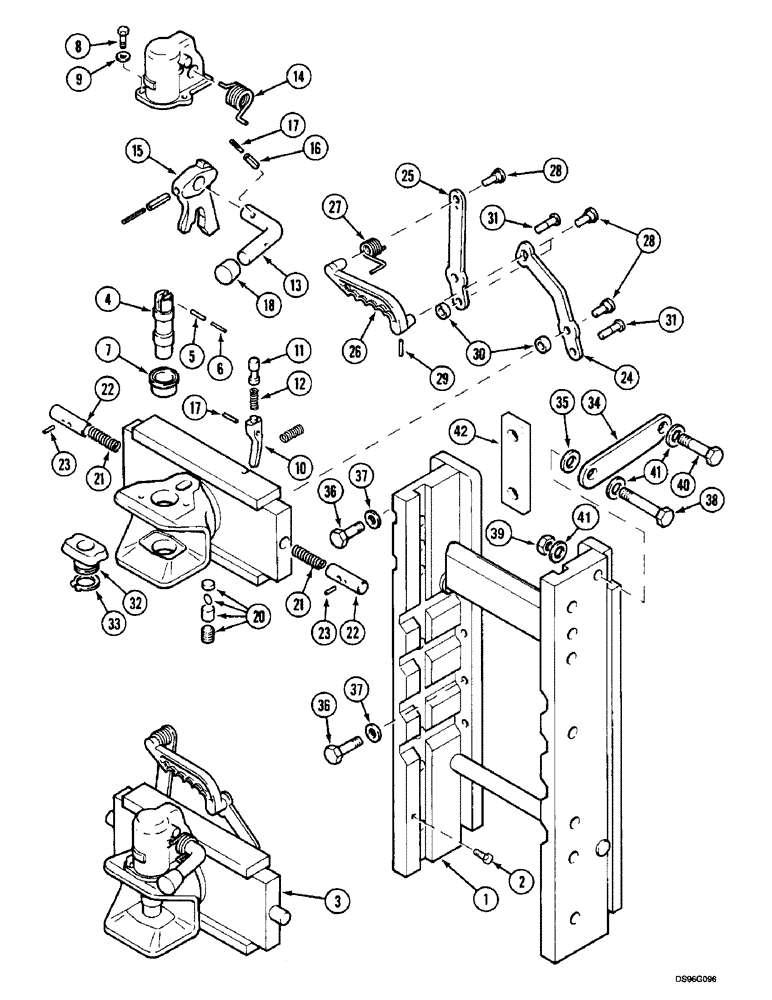

Запчасти Case IH 5150 (9G-054) - TRAILER HITCH WITH AUTOMATIC CLEVIS, (JJF1036659 - ) (09) - CHASSIS/ATTACHMENTS

175103A1

HITCH ASSY

90117, Automatic Clevis, Consists Of: 1B, 3-34B, 35 42

1шт.

NSS

NOT SOLD SEPARAT

HITCH ASSY., 90117, Consists Of: 1A, 3-34A, 35

1шт.

1a

175108A1

SUPPORT ASSY.

FRAME

1шт.

1b

175104A1

SUPPORT ASSY.

FRAME

1шт.

2

864-10035

HEX SOC SCREW,M10 x 35mm, Cl 8.8

M10 x 35; 8.8

1шт.

3

131227A1

TRAILER HITCH

SHACKLE, 90117, Includes: 4-35

1шт.

141025A1

LATCH ASSY.

SOCKET, 90117, Includes: 4, 7-18, See Figure: 9G-55F

1шт.

4

141026A1

PIN,32mm OD x 126mm L

ASSY., 32 mm, 90117, Includes: 5, 6

1шт.

5

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

6

932738R1

LOCK PIN,3.5mm OD x 30mm L, Slotted

roll 3.5 x 30 mm

1шт.

7

141028A1

BUSHING,32mm ID x 48mm OD x 28mm L

32 mm

1шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

1530921C1

LEVER ASSY.

90117, Includes: 11, 12

1шт.

11

1530932C1

CLEVIS PIN

1шт.

12

1348121C1

SPRING

1шт.

141029A1

HANDLE

90117, Includes: 13-18

1шт.

13

141030A1

HANDLE,18mm OD

ASSY.

1шт.

14

1348110C2

SPRING

1шт.

15

141031A1

CAM

1шт.

16

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

1шт.

17

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

1шт.

18

1348109C1

COVER

1шт.

20

177336A1

BRAKE ASSY.

BRAKE ASSY.

1шт.

21

141013A1

SPRING

ASSY.

2шт.

22

141014A1

PIN

2шт.

23

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

2шт.

175101A1

LEVER

90117, Includes: 24-32

1шт.

24

NSS

NOT SOLD SEPARAT

BAR, 90117, Order: 175101A1

1шт.

25

NSS

NOT SOLD SEPARAT

BAR, 90117, Order: 175101A1

1шт.

26

NSS

NOT SOLD SEPARAT

HANDLE ASSY., 90117, Order: 175101A1

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING, 90117, Order: 175101A1

1шт.

28

NSS

NOT SOLD SEPARAT

PIN cross, 90117, Order : 175101A1

1шт.

29

738-1516

LOCK PIN,M5 x 16, Slotted

1шт.

30

NSS

NOT SOLD SEPARAT

SPACER ASSY.

2шт.

31

NSS

NOT SOLD SEPARAT

PIN cross, 90117, Order : 175101A1

2шт.

32

141023A1

BUSHING

1шт.

33

3057331R1

SNAP RING,M40, Ext, Hvy

retaining 40 x 2,5 mm

1шт.

34a

175151A1

LARGE PLATE

PLATE, LARGE 241 mm

1шт.

34b

175105A1

LARGE PLATE

PLATE, LARGE 255 mm

1шт.

35

175152A1

SPACER

ASSY.

2шт.

36

962-16045

HEX SOC SCREW,M16 x 45mm, Cl 10.9

M16 x 45

10шт.

37

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

38

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

1шт.

39

829-1320

NUT,M20, Cl 10

1шт.

40

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

1шт.

41

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

3шт.

42

185169A1

SPACER

1шт.
