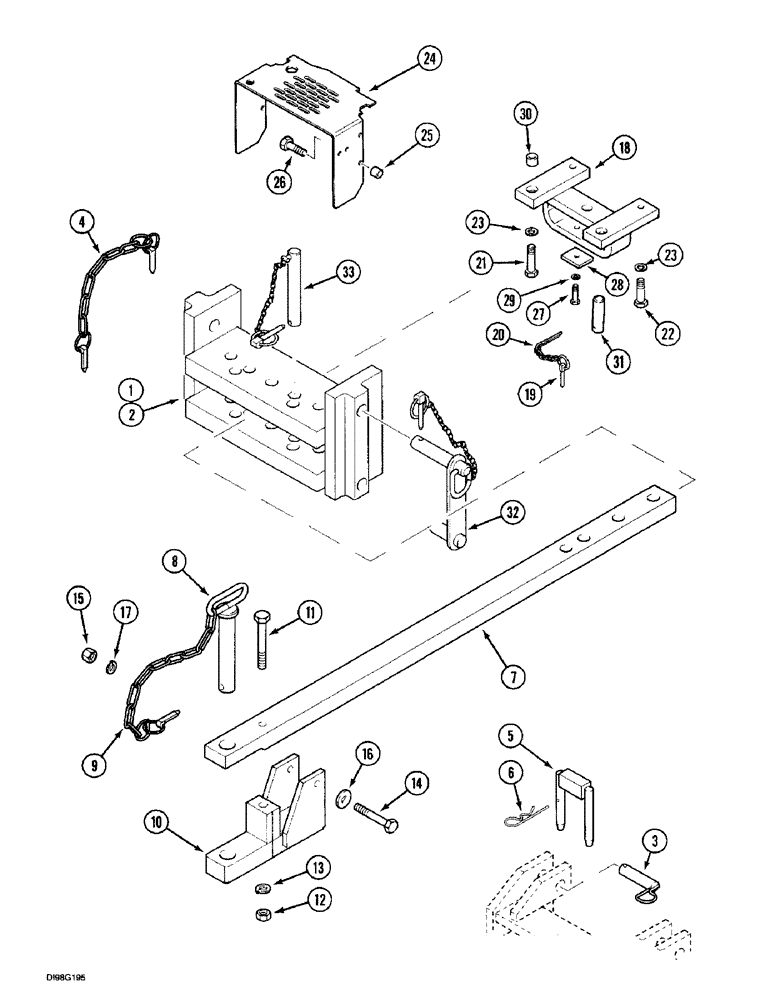

Запчасти Case IH 5150 (9G-048) - HITCH - DRAWBAR FOR T.U.V. HITCH (09) - CHASSIS/ATTACHMENTS

1

1973915C1

BRACKET

ASSY., 90117, Includes: 2, 3, 4, Serial Range: -JJF1036658

1шт.

1

131228A2

SUPPORT ASSY.

90117, Includes: 32, 33, Start Serial: JJF1036659

1шт.

2

1973916C1

SUPPORT

1шт.

3

1973917C1

PIN

ASSY.

4шт.

4

1973918C1

PIN

2шт.

5

1982072C1

RAWPLUG

PIN ASSY.

1шт.

6

720631R1

LINCH PIN

CLIP spring

1шт.

7

1332020C3

BAR

1шт.

8

1974215C3

HITCH PIN,40mm OD x 185mm L

ASSY., 90117, Includes: 9

1шт.

9

NSS

NOT SOLD SEPARAT

CHAIN ASSY., 90117, Order: 1974215C3

1шт.

10

1973926C2

SUPPORT

STRAP ASSY.

1шт.

11

828-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

1шт.

12

829-1316

NUT,M16, Cl 10

1шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

14

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

1шт.

15

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

16

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

17

892-11012

LOCK WASHER,M12

1шт.

18

1348194C1

HITCH BRACKET

ASSY., 90117, Includes: 1998011C2, Serial Range: -JJF1026487

1шт.

18

1530810C1

HITCH BRACKET

ASSY., 90117, Includes: 30, Start Serial: JJF1026488

1шт.

1998011C2

CHAIN (AG)

ASSY., 90117, Includes: 19, 20

1шт.

19

1348196C1

CHAIN (AG)

1шт.

20

1348064C1

LINCH PIN

1шт.

21

828-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

90117, Serial Range: -JJF1026487

2шт.

21

828-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

90117, Start Serial: JJF1026488

2шт.

22

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

90117, Serial Range: -JJF1026487

2шт.

22

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

90117, Start Serial: JJF1026488

2шт.

23

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm

4шт.

24

1974281C5

PROTECTION PLATE

SHIELD ASSY.

1шт.

25

1974263C1

SPACER

4шт.

26

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

27

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

90117, Start Serial: JJF1026488

1шт.

28

1530624C1

PLATE

BAR, 90117, Start Serial: JJF1026488

1шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

90117, Start Serial: JJF1026488

1шт.

30

1331722C1

LARGE PIN

PIN, LARGE

2шт.

31

1331764C4

PIN

ASSY., 90117, Serial Range: -JJF1011992

1шт.

31

1348197C1

HITCH PIN

ASSY., 90117 (, Serial Range: JJF1011993-1026487

1шт.

31

1530623C1

HITCH PIN

ASSY., 90117, Start Serial: JJF1026488

1шт.

32

175735A1

HITCH PIN

ASSY.

2шт.

33

139129A1

HITCH PIN

ASSY.

1шт.
