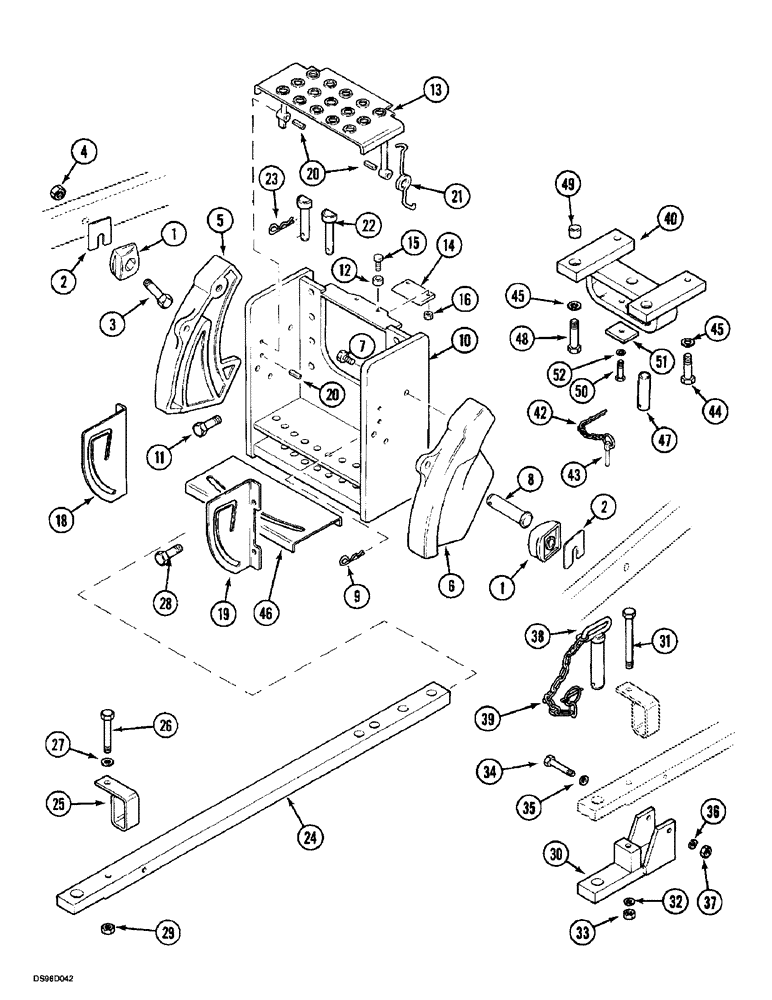

Запчасти Case IH 5150 (9G-044) - HITCH - STABILIZER, DRAWBAR AND P.T.O. SHIELD (09) - CHASSIS/ATTACHMENTS

1

1348091C1

STOP

BUMPER

2шт.

2

1961402C2

SPACER

SHIM adjusting

4шт.

3

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

2шт.

4

832-41320

NUT,M20 x 2.5, Cl 10

2шт.

5

1973960C2

CAM

1шт.

6

1973961C2

CAM

1шт.

7

30215R1

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9

M16 x 45;10.9

2шт.

8

236681A1

CLEVIS PIN

16 x 40 mm

2шт.

9

905821R1

COTTER PIN,6.3mm x 78.3mm L

2шт.

10a

1533762C1

SUPPORT ASSY.

90117, 5120, 5130, 5140, Start Serial: JJF1013841

1шт.

10b

1534262C1

SUPPORT ASSY.

, Serial Range: -JJF1013842

1шт.

11

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

12b

1534260C1

WASHER

25 mm, Serial Range: -JJF1013842

2шт.

13a

1960202C1

STEP

SHIELD ASSY., 90117, Independent Power Take Off, 5120, 5130, 5140, Start Serial: JJF1013841

1шт.

13b

1534252C1

PROTECTOR

ASSY., 90117, Independent Power Take Off, Serial Range: -JJF1013842

1шт.

14a

1960114C1

CLAMP

90117, 5120, 5130, 5140, Start Serial: JJF1013841

1шт.

14b

1534259C1

FIXING BRACKET

CLAMP, Serial Range: -JJF1013842

1шт.

15a

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

90117, 5120, 5130, 5140, Start Serial: JJF1013841

2шт.

15b

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

, Serial Range: -JJF1013842

2шт.

16

829-1308

NUT,M8, Cl 10

2шт.

18a

1965633C1

PLATE

90117, 5120, 5130, 5140, Start Serial: JJF1013841

1шт.

19a

1965634C1

PLATE

90117, 5120, 5130, 5140, Start Serial: JJF1013841

1шт.

20

932303R1

LOCK PIN,M10 x 40, Slotted

10 x 40 mm

3шт.

21b

1534261C1

SPRING

, Serial Range: -JJF1013842

2шт.

22

1534666C1

HITCH PIN

2шт.

23

1534667C1

LINCH PIN

CLIP spring

1шт.

24

1332020C3

BAR

1шт.

25

1973937C1

SUPPORT

1шт.

26

828-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

1шт.

27

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

28

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

29

829-1316

NUT,M16, Cl 10

1шт.

30

1973926C2

SUPPORT

STRAP ASSY.

1шт.

31

828-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

1шт.

32

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

33

829-1316

NUT,M16, Cl 10

1шт.

34

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

1шт.

35

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

36

892-11012

LOCK WASHER,M12

1шт.

37

829-1412

NUT,M12, Cl 10.9

1шт.

38

1974215C3

HITCH PIN,40mm OD x 185mm L

ASSY., 90117, Includes: 39

1шт.

39

1974219C1

CHAIN (AG)

ASSY., 90117, Order: 1974215C3

1шт.

40

1348194C1

HITCH BRACKET

ASSY., 90117, Includes: 1998011C2, Serial Range: -JJF1026487

1шт.

40

1530810C1

HITCH BRACKET

ASSY., 90117, Includes: 49, Start Serial: JJF1026488

1шт.

1998011C2

CHAIN (AG)

ASSY.

1шт.

42

1348196C1

CHAIN (AG)

1шт.

43

1348064C1

LINCH PIN

1шт.

44

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

90117, Serial Range: -JJF1026487

2шт.

44

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

90117, Start Serial: JJF1026488

2шт.

45

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm

4шт.

46

1332034C2

PLATE

1шт.

47

1331764C4

PIN

ASSY., 90117, 5120, 5130, 5140, Serial Range: -JJF1011992

1шт.

47

1348197C1

HITCH PIN

ASSY., 90117, Serial Range: JJF1011993-1026487

1шт.

47

1530623C1

HITCH PIN

ASSY., 90117, Start Serial: JJF1026488

1шт.

48

828-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

90117, Serial Range: -JJF1026487

2шт.

48

828-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

90117, Start Serial: JJF1026488

2шт.

49

1331722C1

LARGE PIN

PIN, LARGE

2шт.

50

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

90117, Start Serial: JJF1026488

1шт.

51

1530624C1

PLATE

BAR, 90117, Start Serial: JJF1026488

1шт.

52

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

90117, Start Serial: JJF1026488

1шт.
