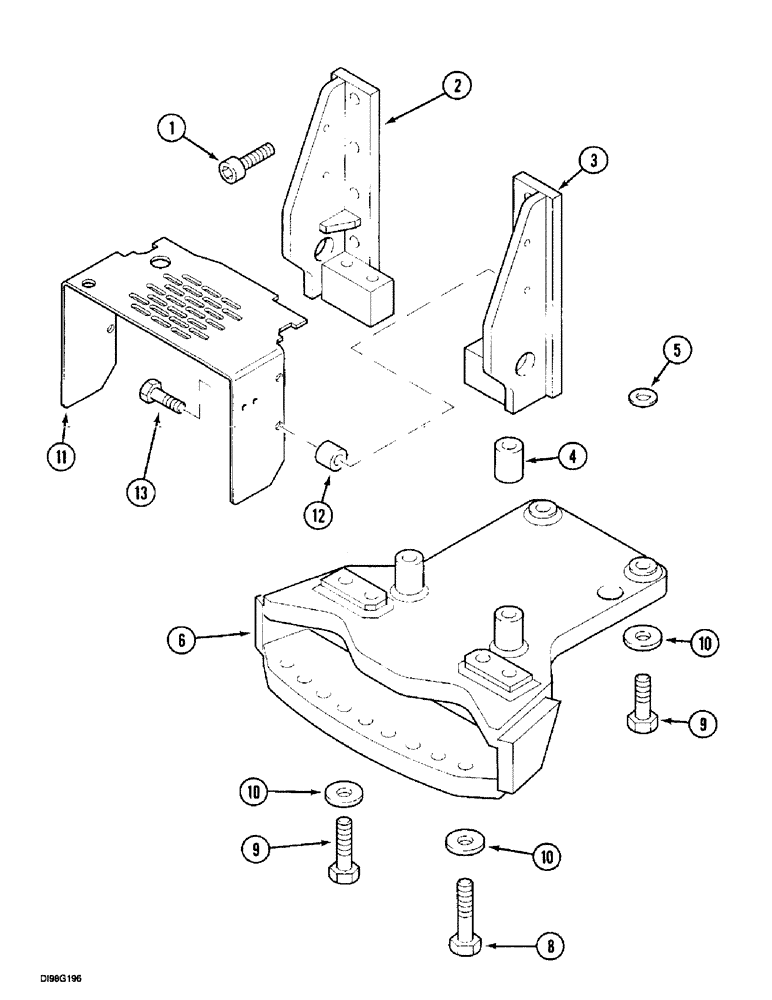

Запчасти Case IH 5150 (9G-042) - HITCH - SWINGING DRAWBAR SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

31303R1

HEX SOC SCREW,M16 x 45mm, Cl 12.9

16 x 45 mm

8шт.

2

1534662C1

HITCH BRACKET

90117, Left. Short

1шт.

3

1534663C1

HITCH BRACKET

90117, Right, Short

1шт.

4

1960105C2

SPACER

90117, Long

2шт.

5

1960093C1

WASHER

SPACER, 90117, Short

2шт.

6

1534659C1

HITCH BRACKET

1шт.

8

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

9

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

10

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

11

1974281C5

PROTECTION PLATE

ASSY., 90117, Independent Power Take Off

1шт.

12

1974263C1

SPACER

4шт.

13

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.
