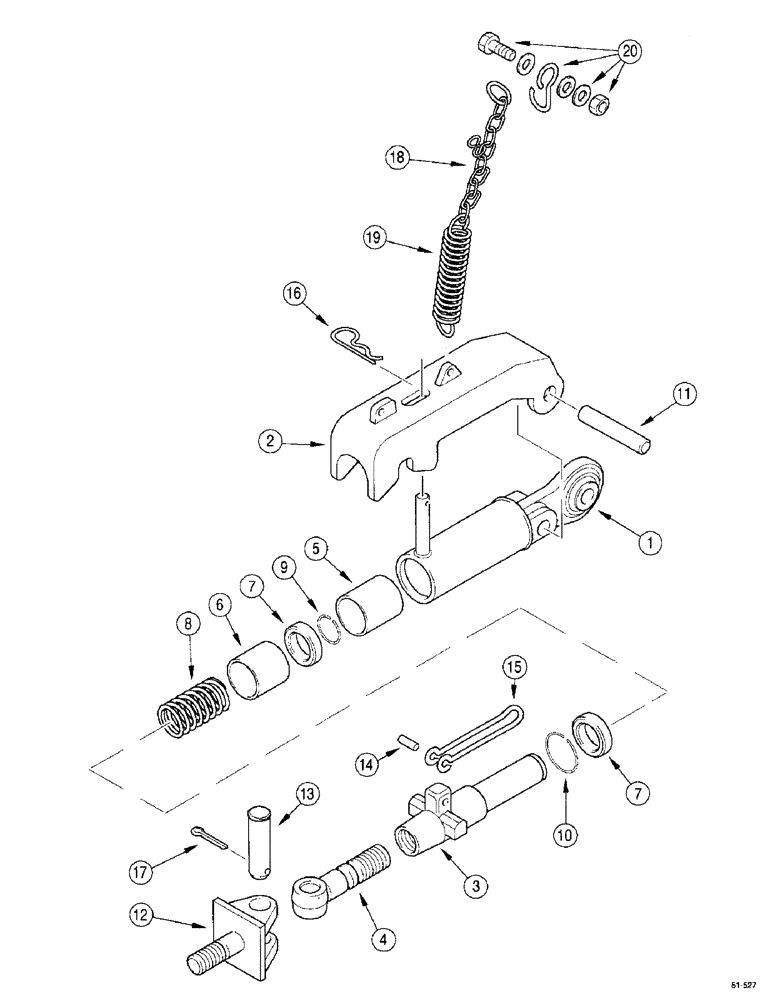

Запчасти Case IH 5150 (9G-038) - HITCH - AUTOMATIC STABILIZER, LEFT, (JJF1040640 - ) (09) - CHASSIS/ATTACHMENTS

193137A2

STABILIZER

96120, Consists Of: 1-20

1шт.

1

193138A1

LIFT LINK END ASSY

BOS ASSY.

1шт.

2

193139A1

LEVER

1шт.

3

193140A1

HOUSING

shaft

1шт.

4

193141A2

ROD,THREADED,M30

THREADED ROD BOLT eye

1шт.

5

193142A1

BUSHING,42mm ID x 48mm OD x 47.5mm L

1шт.

6

193144A1

BUSHING

1шт.

7

193143A1

GUIDE RING,32.2mm ID x 49.7mm OD x 10mm L

GUIDE

2шт.

8

193145A1

SPRING

1шт.

9

906026R1

CIRCLIP,Ext, M29.1

2.5 x 32 mm

1шт.

10

906027R1

CIRCLIP,Ext, M47

2.5 x 50 mm

1шт.

11

738-52085

PIN,M20 x 85, Slotted

20 x 85 mm

1шт.

12

193149A1

CLEVIS

1шт.

13

193148A1

CLEVIS PIN,25mm OD x 82mm L

1шт.

14

738-51032

LOCK PIN,M10 x 32, Slotted

10 x 32 mm

1шт.

15

193146A1

SPRING

1шт.

16

905821R1

COTTER PIN,6.3mm x 78.3mm L

1шт.

17

733-6336

COTTER PIN,M6.3 x 36

1шт.

18

193150A1

CHAIN,663mm L

ASSY., 96120, Includes: 19

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING, 96120, Order : 193150A1

1шт.

20

193151A1

HOOK

ASSY.

1шт.
