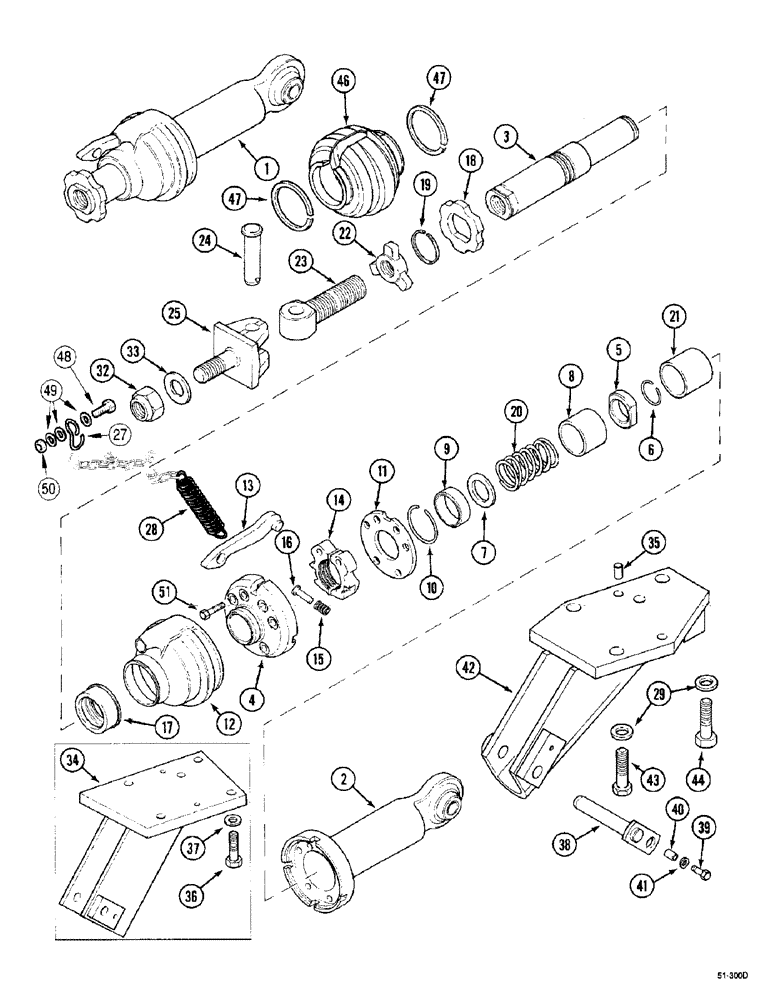

Запчасти Case IH 5150 (9G-034) - HITCH - AUTOMATIC STABILIZER, LEFT, ( - JJF1040369) (09) - CHASSIS/ATTACHMENTS

1348190C1

STABILIZER

96133, Consists Of: 1-28, 48-50

1шт.

1

1347942C2

STABILIZER

96133, Includes: 2-21, 26-28

1шт.

2

1347943C1

JACK BODY

BOX ASSY.

1шт.

3

1347949C2

SHAFT

1шт.

4

1347950C2

FLANGE

1шт.

5

1347951C1

GUIDE

1шт.

6

905993R1

RING, SNAP

RING SNAP

1шт.

7

1347952C1

SPACER

1шт.

8

1347953C1

BUSHING

96133, Short

1шт.

9

1347954C1

SLEEVE

1шт.

10

905994R1

RING, SNAP

RING SNAP

1шт.

11

1347955C1

LARGE PLATE

PLATE, LARGE

1шт.

12

1347956C1

BOOT

1шт.

13

1347957C1

LEVER

1шт.

14

1347958C1

CLAMP

1шт.

15

1347959C1

SPRING

1шт.

16

1347960C1

RAWPLUG

PIN

1шт.

17

1347961C1

WIPER SEAL

wiper

1шт.

18

1347962C1

COLLAR

1шт.

19

1347987C1

SEGMENT

RING

1шт.

20

1347970C1

SPRING

1шт.

21

1347971C1

BUSHING

96133, Long

1шт.

22

1347963C1

LOCK NUT

1шт.

23

1347964C1

ROD,THREADED

THREADED ROD BOLT

1шт.

24

193148A1

CLEVIS PIN,25mm OD x 82mm L

1шт.

25

193149A1

CLEVIS

1шт.

27

193151A1

HOOK

ASSY.

1шт.

28

193150A1

CHAIN,663mm L

ASSY.

1шт.

29

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, 96133, Start Serial: JJF1007593

3шт.

32

832-41324

NUT,M24 x 3, Cl 10

1шт.

33

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

1шт.

34

1533167C2

HITCH BRACKET

ASSY., 96131, Left, 5120, 5130, 5140, Includes: 35, Serial Range: -JJF1007592

1шт.

35

837-12025

DOWEL,M12 x 25

2шт.

36

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

96131, 5120, 5130, 5140, Serial Range: -JJF1007592

4шт.

37

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

96131, 5120, 5130, 5140, Serial Range: -JJF1007592

4шт.

38

1533173C1

HEADED PIN,19mm OD x 114mm L

1шт.

39

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

40

1533065C1

SPACER

1шт.

41

933615R1

WASHER,M8.4 x 21 x 4

1шт.

42

1533545C1

SUPPORT ASSY.

96131, Left, Includes: 35, Start Serial: JJF1007593

1шт.

43

861-20060

HEX SOC SCREW,M20 x 60mm, Cl 12.9

96131, Start Serial: JJF1007593

4шт.

44

861-20110

HEX SOC SCREW,M20 x 110mm, Cl 12.9

96131, Start Serial: JJF1007593

2шт.

46

1348191C1

BELLOWS

COVER, 96133, Safety, Includes: 47

1шт.

47

1348192C1

CLAMP

2шт.

48

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

49

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

50

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

51

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

96133, Right

6шт.
