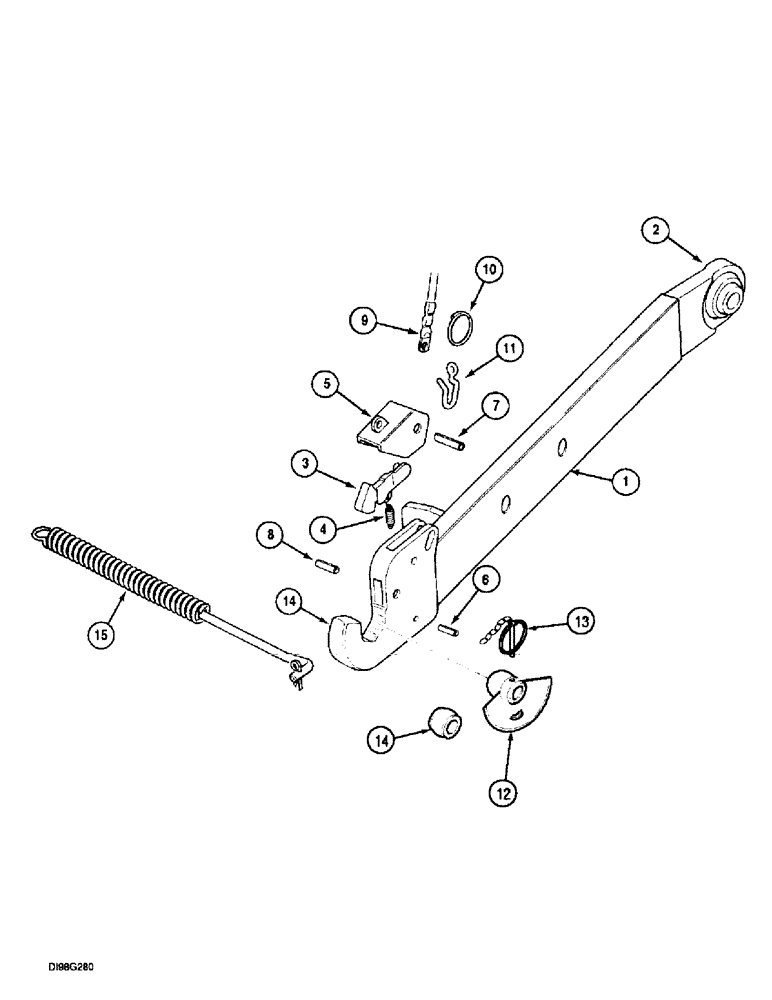

Запчасти Case IH 5150 (9G-032) - HITCH - LOWER LIFT LINKS, (MAXXUM PRO - ) (09) - CHASSIS/ATTACHMENTS

231177A1

LOWER LINK

96120, Left, Includes: 1-8

1шт.

231178A1

LOWER LINK

96120, Right, Includes: 1-8

1шт.

1

NSS

NOT SOLD SEPARAT

LINK lower, 96120, Left

1шт.

1

NSS

NOT SOLD SEPARAT

LINK lower, 96120, Right

1шт.

2

231174A1

WELDED END

BALL

1шт.

3

1348155C1

LATCH ASSY.

1шт.

4

1974207C1

SPRING

1шт.

5

1348156C1

LEVER

1шт.

6

838-1632

LOCK PIN,6mm OD x 32mm L, Slotted

1шт.

7

838-51350

LOCK PIN,13mm OD x 50mm L, Slotted

13 x 50 mm

1шт.

8

838-51336

LOCK PIN,M13 x 36, Slotted

1шт.

9

1534794C1

ROPE

1800 mm

1шт.

10

1534796C1

LOCK WASHER

2шт.

11

1534682C1

LATCH HOOK

1шт.

235063A1

SET OF PARTS

96120, Consists Of: 12-14

1шт.

12

132123A1

BALL

28,4 ID/64 OD, 96120, With Flange, Cat3-2

2шт.

13

1537373C1

LINCH PIN

1шт.

14

231129A1

BALL JOINT

25,4 ID/60 OD

1шт.

15

1252040C1

SPRING

SPACER ASSY., 96120 Separator

1шт.
