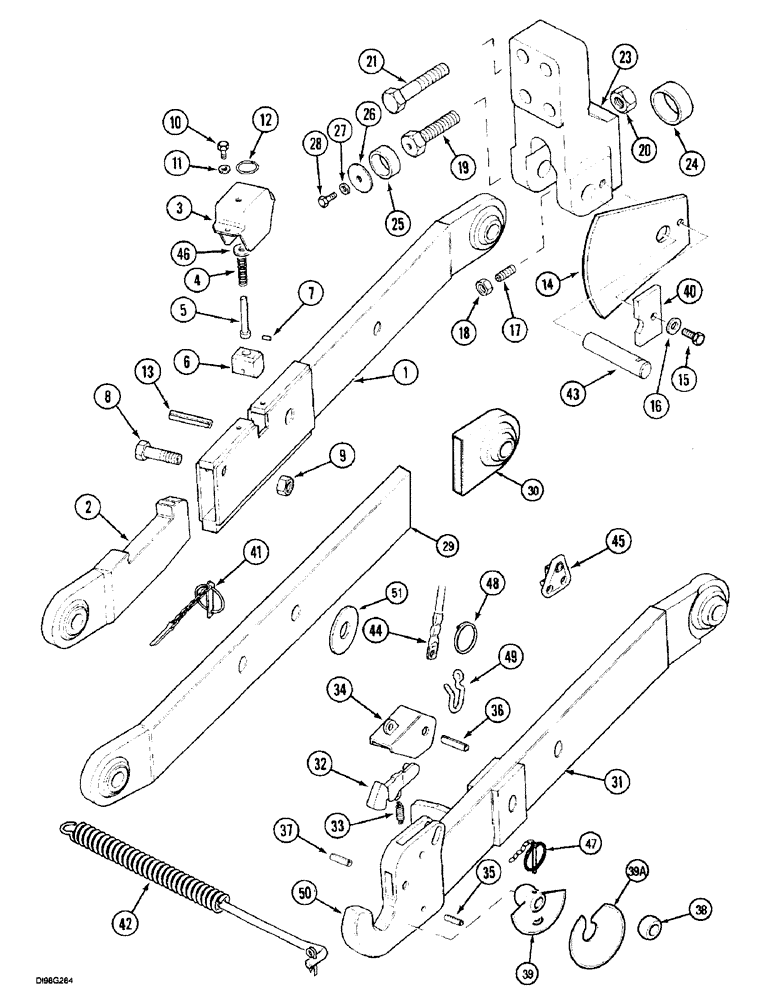

Запчасти Case IH 5150 (9G-026) - HITCH - LOWER LIFT LINKS, ( - MAXXUM PRO) (09) - CHASSIS/ATTACHMENTS

1

113873A1

LOWER LINK

Front, Left

1шт.

1

113874A1

LOWER LINK

Front, Right

1шт.

2

1965348C1

LOWER LINK

Rear, Left

1шт.

2

1965385C1

LOWER LINK

Rear, Right

1шт.

3

120975A1

COVER

2шт.

4

1331904C1

SPRING

, Serial Range: -JJF1028063

2шт.

4

113774A1

SPRING

, Start Serial: JJF1028064

2шт.

5

1965345C1

CLEVIS PIN

, Serial Range: -JJF1028063

2шт.

6

120976A1

PIN

BLOCK

2шт.

7

1974038C1

PIN

, Serial Range: -JJF1028063

2шт.

8

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

2шт.

9

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

10

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

4шт.

11

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

12

1965556C1

RING

2шт.

13

932759R1

LOCK PIN,M12 x 45, Slotted

Cross, Start Serial: JJF1028064

2шт.

14

112446A1

LARGE PLATE

PLATE, LARGE SPRING

2шт.

15

606-12040

BOLT,Hex, M12 x 40mm, Cl 10.9

M12 x 40

2шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

17

1982161C1

ADJUSTMENT SCREW

M12

2шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

19

1960158C2

BOLT,M20-1 x 90mm

20 x 90 mm

2шт.

20

1960157C2

NUT

M20

2шт.

245028A1

SET OF PARTS

Heavy Duty, Includes: 21A, 23A

1шт.

21

854-20095

BOLT,Hvy Hex, M20 x 95mm, Cl 10.9

M20 x 95

8шт.

21a

854-20110

BOLT,Hvy Hex, M20 x 110mm, Cl 10.9

M20 x 110;10,9

8шт.

23

1348144C1

SUPPORT

2шт.

23a

231865A1

SUPPORT

1шт.

24

1960198C1

SEAL

2шт.

25

1960199C1

SEAL

2шт.

26

1960196C1

WASHER

PLATE

2шт.

27

95-32025

COPPER WASHER,1/4" x 1/2" x .049"

2шт.

28

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

M6 x 16

2шт.

29

1965579C5

LOWER LINK

96120, Not For Germany, Includes: 30

2шт.

30

B506203

WELDED END

SOCKET ASSY., 96120

1шт.

1974170C4

LOWER LINK

96120, Left, Includes: 31-37, 50

1шт.

1974171C4

LOWER LINK

96120, Right, Includes: 31-37, 50

1шт.

31

1974285C4

LOWER LINK

96120, Left

1шт.

31

1974286C4

LOWER LINK

96120, Right

1шт.

32

1974206C2

LATCH ASSY.

1шт.

33

1974207C1

SPRING

1шт.

34

1974208C1

LEVER

support

1шт.

35

30783R1

LOCK PIN,M6 x 28, Slotted

Roll

1шт.

36

905985R1

LOCK PIN,M13 x 45, Slotted

roll

1шт.

37

905984R1

LOCK PIN,M13 x 32, Slotted

roll

1шт.

3224232R1

BALL JOINT

RETAINER ASSY., 96120, Cat.: II, Includes: 38, 39A, 47A

2шт.

1537371C1

BALL JOINT

RETAINER ASSY., 96120 Cat.: II, Includes: 39, 47B

2шт.

38

3224240R1

BALL,20.7mm ID x 56mm OD

1шт.

39

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

39a

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

40

109616A1

LARGE PLATE

PLATE, LARGE BAR, 96120, Retainer (JJF1030035 - ), Start Serial: JJF1030035

2шт.

40

1965670C1

SPACER

96120 ( - JJF1030034), Serial Range: -JJF1030034

2шт.

41

1982014C1

LINCH PIN

2шт.

42

1252040C1

SPRING

SPACER ASSY.

1шт.

43

109617A2

HITCH PIN,28.6mm OD x 140mm L

ASSY.

2шт.

44

1531299C1

CABLE

96120, 5120, 5130, 5140, Serial Range: -JJF1023186

1шт.

44

1534794C1

ROPE

1800 mm, 96120, Start Serial: JJF1023187

1шт.

45

1531315C1

SUPPORT

96120 UK Only

1шт.

46

1348138C1

SPRING WASHER

rubber

2шт.

47a

3229790R2

LINCH PIN

1шт.

47b

1537373C1

LINCH PIN

1шт.

48

1534796C1

LOCK WASHER

96120, Serial Range: -JJF1023186

2шт.

49

1534682C1

LATCH HOOK

96120, 5120, 5130, 5140, Start Serial: JJF1023187

1шт.

50

1998125C1

DRAW HOOK

CLAW

1шт.

51

1974394C1

SPACER

2шт.
