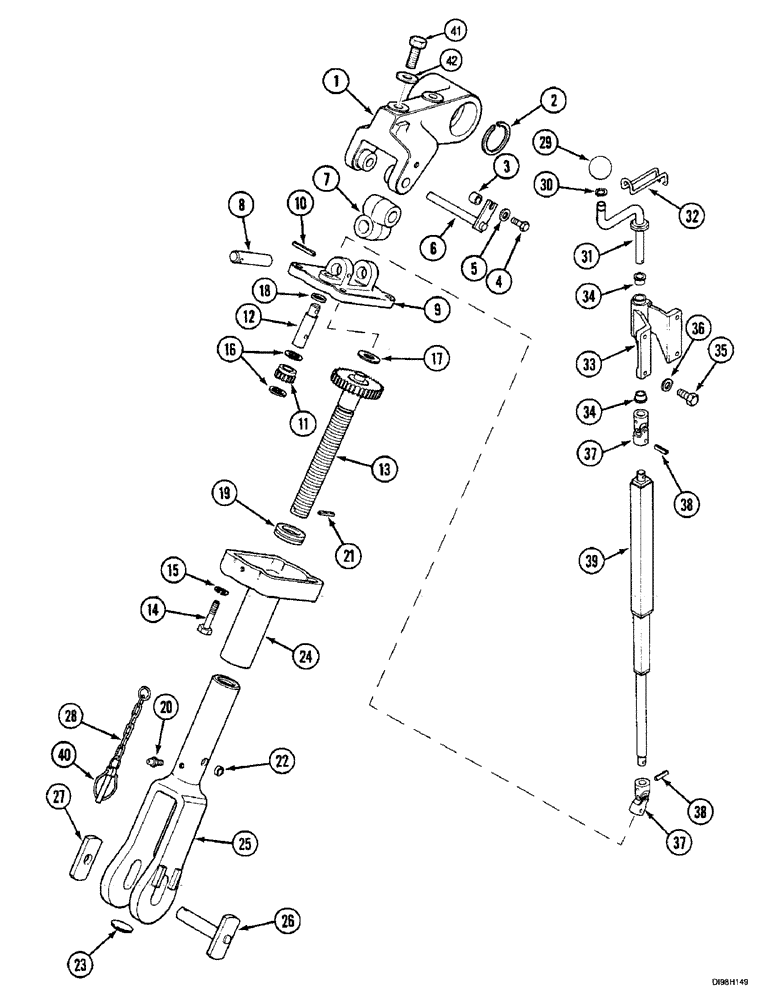

Запчасти Case IH 5150 (9G-024) - HITCH - LIFT LINK RIGHT WITH GEARBOX AND CONTROL (09) - CHASSIS/ATTACHMENTS

1

1974272C3

LOWER LINK

ARM rocker, 96120, Right

1шт.

2

101-11231

SNAP RING,#225, 2.174", Ext

1шт.

3

1331994C1

SPACER

1шт.

4

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

5

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

1шт.

6

1530823C1

PIN

ASSY.

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSY., 96120, With Gear, Consists Of: 7-27

1шт.

7

1965428C1

PIVOT

BRACKET, 96120, Right

1шт.

8

1965438C3

PIN,20mm OD x 88mm L

1шт.

9

1965441C3

COVER

1шт.

10

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm

1шт.

11

1965443C1

GEAR

1шт.

12

1965444C1

SHAFT

96120, Drive Gear

1шт.

13

1965435C1

SHAFT

1шт.

14

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

15

892-11012

LOCK WASHER,M12

4шт.

16

1965445C1

WASHER

2шт.

17

1965437C1

WASHER

1шт.

18

638-52140

O-RING

14 x 1.8 mm

1шт.

19

1965544C1

THRUST BEARING

thrust

1шт.

20

3229744R1

LUBE NIPPLE

2шт.

21

138-2002

PIN,3/16" x 1 1/4", Coiled

1шт.

22

1965426C1

PLUG

4шт.

23

1965377C1

PLUG

1шт.

24

1973999C1

BOX

1шт.

25

1998004C1

HOUSING

1шт.

26

1965397C1

PIN

ASSY.

1шт.

27

1965420C1

LARGE PLATE

PLATE, LARGE

1шт.

28

1982154C2

CHAIN,Assembly, Lift Link

1шт.

29

3399232R2

KNOB

1шт.

30

934177R1

CIRCLIP,Ext, M11

retaining

1шт.

31

T103809

CRANK

1шт.

32

T103814

SPRING

1шт.

33

1533058C2

SUPPORT ASSY.

96120, Includes: 34

1шт.

34

1533540C1

BUSHING,12mm ID x 14mm OD x 12mm L

BUSHING

2шт.

35

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

36

3402565R1

WASHER

4шт.

37

1531465C1

JOINT

coupling

2шт.

38

138-2031

PIN,3/16" x 7/8", Coiled

4шт.

39

T103831

ROD

1шт.

40

1982023C1

LINCH PIN,10.5mm OD

1шт.

41

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

42

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.
