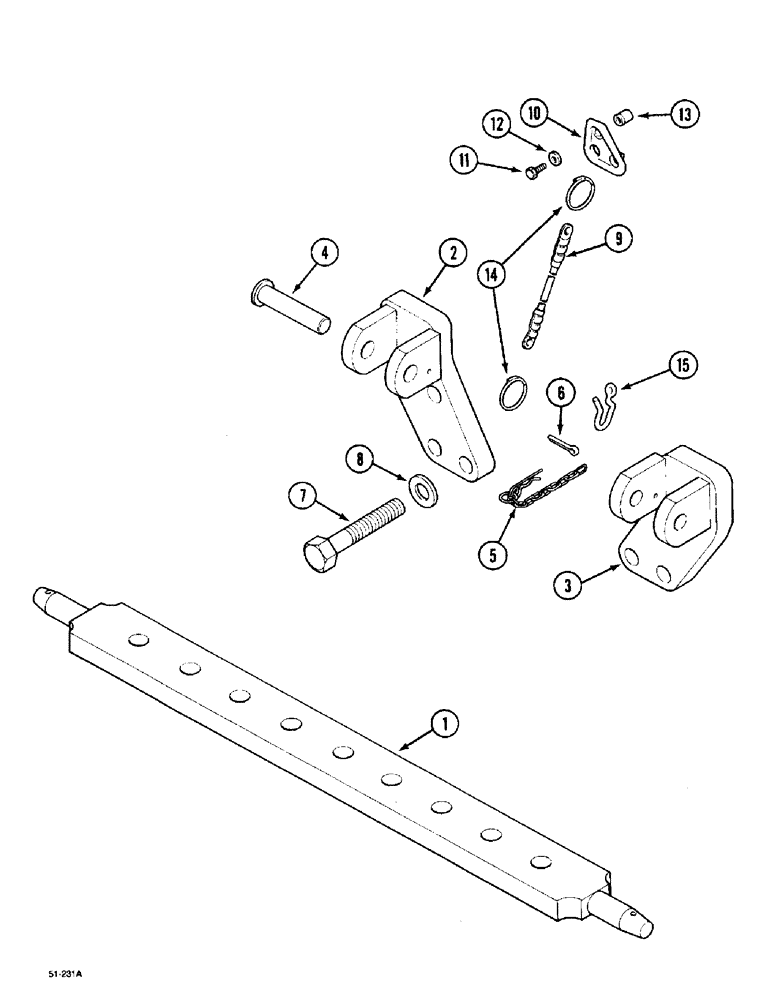

Запчасти Case IH 5150 (9G-022) - HITCH - CROSS DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

3140007R2

DRAWBAR,952mm L x 80mm W x 30mm Thk

90117, Short

1шт.

2

1965536C3

BRACKET

90117, Left

1шт.

3

1965537C3

BRACKET

90117, Right

1шт.

4

30375R1

PIN

20 x 100 mm

2шт.

5

1974209C1

CHAIN (AG)

2шт.

6

732-5032

COTTER PIN,M5 x 32

2шт.

7

828-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

M20 x 120; 10.9

8шт.

8

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

9

1531299C1

CABLE

90117, 5120, 5130, 5140, Serial Range: -JJF1023186

1шт.

9

1534794C1

ROPE

1800 mm, 90117, Start Serial: JJF1023187

1шт.

10

1531315C1

SUPPORT

1шт.

11

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

13

185532A1

INSERT

11 mm

1шт.

14

1534796C1

LOCK WASHER

90117, Start Serial: JJF1023187

2шт.

15

1534682C1

LATCH HOOK

90117, Start Serial: JJF1023187

1шт.
