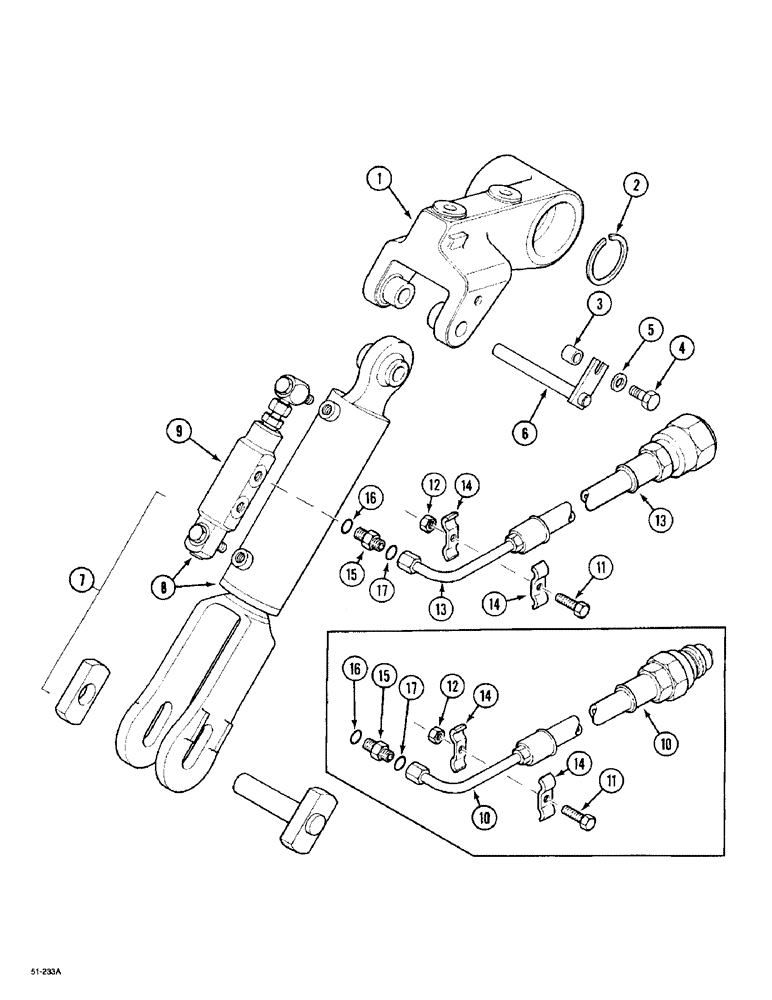

Запчасти Case IH 5150 (9G-020) - HITCH - LIFT LINK RIGHT, HYDRAULICALLY ADJUSTABLE (09) - CHASSIS/ATTACHMENTS

1

1974272C3

LOWER LINK

ARM rocker, 96133, Right

1шт.

2

101-11231

SNAP RING,#225, 2.174", Ext

1шт.

3

1331994C1

SPACER

1шт.

4

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

5

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

1шт.

6

1530823C1

PIN

ASSY.

1шт.

7

1998005C1

CYLINDER ASSY.

ROD, 86161, Includes: 8, 9

1шт.

8

1982033C1

CYLINDER ASSY.

1шт.

9

1982034C1

VALVE

control

1шт.

10

1531519C1

HOSE

800 mm (31-1/2 in), 86161 Coupling

2шт.

11

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

12

825-1406

NUT,M6, Cl 8

1шт.

13

1533522C1

HOSE

800 mm (31-1/2 in), 86161 Screw On Coupling

2шт.

14

1533527C1

FIXING BRACKET

CLAMP

2шт.

15

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

86161, Incl 16, 17

2шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
