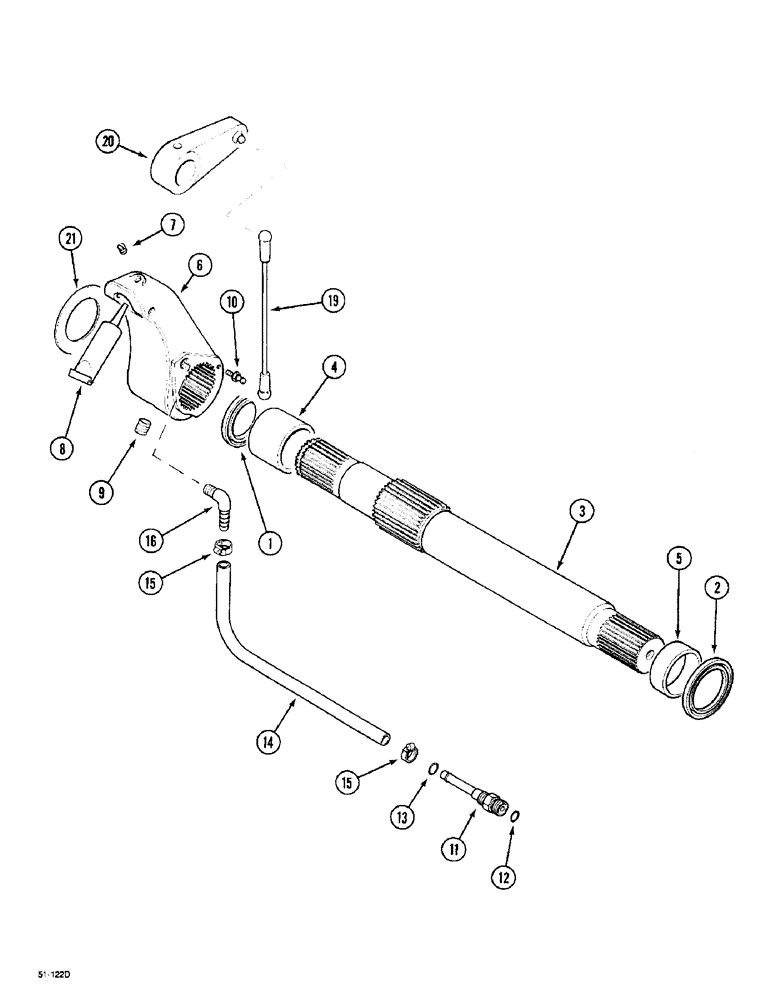

Запчасти Case IH 5150 (9G-019) - HITCH 3 POINT FRONT - ROCKSHAFT AND ARM (09) - CHASSIS/ATTACHMENTS

1

A178380

SEAL,60.25mm ID x 85.27mm OD x 6.73mm Thk

96120, Left

1шт.

2

A178381

SEAL

96120, Right

1шт.

3

A188605

ROCKSHAFT

1шт.

4

A188508

BUSHING,60.47mm ID x 66.79mm OD x 50.8mm L

96120, Left

1шт.

5

A188507

BUSHING,70.1mm ID x 76.33mm OD x 25.4mm L

96120, Right

1шт.

6

1345678C2

PITMAN ASSY.

ARM, 96120, Includes: 7

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG

1шт.

8

331-58

LUBRICANT

1 oz

1шт.

9

877-11212

SET SCREW,M12 x 12mm

2шт.

10

A188997

STUD

1шт.

11

A188287

ADAPTER

96120, Includes: 12, 13

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

A183568

HOSE,6.35mm ID x 381mm L

1шт.

15

3230683R1

CLAMP,M12-16, Worm

1/4 in

2шт.

16

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

elbow, 90 1/4 stem x PT

1шт.

19

1986766C2

ROD ASSY.

1шт.

20

REF

INSTRUCTION

LEVER, 96120, See Figure: 8-108

1шт.

21

107742A1

SPACER

SHIM adjusting 1 mm

1шт.

21

107743A1

SPACER

SHIM adjusting 2 mm

1шт.
