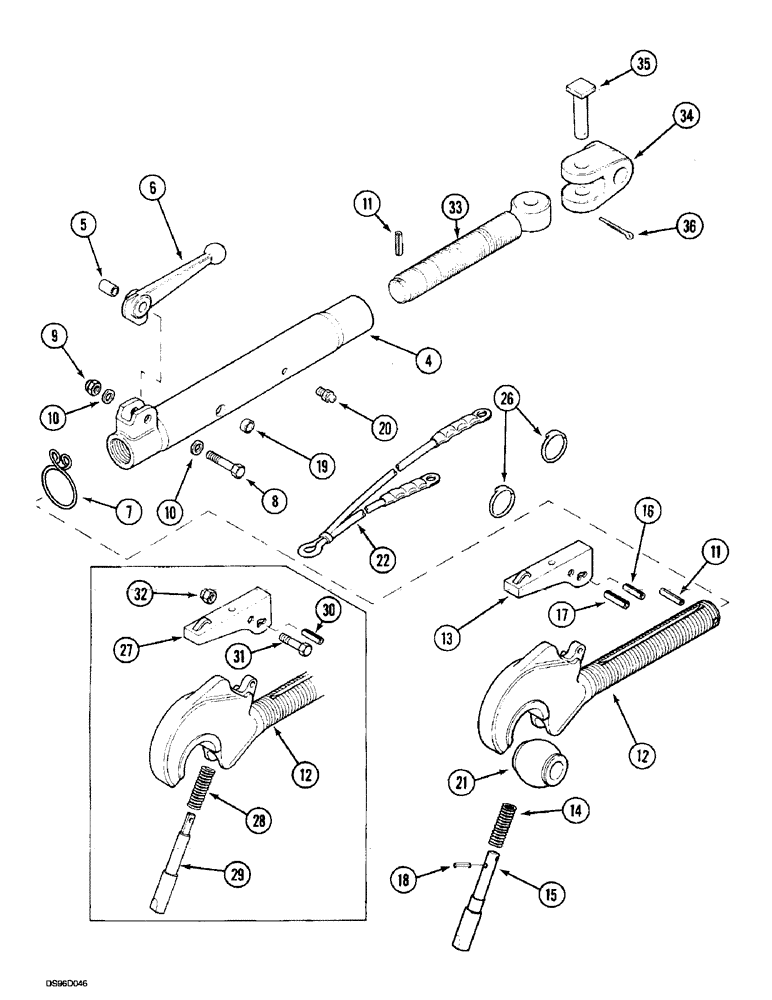

Запчасти Case IH 5150 (9G-012) - HITCH TOP LINK WITH CLAW END, C.B.M., (CAT 2), WITH SWIVEL (09) - CHASSIS/ATTACHMENTS

1348048C2

UPPER LINK

96120, Consists Of: 4-12, 19, 20, 23-36

1шт.

4

1965646C2

TURNBUCKLE

TENSIONER

1шт.

5

1965585C1

BUSHING

1шт.

6

1965587C1

LEVER

1шт.

7

1965586C1

SPRING

1шт.

8

828-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

9

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

2шт.

11

838-1632

LOCK PIN,6mm OD x 32mm L, Slotted

2шт.

1348053C2

DRAW HOOK

ASSY., 96120, Includes: 12-18

1шт.

12

NSS

NOT SOLD SEPARAT

HOOK, 96120, Order: 1348053C2

1шт.

13

118708A1

LEVER

1шт.

14

118705A1

SPRING

1шт.

15

118706A1

PIN

96120, 3 Step

1шт.

16

838-5624

LOCK PIN,M6 x 24, Slotted

1шт.

17

738-5524

LOCK PIN,M5 x 24, Slotted

Roll

1шт.

18

838-5620

LOCK PIN,M6 x 20, Slotted

1шт.

19

1965426C1

PLUG

3шт.

20

3229744R1

LUBE NIPPLE

1шт.

21

3141672R2

BALL JOINT

25.4 ID/50 OD

1шт.

22

1531298C1

ROPE

96120, 5120, 5130, 5140, Serial Range: -JJF10123186

3шт.

22

1534793C1

ROPE

1200 mm, 96120, Start Serial: JJF1023187

1шт.

26

1534796C1

LOCK WASHER

96120, Start Serial: JJF1023187

2шт.

27

1348135C1

LEVER

ASSY.

1шт.

28

1348136C1

SPRING

1шт.

29

1348137C1

PIN

110 mm, 96120, 2 Step

1шт.

30

31145R1

PIN,M5 x 28, Coiled

5 x 28 mm

1шт.

31

828-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9

M6 x 30; 10.9

1шт.

32

829-1306

NUT,M6, Cl 10

1шт.

33

1348051C2

TRUSS ROD,M36 x 3, LH Thread

ASSY., 96120 LH Thread

1шт.

34

1348049C1

PIVOT

1шт.

35

1348050C1

PIN,30mm OD x 81mm L

1шт.

36

732-5050

COTTER PIN,M5 x 50

1шт.
