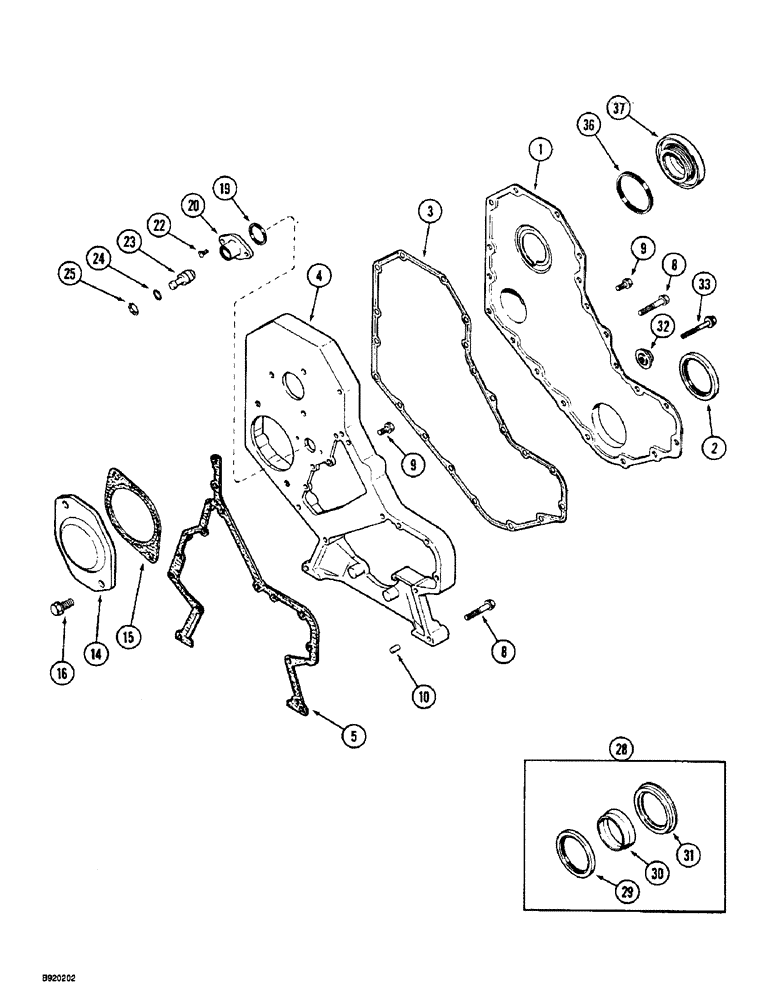

Запчасти Case IH 5150 (2-050) - CYLINDER BLOCK FRONT COVER (02) - ENGINE

1

J903794

COVER

20361 Front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, 20361 Front Order : J904353

1шт.

3

J914385

GASKET,1.02mm Thk

20361 Front

1шт.

4

J920518

HOUSING

1шт.

5

J916131

GASKET

1шт.

8

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

9

J924962

FLANGE BOLT

M8 x 16

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J914868

COVER

PLATE

1шт.

15

J931608

GASKET

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

19

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

20

J905933

HOUSING

1шт.

22

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

23

J903924

PIN,18.87mm OD x 55mm L

1шт.

24

J913994

O-RING

1шт.

25

J904849

SNAP RING,0.875", Int, #87

1шт.

28

J904353

GASKET KIT

20361 Consists Of: 29-31

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL oil, 20361 Front

1шт.

30

NSS

NOT SOLD SEPARAT

TOOL

1шт.

31

NSS

NOT SOLD SEPARAT

TOOL

1шт.

32

J912772

RETAINER

1шт.

33

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

36

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

37

J903463

PLUG,M63 x 5

1шт.
