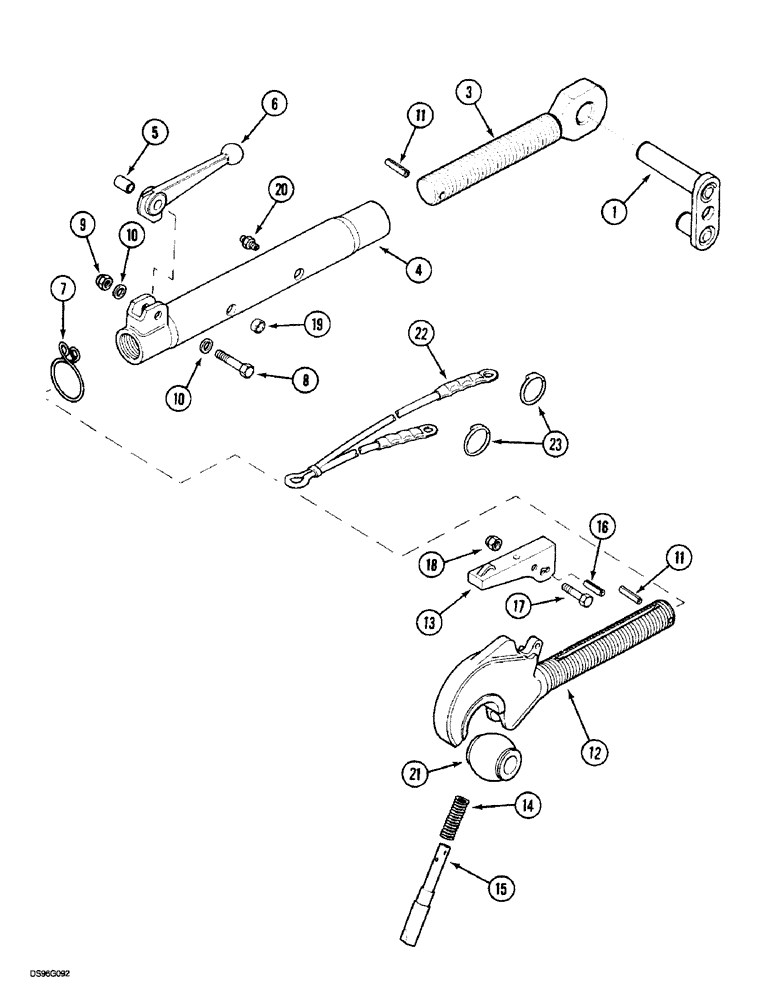

Запчасти Case IH 5150 (9G-010) - HITCH TOP LINK WITH CLAW END, C.B.M., (CAT 3) (09) - CHASSIS/ATTACHMENTS

1

1534498C3

HITCH PIN

ASSY.

1шт.

NSS

NOT SOLD SEPARAT

LINK upper, 96120, Consists Of: 3-20

1шт.

3

1348051C2

TRUSS ROD,M36 x 3, LH Thread

ASSY., 96120 LH Thread

1шт.

4

1965646C2

TURNBUCKLE

TENSIONER

1шт.

5

1965585C1

BUSHING

1шт.

6

1965587C1

LEVER

1шт.

7

1965586C1

SPRING

1шт.

8

828-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

9

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

10

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

11

31119R1

LOCK PIN,M5 x 36, Slotted

Roll

2шт.

12

1974000C3

HOOK

ASSY., 96120, Includes: 13-18

1шт.

13

1974001C1

LEVER

ASSY.

1шт.

14

1974002C1

SPRING

1шт.

15

118707A1

PIN

96120, 2 Step

1шт.

16

31145R1

PIN,M5 x 28, Coiled

5 x 28 mm

1шт.

17

828-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

1шт.

18

829-1308

NUT,M8, Cl 10

1шт.

19

1965426C1

PLUG

3шт.

20

3229744R1

LUBE NIPPLE

1шт.

21

231129A1

BALL JOINT

25.4 ID/60 OD

1шт.

21

132129A1

BALL JOINT

32 ID/60 OD

1шт.

22

1531298C1

ROPE

96120, Serial Range: -JJF1023186

3шт.

22

1534793C1

ROPE

1200 mm, 96120, Start Serial: JJF1023187

1шт.

23

1534796C1

LOCK WASHER

96120, Start Serial: JJF1023187

3шт.
