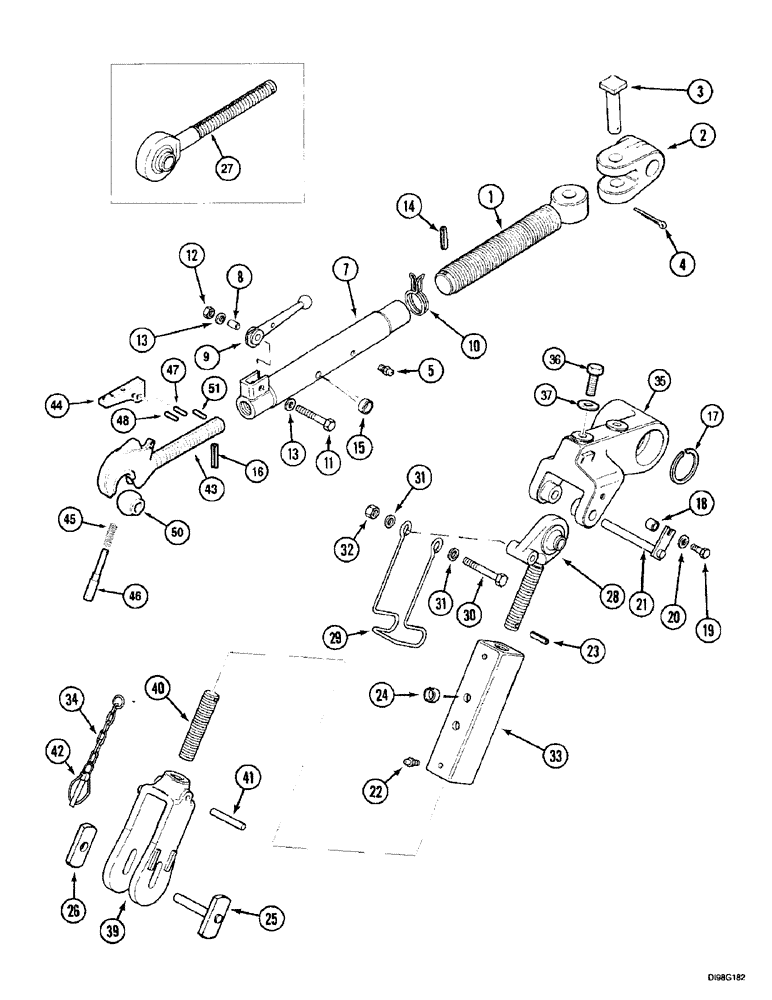

Запчасти Case IH 5150 (9G-006[01]) - HITCH - UPPER LIFT LINKS, BALL END TOP LINK, (WITH SWIVEL) (09) - CHASSIS/ATTACHMENTS

224072A1

UPPER LINK

Upper, 96120, Consists Of: 1-16, 43

1шт.

1348047C1

UPPER LINK

Upper, 96120, Consists Of : 1-4, 5A-13, 14A-16, 27

1шт.

311795A1

UPPER LINK

96120, Consists Of: 1-13, 14A, 15

1шт.

1

1348051C2

TRUSS ROD,M36 x 3, LH Thread

ASSY., 96120, LH Thread

1шт.

2

1348049C1

PIVOT

1шт.

3

1348050C1

PIN,30mm OD x 81mm L

1шт.

4

733-5040

COTTER PIN,M5 x 40

1шт.

5

1974039C1

FITTING

1шт.

5a

3229744R1

LUBE NIPPLE

1шт.

7

1965646C2

TURNBUCKLE

TENSIONER

1шт.

8

1965585C1

BUSHING

1шт.

9

1965587C1

LEVER

1шт.

10

1965586C1

SPRING

1шт.

11

828-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

13

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

14

31119R1

LOCK PIN,M5 x 36, Slotted

Roll

2шт.

14a

838-1536

LOCK PIN,5mm OD x 36mm L, Slotted

1шт.

15

1965426C1

PLUG

3шт.

16

31119R1

LOCK PIN,M5 x 36, Slotted

Roll

1шт.

17

101-11231

SNAP RING,#225, 2.174", Ext

2шт.

18

1331994C1

SPACER

2шт.

19

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

21

1530823C1

PIN

ASSY.

2шт.

NSS

NOT SOLD SEPARAT

ROD ASSY., 96120, Consists Of: 22-33

2шт.

22

3229744R1

LUBE NIPPLE

96120, Use: 1965393C2 & 1998001C1

2шт.

22

1974039C1

FITTING

96120, Use: 197185A1 & 197188A1

2шт.

23

138-2002

PIN,3/16" x 1 1/4", Coiled

2шт.

24

1965426C1

PLUG

4шт.

25

1965397C1

PIN

ASSY.

1шт.

26

1965420C1

LARGE PLATE

PLATE, LARGE

1шт.

27

1348052C1

END,M36 x 3

ROD ASSY., 96120, RH Thread ( - MAXXUM Pro)

1шт.

28

1965555C1

END,M30 x 2, LH Threads

ROD ASSY., 96120, Upper

1шт.

28

197186A1

ROD, ADJUSTMENT,M30 x 2, LH Threads

ROD, ADJUSTING ASSY., 96120, High Clearance Upper

1шт.

29

1965554C2

SPRING

1шт.

30

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

31

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

32

832-41312

NUT,M12 x 1.75, Cl 10

1шт.

33

1965392C3

TURNBUCKLE,M30 x 2

TENSIONER

1шт.

34

1982154C2

CHAIN,Assembly, Lift Link

2шт.

35

1974272C3

LOWER LINK

ARM rocker, 96133, Right

1шт.

35

1974271C3

LOWER LINK

ARM rocker, 96133, Left

1шт.

36

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

37

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

1965393C2

FORK,M30 x 2

ASSY., 51 mm, 96120, Consists Of: 39, 40A, 41, Serial Range: -JJF1011753

1шт.

1998001C1

FORK,M30 x 2

ASSY., 31 mm, 96120, Consists Of: 39, 40A, 41, Start Serial: JJF1011754

1шт.

197188A1

FORK

ASSY., 51 mm, 96120 For Tires: 28 - 38 in, Consists Of: 39, 40B, 41

1шт.

197185A1

FORK,M30 x 2

ASSY., 31 mm, 96120 For Tires: 28 - 38 in, Consists Of: 39, 40B, 41

1шт.

39

NSS

NOT SOLD SEPARAT

YOKE

1шт.

40a

1347994C1

ROD,THREADED

THREADED ROD SHAFT, 167 mm

1шт.

40b

197192A1

ROD,THREADED

THREADED ROD SHAFT, 213 mm

1шт.

41

838-3860

LOCK PIN,M8 x 60, Slotted

Roll

1шт.

42

1982023C1

LINCH PIN,10.5mm OD

2шт.

231131A1

DRAW HOOK

ASSY., 96120 (MAXXUM Pro - ), Includes: 43-49

1шт.

43

NSS

NOT SOLD SEPARAT

HOOK, 96120, Order: 231131A1

1шт.

44

118708A1

LEVER

1шт.

45

118705A1

SPRING

1шт.

46

118707A1

PIN

96120, 2 Step

1шт.

47

838-5624

LOCK PIN,M6 x 24, Slotted

1шт.

48

738-5524

LOCK PIN,M5 x 24, Slotted

Roll

1шт.

49

838-5620

LOCK PIN,M6 x 20, Slotted

1шт.

50

231129A1

BALL JOINT

25.4 ID/60 OD

1шт.

51

838-1632

LOCK PIN,6mm OD x 32mm L, Slotted

1шт.
