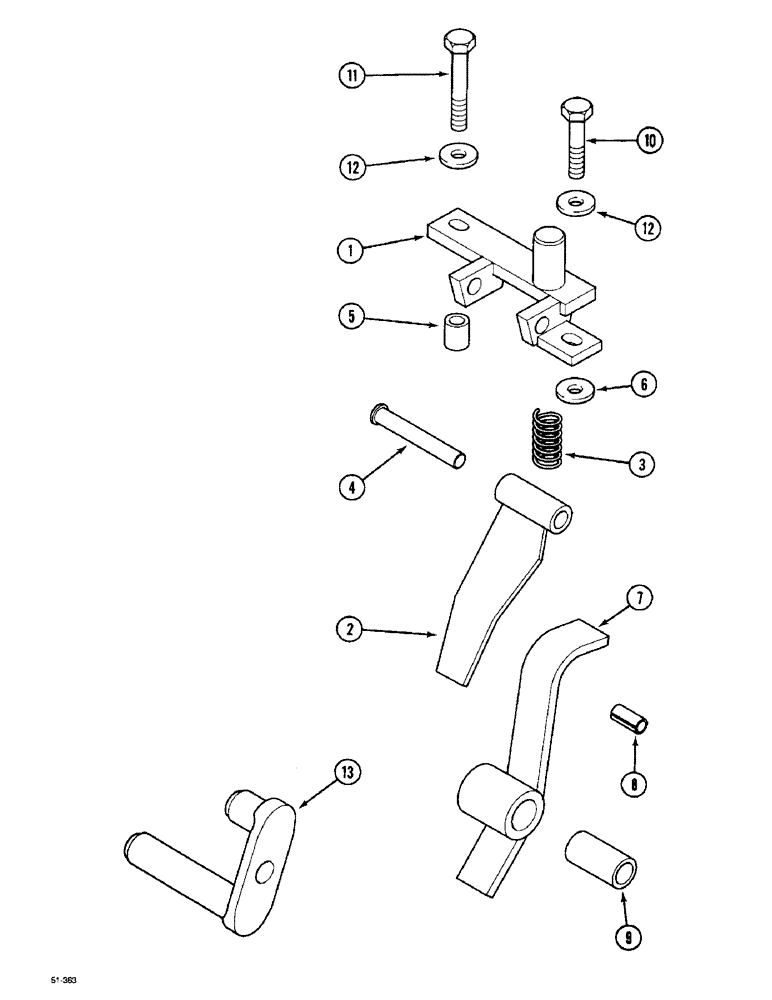

Запчасти Case IH 5150 (9G-004) - LINK UPPER - RESTRICTOR (09) - CHASSIS/ATTACHMENTS

1

1534449C1

SUPPORT ASSY.

1шт.

2

1534454C1

SUPPORT ASSY.

FLAP

1шт.

3

1534458C1

SPRING

1шт.

4

1534463C1

HEADED PIN

1шт.

5

1534459C1

BUSHING

1шт.

6

1534460C1

WASHER

1шт.

7

1534437C1

RETAINER

RESTRICTOR

1шт.

8

905979R1

LOCK PIN,M25 x 80, Slotted

25 x 80 mm

1шт.

9

A186978

BUSHING,25.7mm ID x 32.05mm OD x 25.5mm L

SLEEVE

1шт.

11

827-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

13

1534498C3

HITCH PIN

ASSY.

1шт.

10

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.
