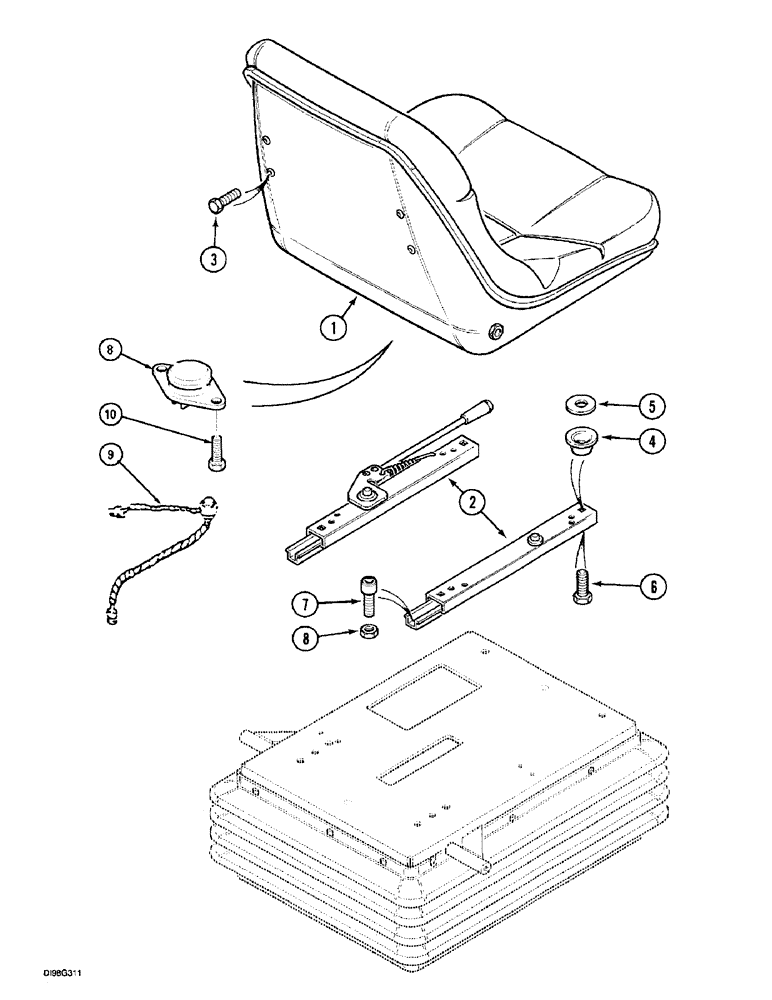

Запчасти Case IH 5150 (9F-48) - SEAT - WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

222396A1

SEAT ASSY.

90331, Vinyl, Includes: 1-6 , See Figure: 9F-24

1шт.

1

1981782C1

SEAT

1шт.

2

1981784C1

SET OF PARTS

service, 90331, Slide

1шт.

3

1343838C1

BOLT,Torx, 5/16" - 18 x 15.75mm, Gr 2

4шт.

4

700711545

CUP WASHER

WASHER Special 10 mm

4шт.

5

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

11/32 x 7/8 x 1/16

4шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

7

461-7318

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1/2"

5/16 x 1/2

4шт.

8

242306A2

SWITCH

90331, Operator Presence Safety Switch

1шт.

9

241205A1

HARNESS

90331, Operator Presence Safety Switch

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW, 1/4 x 5/8

2шт.
