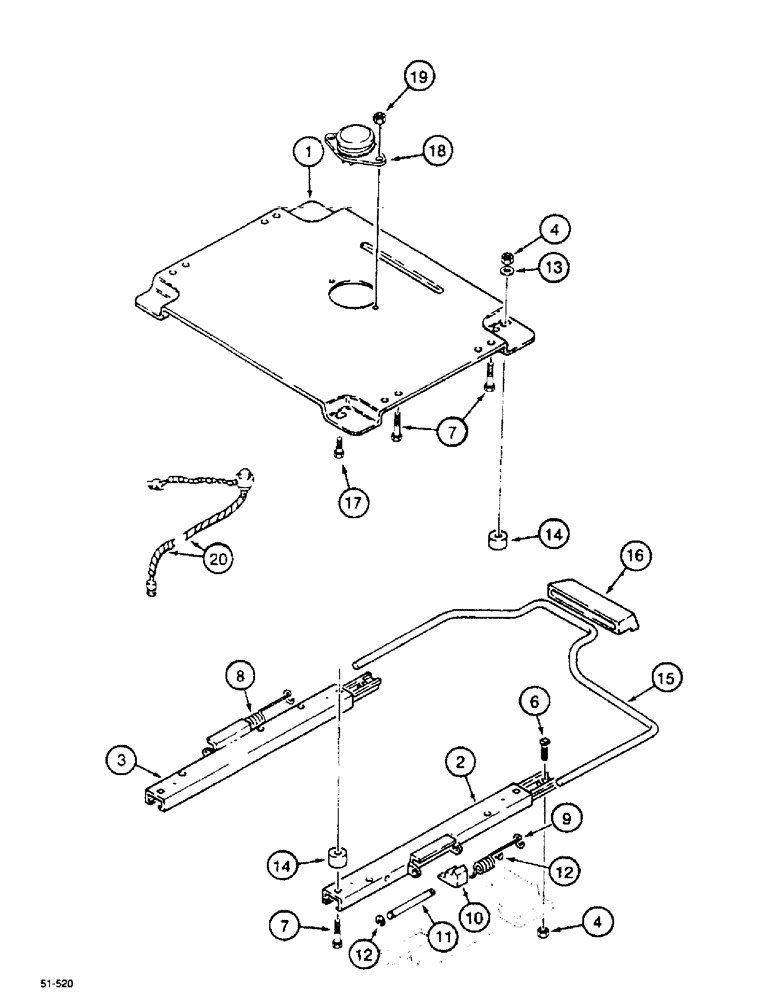

Запчасти Case IH 5150 (9F-40) - SEAT SUSPENSION - SEARS, SLIDE (09) - CHASSIS/ATTACHMENTS

180577A2

SEAT ASSY.

90331, Cloth Air Suspension, Includes: 1-19

1шт.

1

180583A2

LARGE PLATE

PLATE, LARGE

1шт.

132875A1

SLIDE

KIT, 90331, Slide Consists Of: 2-12

1шт.

2

NSS

NOT SOLD SEPARAT

SLIDE, 90331, Right

1шт.

3

NSS

NOT SOLD SEPARAT

SLIDE, 90331, Left

1шт.

4

230-4215

NUT,5/16"-18, GA

8шт.

6

117-107

BOLT

5/16 x 1-1/2; 2

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

8шт.

8

135513A1

SPRING

90331, Left

1шт.

9

135514A1

SPRING

90331, Right

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK

2шт.

11

NSS

NOT SOLD SEPARAT

PIN cross

2шт.

12

103-1131

SNAP RING,#31, Ext

4шт.

13

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

14

134144A1

SPACER

4шт.

15

180585A1

LEVER

1шт.

16

180587A1

HANDLE

90331, Air Suspension

1шт.

17

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

2шт.

18

242306A2

SWITCH

1шт.

19

NSS

NOT SOLD SEPARAT

NUT

2шт.

20

180601A1

WIRE HARNESS

1шт.
