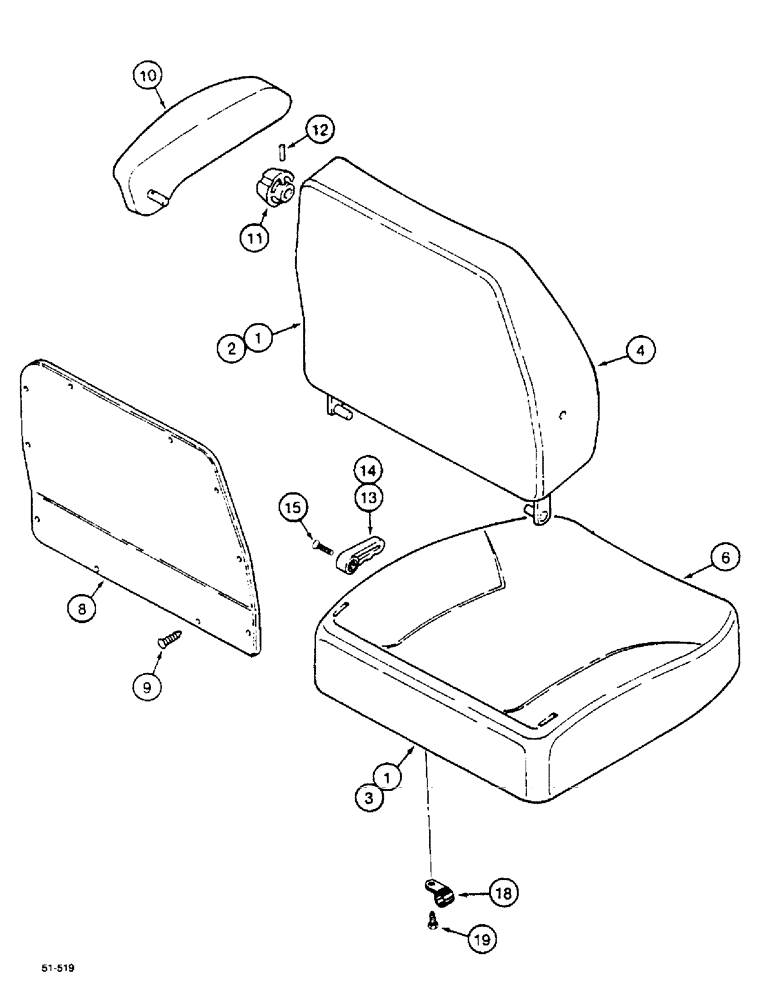

Запчасти Case IH 5150 (9F-38) - SEAT - SEARS, CUSHION AND BACKREST (09) - CHASSIS/ATTACHMENTS

180577A2

SEAT ASSY.

90331, Cloth Air Suspension, Includes: 1-19

1шт.

1

134181A2

PACKAGE

90331, Cushion And Backrest

1шт.

2

132886A1

BACKREST

90331, With Frame

1шт.

3

132888A2

PACKAGE

90331, Seat Frame

1шт.

132884A1

BACKREST

cushion, 90331, Includes: 4

1шт.

4

NSS

NOT SOLD SEPARAT

CUSHION, 90331, Seat With Rings

1шт.

223395A1

PACKAGE

90331, Includes: 6

1шт.

6

NSS

NOT SOLD SEPARAT

CUSHION, 90331, Backrest, Includes: 176091A1

1шт.

176091A1

PACKAGE,SERVICE

90331, Ring, Set Set Of: 50

1шт.

1974713C2

PACKAGE

90331, Includes: 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER sheet

1шт.

9

1999693C1

KIT

CLIP, 90331, Set Of: 12

10шт.

10

1981818C1

ARMREST

90331, Left

1шт.

1999691C1

PACKAGE,SERVICE

90331, Knobs, Includes: 11-15

1шт.

11

NSS

NOT SOLD SEPARAT

BUTTON, 90331, Lumbar

1шт.

12

138-2024

PIN,5/32" x 1", Coiled

2шт.

13

NSS

NOT SOLD SEPARAT

BUTTON, 90331, Backrest

1шт.

14

NSS

NOT SOLD SEPARAT

BUTTON, 90331, Recliner

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW

1шт.

18

NSS

NOT SOLD SEPARAT

BRACKET, 90331 Cable

1шт.

19

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

1шт.
