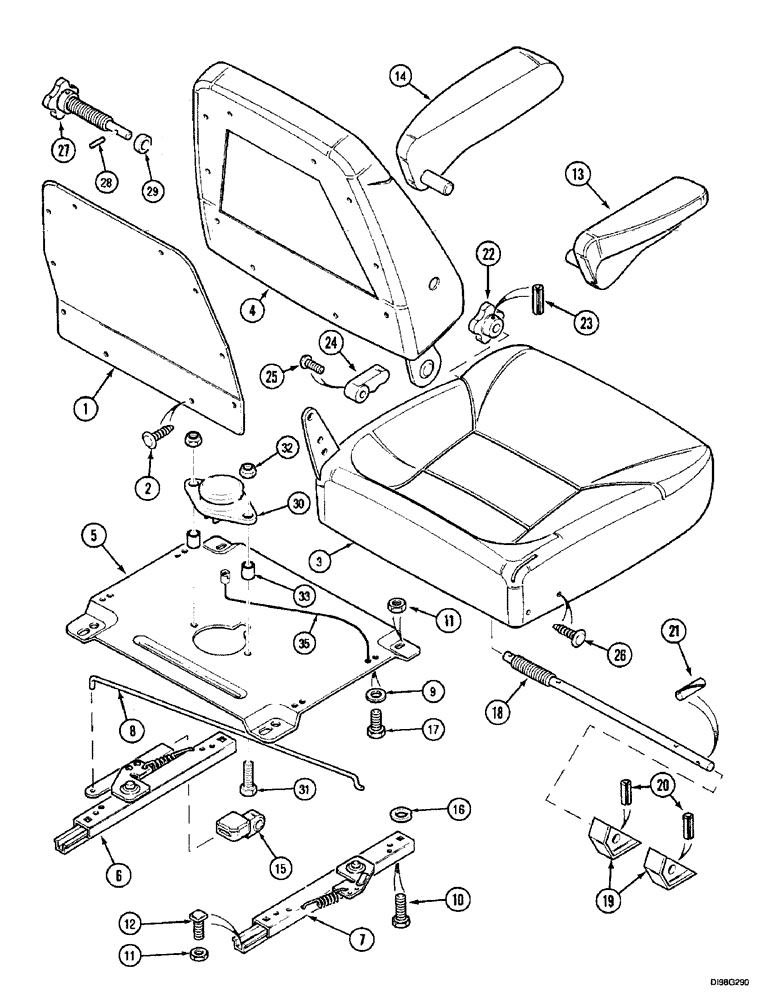

Запчасти Case IH 5150 (9F-34) - SEAT - SEARS, CLOTH (09) - CHASSIS/ATTACHMENTS

222393A1

SEAT ASSY.

90331, Mechanical Suspension, Includes: 1-34

1шт.

222394A1

SEAT ASSY.

SEAT ASSY., 90331, Air Suspension, Includes: 1-35

1шт.

222399A1

SEAT ASSY.

90331, For Sweden, Mechanical Suspension, Includes: 1-34

1шт.

222400A1

SEAT ASSY.

90331, For Sweden, Air Suspension, Includes: 1-35

1шт.

243700A1

SPARE PART SET

90331, Cushion, Consists Of: 1-4, 22-29

1шт.

1

1981820C2

PACKAGE, REPAIR

service, 90331, Includes: 2

1шт.

2

1999693C1

KIT

CLIP

10шт.

242321A1

CUSHION ASSY.

seat, 90331, Includes: 3, 22-26

1шт.

3

243701A1

CUSHION, SEAT

1шт.

127369A1

BACKREST COVER

KIT, 90331, Includes: 4, 27-29

1шт.

4

1981816C2

PACKAGE,SERVICE

BACKREST

1шт.

176091A1

PACKAGE,SERVICE

KIT, 90331, Rings: 50

1шт.

5

182991A1

LARGE PLATE

PLATE, LARGE ASSY.

1шт.

1344248C1

SLIDE

KIT, 90331, Consists Of: 6-12

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE, 90331, With Handle, Order: 1344248C1

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE, 90331, Order: 1344248C1

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE, 90331, Order: 1344248C1

1шт.

9

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

11

231-4215

LOCK NUT,5/16"-18, GB

8шт.

12

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

13

1981931C1

ARMREST ASSY.

90331, Right

1шт.

14

1981818C1

ARMREST

90331, Left

1шт.

1999691C1

PACKAGE,SERVICE

90331, Consists Of: 15, 20, 22, 24, 25, 27

1шт.

15

NSS

NOT SOLD SEPARAT

KNOB, 90331, Fore And Aft, Order: 1999691C1

1шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

17

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

1343826C2

SHAFT ASSY.

KIT, 90331, Tilt, Consists Of: 18-21

1шт.

18

1343827C1

CAMSHAFT

1шт.

19

NSS

NOT SOLD SEPARAT

CAM, 90331, Order: 1343826C2

2шт.

20

38-31016

PIN,5/32" x 1", Coiled

2шт.

21

38-21020

PIN,5/32" x 1 1/4", Coiled

5/32" x 1 1/4", Coiled

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB, 90331, Seat Tilt, Order: 1999691C1

1шт.

23

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB, 90331, Backrest Tilt, Order: 1999691C1

1шт.

25

942-1612

SCREW,Oval CSK, M6 x 12mm, Cl 4.8

M6 x 12:4.8

1шт.

26

1999693C1

KIT

CLIP

10шт.

27

NSS

NOT SOLD SEPARAT

KNOB, 90331, Lumbar, Order: 127369A1

1шт.

28

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER rubber

1шт.

30

242306A2

SWITCH

90331, Operator Presence Safety Switch

1шт.

31

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

2шт.

32

230-4215

NUT,5/16"-18, GA

2шт.

33

241203A1

SPACER

2шт.

35

241211A1

HARNESS

90331, Air Suspension Operator Presence Safety Switch

1шт.
