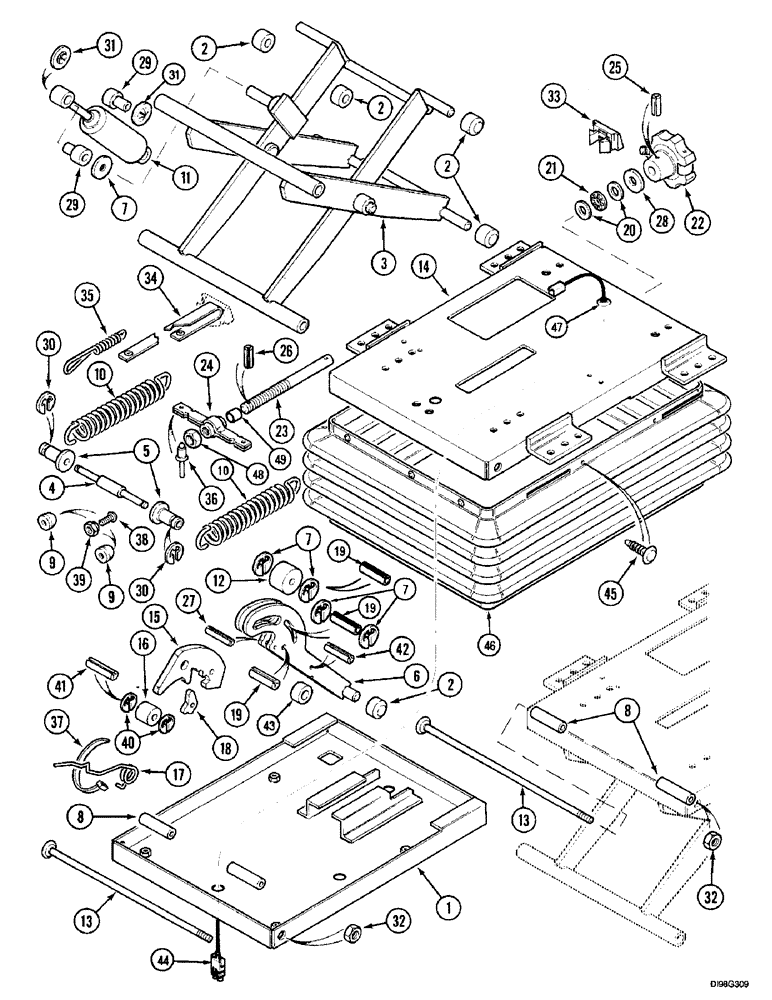

Запчасти Case IH 5150 (9F-24) - MECHANICAL SUSPENSION, STANDARD FOR CAB MACHINES - DELUXE FOR NON-CAB (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

SEAT ASSY., 90331, See Figure: 9F-30

1шт.

241190A1

PACKAGE

service, 90331, Version With Cab, Consists Of: 1-47

1шт.

241194A1

PACKAGE

service, 90331, Version With Platform, Consists Of: 1 13, 14A, 15-47

1шт.

1

241193A1

HOUSING

90331, Lower

1шт.

2

NSS

NOT SOLD SEPARAT

ROLLER, 90331, Order: 1344249C1

6шт.

3

1981789C2

SUPPORT

ARM ASSY.

1шт.

4

128115A1

SHAFT

1шт.

5

NSS

NOT SOLD SEPARAT

DOWEL, 90331, Order: 123968A2

2шт.

6

119001A1

ARMREST ASSY.

1шт.

7

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

8

A47760

BUSHING

4шт.

180609A1

PACKAGE

90331, Consists Of: 9, 38, 39

1шт.

9

1981793C1

BUMPER

2шт.

10

1981794C1

SPRING

2шт.

11

NSS

NOT SOLD SEPARAT

SHOCK ABSORBER, 90331, Order: 1344250C2

1шт.

11

1344456C2

SHOCK ABSORBER

90331, For Sweden

1шт.

12

NSS

NOT SOLD SEPARAT

FOLLOWER cam, 90331, Order: 123967A1

1шт.

13

A49529

SHAFT

2шт.

14

241192A1

HOUSING

ASSY., 90331, Upper Version With Cab

1шт.

14a

241195A1

HOUSING

ASSY., 90331, Upper Version With Platform

1шт.

15

1981798C1

CAM

90331, Order: 123967A1

1шт.

16

NSS

NOT SOLD SEPARAT

FOLLOWER cam, 90331, Order: 123967A1

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING, 90331, Order: 123966A1

1шт.

18

1981801C1

LATCH

1шт.

19

NSS

NOT SOLD SEPARAT

PIN roll, 3/8 x 1-1/4

2шт.

20

1981802C1

WASHER, THRUST

RACE

2шт.

21

F13537

THRUST BEARING

thrust

1шт.

123969A1

SEAT ACCESSORY

Rod Assy, 90331, Consists of 22, 23, 25

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

24

1981806C1

BRACKET

BAR ASSY.

1шт.

25

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

26

38-11010

LOCK PIN,5/32" x 5/8", Slotted

5/32" x 5/8", Slotted

1шт.

27

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

28

1974732C1

WASHER

1шт.

29

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

2шт.

30

A49623

RING, SNAP

RING SNAP retaining

2шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

2шт.

32

231-4206

LOCK NUT,Hex, 3/8"-16, GB

2шт.

1999901C2

PACKAGE

90331, Consists Of: 33-36

1шт.

33

1981807C1

GUIDE

1шт.

34

1981808C1

TAPE

1шт.

35

1981809C1

SPRING

1шт.

36

151-537

RIVET,Pop, 1/8" x .650"

1/8 x 5/8

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

38

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

2шт.

39

230-42409

NUT,#10-24, GA

lock No. 10

2шт.

40

NSS

NOT SOLD SEPARAT

RING retaining

2шт.

41

NSS

NOT SOLD SEPARAT

PIN

1шт.

42

38-31212

PIN,3/16" x 3/4", Coiled

1шт.

43

NSS

NOT SOLD SEPARAT

SPACER

1шт.

44

241205A1

HARNESS

HARNESS

1шт.

45

132872A1

KIT

1шт.

46

NSS

NOT SOLD SEPARAT

90331, Order: 241190A1

1шт.

47

NSS

NOT SOLD SEPARAT

GROMMET, 90331, Order: 241190A1

1шт.

48

NSS

NOT SOLD SEPARAT

NUT

1шт.

49

NSS

NOT SOLD SEPARAT

SPACER

1шт.

123966A1

PACKAGE

90331, Height Adjustment, Consists Of: 17, 37, 42, 43

1шт.

123967A1

PACKAGE

90331, Consists Of: 7, 12, 16, 19, 40, 41

1шт.

1344249C1

KIT

90331, Roller Consists Of: 2, 7, 8, 29, 31

1шт.

1987116C2

PACKAGE

90331, Weight Adjuster, Consists Of: 20, 21, 24, 26, 28, 48, 49

1шт.

1344250C2

KIT

90331, Shock Absorber, Consists Of: 7, 11, 29, 31

1шт.

123968A2

PACKAGE

90331, Weight Adjuster, Consists Of: 5, 10, 30

1шт.
