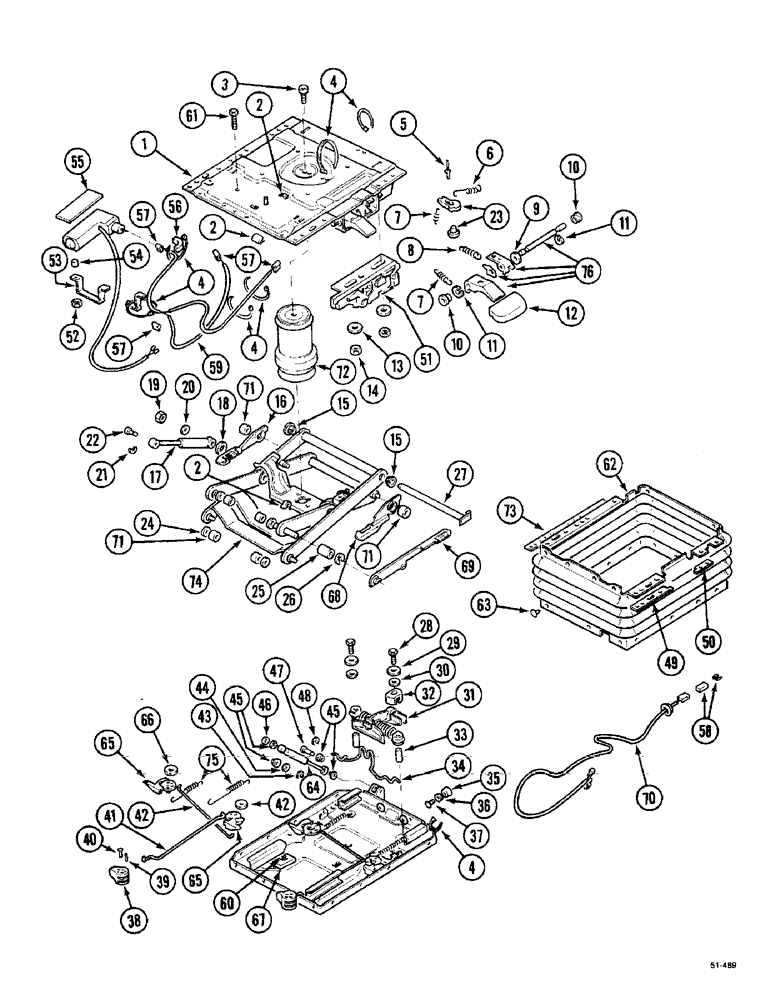

Запчасти Case IH 5150 (9F-18) - AIR SUSPENSION - GRAMMER (09) - CHASSIS/ATTACHMENTS

130754A1

SUSPENSION

ASSY., 90331 Includes: 1-76

1шт.

1

130895A1

SUSPENSION

90331, Upper, Includes: 2, 4, 6, 23 And 130897A1

1шт.

2

NSS

NOT SOLD SEPARAT

COLLAR, 90331

2шт.

3

NSS

NOT SOLD SEPARAT

SCREW, 90331

1шт.

4

NSS

NOT SOLD SEPARAT

STRAP cable, 90331

7шт.

5

NSS

NOT SOLD SEPARAT

SCREW, 90331

1шт.

130896A1

STOP

LOCK ASSY., 90331, Includes: 6,7,10,11,12,58

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING, 90331

1шт.

130897A1

SLIDER

SUPPORT ASSY., 90331, Includes: 7-12, 76

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING, 90331

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING, 90331

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER, 90331

1шт.

10

NSS

NOT SOLD SEPARAT

DOWEL, 90331

2шт.

11

NSS

NOT SOLD SEPARAT

RING retianing, 90331

2шт.

12

NSS

NOT SOLD SEPARAT

HANDLE ASSY., 90331

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, 90331

2шт.

14

NSS

NOT SOLD SEPARAT

NUT, 90331

2шт.

15

K262109

BUSHING

DOWEL, 90331

2шт.

16

NSS

NOT SOLD SEPARAT

DOWEL, 90331

1шт.

17

130901A1

SHOCK ABSORBER

90331, Includes: 18-22

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER, 90331

1шт.

19

NSS

NOT SOLD SEPARAT

NUT, 90331

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER, 90331

1шт.

21

NSS

NOT SOLD SEPARAT

RING retaining, 90331

1шт.

22

NSS

NOT SOLD SEPARAT

RIVET, 90331

1шт.

23

NSS

NOT SOLD SEPARAT

PIVOT, 90331

1шт.

24

B501769

RING

90331

4шт.

25

NSS

NOT SOLD SEPARAT

SPACER ASSY., 90331

1шт.

26

B501811

CIRCLIP

90331

1шт.

27

K262111

LARGE PIN

PIN, LARGE cross, 90331

1шт.

28

NSS

NOT SOLD SEPARAT

SCREW, 90331

2шт.

29

NSS

NOT SOLD SEPARAT

WASHER, 90331

2шт.

30

NSS

NOT SOLD SEPARAT

WASHER, 90331

2шт.

31

NSS

NOT SOLD SEPARAT

ISOLATOR, 90331, Order : 130905A1

1шт.

32

NSS

NOT SOLD SEPARAT

COVER, 90331

1шт.

33

NSS

NOT SOLD SEPARAT

SPACER ASSY., 90331

2шт.

34

NSS

NOT SOLD SEPARAT

WIRE, 90331

1шт.

35

NSS

NOT SOLD SEPARAT

BUMPER, 90331, Includes: 36,37

2шт.

36

NSS

NOT SOLD SEPARAT

WASHER, 90331

1шт.

37

NSS

NOT SOLD SEPARAT

SCREW, 90331

1шт.

38

B506228

BUTTON

90331, Includes: 39,40

1шт.

39

NSS

NOT SOLD SEPARAT

PIN cross, 90331

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW, 90331

1шт.

41

NSS

NOT SOLD SEPARAT

WIRE, 90331

1шт.

42

NSS

NOT SOLD SEPARAT

WIRE, 90331

1шт.

43

NSS

NOT SOLD SEPARAT

RING retaining, 90331

1шт.

44

NSS

NOT SOLD SEPARAT

WASHER, 90331

1шт.

45

NSS

NOT SOLD SEPARAT

CAP, 90331

4шт.

46

NSS

NOT SOLD SEPARAT

WASHER, 90331

1шт.

47

NSS

NOT SOLD SEPARAT

PIN cross, 90331

1шт.

48

NSS

NOT SOLD SEPARAT

RING retaining, 90331

1шт.

49

NSS

NOT SOLD SEPARAT

BAR, 90331

1шт.

50

NSS

NOT SOLD SEPARAT

BAR, 90331

1шт.

51

NSS

NOT SOLD SEPARAT

SLIDE, 90331, Order: 130898A1

2шт.

130900A1

COMPRESSOR

90331, Includes: 52-55, 59

1шт.

52

NSS

NOT SOLD SEPARAT

NUT, 90331

1шт.

53

NSS

NOT SOLD SEPARAT

SUPPORT, 90331

1шт.

54

NSS

NOT SOLD SEPARAT

DOWEL, 90331

1шт.

55

NSS

NOT SOLD SEPARAT

PLATE, 90331

1шт.

56

NSS

NOT SOLD SEPARAT

GUIDE, 90331

1шт.

57

B501787

TERMINAL

CONNECTOR, 90331

6шт.

58

NSS

NOT SOLD SEPARAT

CONNECTOR Terminal, 90331

1шт.

59

B506219

HOSE

HARNESS, 90331 Includes: 56, 57

1шт.

60

NSS

NOT SOLD SEPARAT

BUMPER, 90331

1шт.

61

NSS

NOT SOLD SEPARAT

SCREW, 90331

1шт.

62

130904A1

BELLOWS

BOOT, 90331, Includes: 12, 49, 50, 63, 73

1шт.

63

3225292R1

PLUG

RETAINER, 90331

25шт.

64

130906A1

SHOCK ABSORBER

90331 Includes: 45-48

1шт.

65

NSS

NOT SOLD SEPARAT

LOCK, 90331

2шт.

66

NSS

NOT SOLD SEPARAT

WASHER, 90331

2шт.

67

130909A1

BUMPER

BUMPER, 90331

1шт.

68

NSS

NOT SOLD SEPARAT

HANDLE ASSY., 90331

1шт.

69

130903A1

SLIDE

CAM ASSY., 90331, Includes: 2, 3, 4, 12, 25, 26, 27, 47, 48, 63

1шт.

70

130910A1

HARNESS

ASSY., 90331, Includes: 4, 12, 63

1шт.

71

B501770

BEARING, NEEDLE

90331

6шт.

72

130899A1

CYLINDER

DAMPER ASSY., 90331, Includes: 3, 4, 12, 27, 47, 48, 57, 63

1шт.

73

NSS

NOT SOLD SEPARAT

BAR, 90331

1шт.

74

NSS

NOT SOLD SEPARAT

SUPPORT, 90331

1шт.

75

NSS

NOT SOLD SEPARAT

SPRING, 90331

2шт.

76

130897A1

SLIDER

SUPPORT ASSY., 90331

1шт.

130898A1

SUPPORT ASSY.

SLIDE, 90331, Includes: 2, 3, 4, 7, 12, 13, 14, 27, 47, 48, 51, 57, 63, 69

1шт.

130902A1

SUPPORT ASSY.

90331, Includes: 2, 4, 13-16,18-20, 25, 26, 68, 71, 74

1шт.

130905A1

SUPPORT ASSY.

90331, Isolator, Includes: 28-35, 63, 64

1шт.

130907A1

SUPPORT

LOCK ASSY., 90331, Includes: 38, 41, 42, 63, 65, 66, 75

2шт.

130908A1

SUSPENSION

90331, Lower, Includes: 4, 34, 37

1шт.
