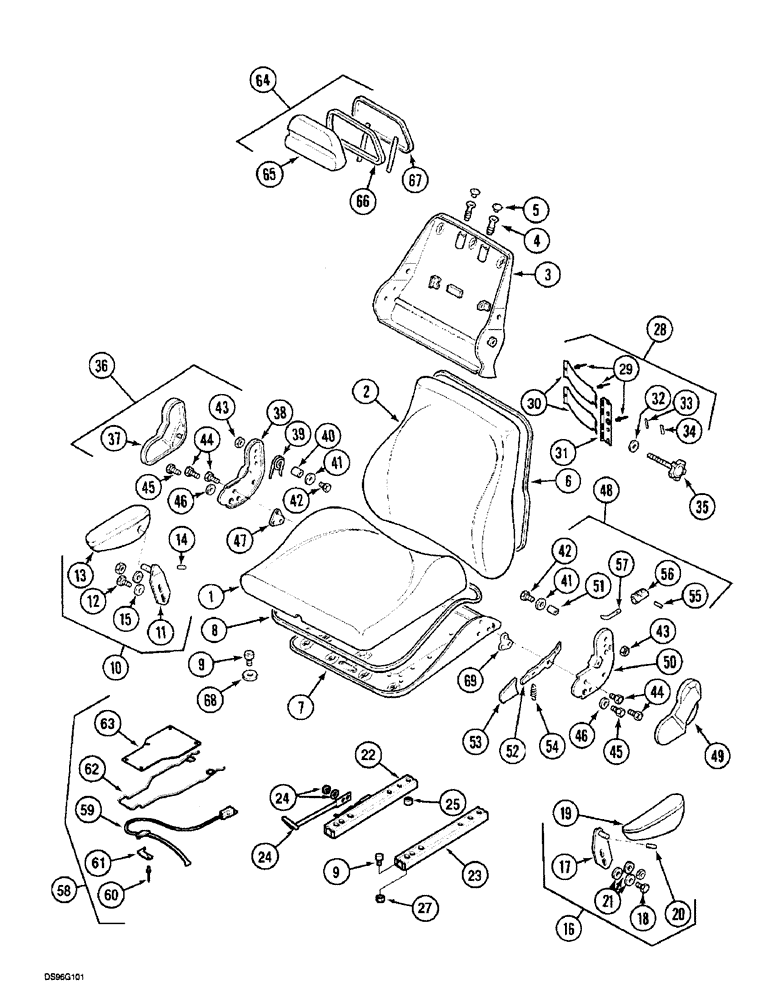

Запчасти Case IH 5150 (9F-08) - SEAT - GRAMMER, (JJF1057368 - ) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
251784A1
SEAT
ASSY., 90331, Mechanical Suspension, Consists Of: 1-69
1шт.
251785A1
SEAT
ASSY., 90331, Air Suspension, Consists Of: 1-63
1шт.
1
242046A1
CUSHION, SEAT
90331 ( - Maxxum Pro)
1шт.
1
251999A1
CUSHION, SEAT
90331 (Maxxum Pro - )
1шт.
2
127704A1
BACKREST
90331 ( - Maxxum Pro)
1шт.
2
252000A1
BACKREST
90331 (Maxxum Pro - )
1шт.
3
130712A1
BACKREST
90331 Includes : 4, 5, 6
1шт.
4
NSS
NOT SOLD SEPARAT
PLUG
2шт.
5
NSS
NOT SOLD SEPARAT
CAP
2шт.
6
NSS
NOT SOLD SEPARAT
FORK, CLAM
1шт.
7
242047A1
LARGE PLATE
PLATE, LARGE 90331 Seat
1шт.
8
NSS
NOT SOLD SEPARAT
SEAL
1шт.
9
130725A1
SCREW,M8 x 1.25 x 20mm, Cl 8.8
M8 x 20; 8.8, 90331, Mechanical Suspension
8шт.
9
130725A1
SCREW,M8 x 1.25 x 20mm, Cl 8.8
M8 x 20; 8.8, 90331, Air Suspension
7шт.
10
130716A1
ARMREST ASSY.
90331, Right, Includes: 11-15
1шт.
11
NSS
NOT SOLD SEPARAT
PLATE
1шт.
12
NSS
NOT SOLD SEPARAT
SCREW
1шт.
13
NSS
NOT SOLD SEPARAT
ARMREST
1шт.
14
NSS
NOT SOLD SEPARAT
PIN cross
1шт.
15
NSS
NOT SOLD SEPARAT
WASHER
2шт.
16
130718A1
ARMREST ASSY.
90331, Left, Includes: 17-21
1шт.
17
NSS
NOT SOLD SEPARAT
PLATE
1шт.
18
NSS
NOT SOLD SEPARAT
SCREW
1шт.
19
NSS
NOT SOLD SEPARAT
ARMREST
1шт.
20
NSS
NOT SOLD SEPARAT
PIN cross
1шт.
21
NSS
NOT SOLD SEPARAT
WASHER
3шт.
22
242049A1
GUIDE
90331, Right
1шт.
23
242048A1
GUIDE
90331, Left, Includes: 24
1шт.
24
242053A1
HANDLE
ASSY.
1шт.
25
242050A1
SPACER
BUSHING, 90331, Air Suspension
4шт.
27
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
90331, Mechanical Suspension
4шт.
27
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
90331, Air Suspension
8шт.
28
130714A1
SUPPORT ASSY.
90331, Includes: 29-35
1шт.
29
NSS
NOT SOLD SEPARAT
RIVET
2шт.
30
NSS
NOT SOLD SEPARAT
PLATE
2шт.
31
NSS
NOT SOLD SEPARAT
CAM
1шт.
32
NSS
NOT SOLD SEPARAT
WASHER
1шт.
33
NSS
NOT SOLD SEPARAT
PIN cross
1шт.
34
NSS
NOT SOLD SEPARAT
PIN cross
1шт.
35
NSS
NOT SOLD SEPARAT
CAMSHAFT
1шт.
36
130715A1
SUPPORT ASSY.
90331, Right, Includes: 37-47
1шт.
37
NSS
NOT SOLD SEPARAT
COVER sheet
1шт.
38
NSS
NOT SOLD SEPARAT
SUPPORT
1шт.
39
NSS
NOT SOLD SEPARAT
SPRING
1шт.
40
NSS
NOT SOLD SEPARAT
SPACER ASSY.
1шт.
41
NSS
NOT SOLD SEPARAT
WASHER
1шт.
42
NSS
NOT SOLD SEPARAT
SCREW
2шт.
43
NSS
NOT SOLD SEPARAT
NUT
1шт.
44
NSS
NOT SOLD SEPARAT
SCREW
4шт.
45
NSS
NOT SOLD SEPARAT
SCREW
2шт.
46
NSS
NOT SOLD SEPARAT
WASHER
2шт.
47
NSS
NOT SOLD SEPARAT
PLATE
1шт.
48
130717A1
SUPPORT ASSY.
90331, Left, Consists Of: 41-47, 49-58, 69
1шт.
49
NSS
NOT SOLD SEPARAT
COVER sheet
1шт.
50
NSS
NOT SOLD SEPARAT
SUPPORT
1шт.
51
NSS
NOT SOLD SEPARAT
SPACER ASSY.
1шт.
ARM ASSY., 90331, Includes: 52, 53, 54
1шт.
52
ARM
1шт.
53
NSS
NOT SOLD SEPARAT
BUTTON
1шт.
54
NSS
NOT SOLD SEPARAT
SPRING
1шт.
55
NSS
NOT SOLD SEPARAT
PIN cross
1шт.
56
NSS
NOT SOLD SEPARAT
RATCHET
1шт.
57
NSS
NOT SOLD SEPARAT
ROD connecting
1шт.
58
242051A1
SWITCH ASSY
ASSY., 90331, Includes: 59-63
1шт.
59
242052A1
SWITCH
1шт.
60
NSS
NOT SOLD SEPARAT
RIVET
2шт.
61
NSS
NOT SOLD SEPARAT
BRACKET
1шт.
62
NSS
NOT SOLD SEPARAT
BAR ASSY.
1шт.
63
NSS
NOT SOLD SEPARAT
PLATE
1шт.
64
132837A1
SEAT HEADREST
HEADREST, 90331 ( - Maxxum Pro) Includes: 65, 66, 67
1шт.
65
NSS
NOT SOLD SEPARAT
CUSHION
1шт.
66
NSS
NOT SOLD SEPARAT
FORK CLAM
1шт.
67
NSS
NOT SOLD SEPARAT
FRAME
1шт.
64
251066A1
HEADREST, SEAT
HEADREST 90331 (Maxxum Pro - ) Includes: 65, 66, 67
1шт.
65
NSS
NOT SOLD SEPARAT
CUSHION
1шт.
66
NSS
NOT SOLD SEPARAT
FORK CLAM
1шт.
67
NSS
NOT SOLD SEPARAT
FRAME
1шт.
68
3402565R1
WASHER
90331, Mechanical Suspension
4шт.
68
3402565R1
WASHER
90331, Air Suspension
8шт.
69
NSS
NOT SOLD SEPARAT
PLATE
1шт.
Выбрано товаров: 80
