(9F-02) - SEAT AND MOUNTING, ( - JJF1057367)

Запчасти Case IH 5150 (9F-02) - SEAT AND MOUNTING, ( - JJF1057367) (09) - CHASSIS/ATTACHMENTS

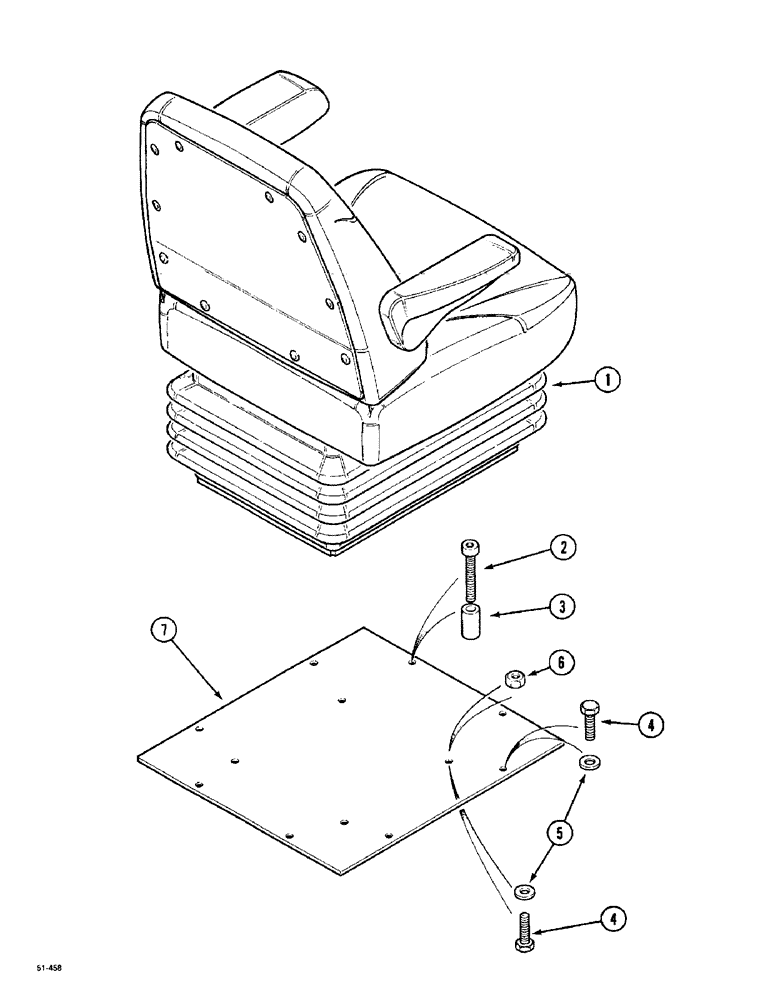

Схема запчастей Case IH 5150 - (9F-02) - SEAT AND MOUNTING, ( - JJF1057367) (09) - CHASSIS/ATTACHMENTS
1
7
4
5
2
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SEAT ASSY., 90331, See Figure: 9F-4

1шт.

2

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

90331, With Cab

2шт.

3

1977685C1

SPACER

90331, With Cab

2шт.

4

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

10шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

6

825-1408

NUT,M8, Cl 8

4шт.

7

1975780C4

PLATE

1шт.
