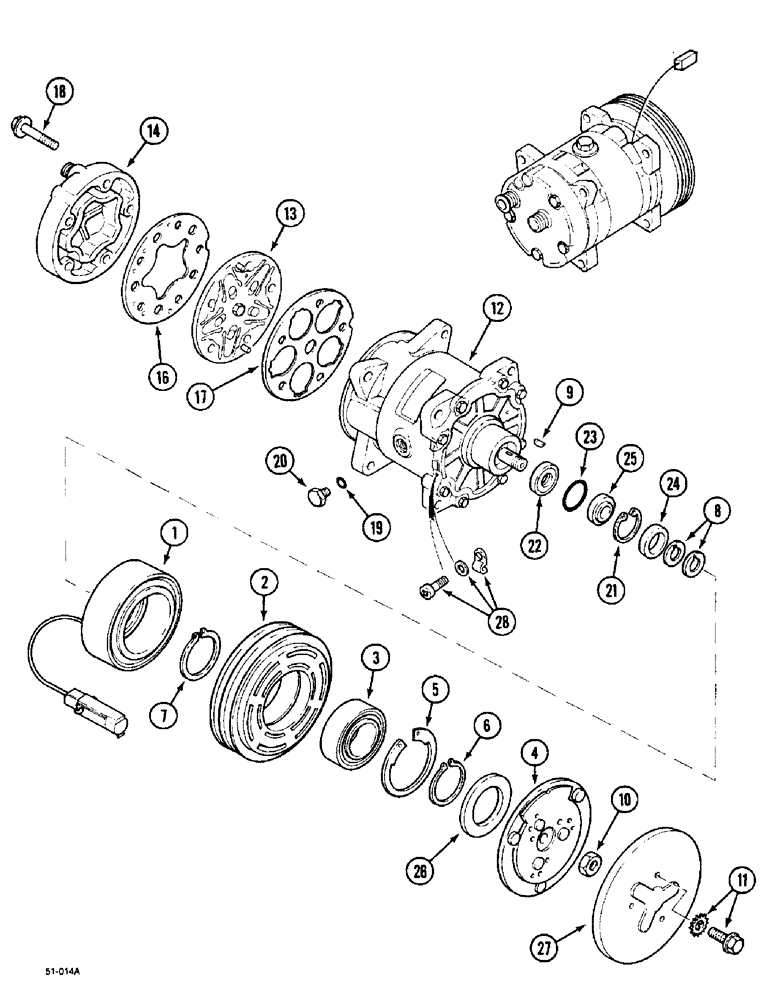

Запчасти Case IH 5150 (2-044) - COMPRESSOR ASSY (02) - ENGINE

1999755C2

COMPRESSOR

ASSY., 90317, Includes: 135324A1, 19, 20, Start Serial: JJF1034500

1шт.

97204C1

COMPRESSOR

ASSY., 90317, Includes : 83935C1, 1-28, Serial Range: -JJF1034499

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

135324A1

CLUTCH

ASSY.

1шт.

83935C1

CLUTCH

ASSY., 90317 Includes: 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

COIL

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY, 90317 Includes : 3

1шт.

3

NSS

NOT SOLD SEPARAT

ROLLER

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

A49673

KIT

service, 90317 Consists Of: 6-11

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM adjusting

1шт.

9

A49671

KEY

1шт.

10

NSS

NOT SOLD SEPARAT

NUT

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW

1шт.

12

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE

1шт.

14

NSS

NOT SOLD SEPARAT

HEAD cylinder, 90317, Start Serial: JJF1034500

1шт.

14

1958959C1

COVER

HEAD cylinder, 90317, Serial Range: -JJF1034499

1шт.

A49668

GASKET KIT

90317 Includes: 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL

1шт.

18

A49669

SCREW,Cylinder

5шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16, 90317, Start Serial: JJF1034500

1шт.

19

A49666

O-RING

90317, Serial Range: -JJF1034499

1шт.

20

A49667

PLUG

1шт.

A49665

SEAL KIT

90317 Consists Of: 21-24

1шт.

21

A49664

CIRCLIP

retianing

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING

1шт.

24

NSS

NOT SOLD SEPARAT

RING

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT

1шт.

26

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

RING

1шт.

27

1958961C1

COVER

1шт.

28

NSS

NOT SOLD SEPARAT

BRACKET

1шт.
