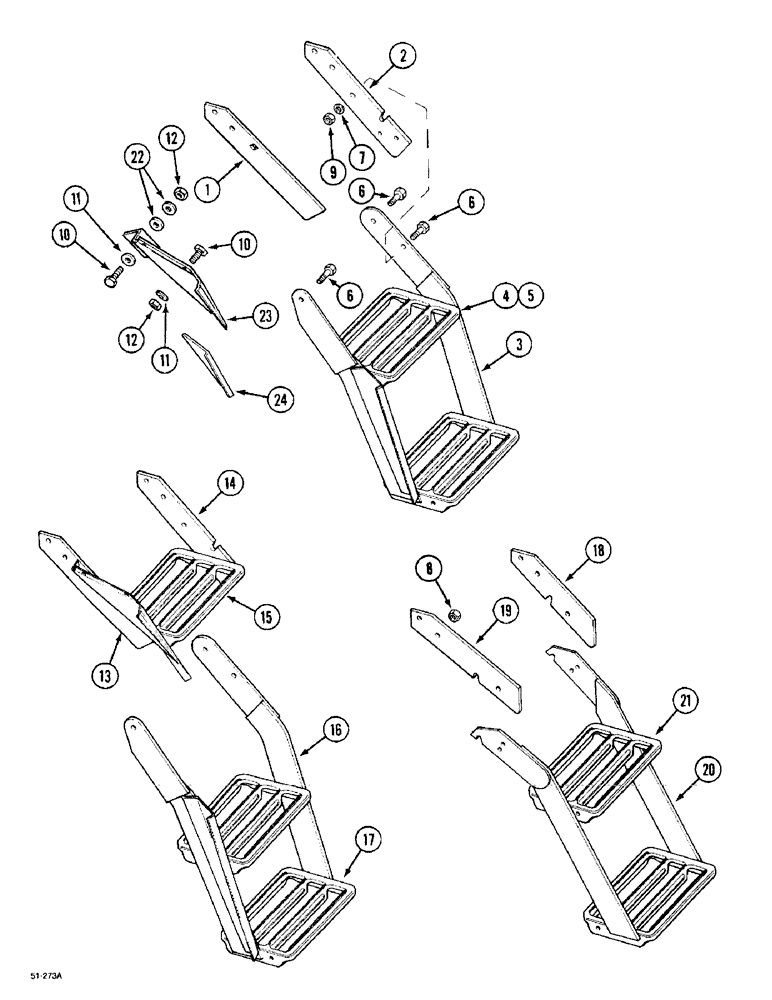

Запчасти Case IH 5150 (9E-76) - STEPS - TILTABLE (09) - CHASSIS/ATTACHMENTS

1

1533760C1

SUPPORT

BAR, 90133 Upper Right, 2 Step

1шт.

2

1533240C1

SUPPORT

BAR, 90133 Upper Right Front

1шт.

3

1533761C1

STEP

ASSY., 90133 Lower Right, 2 Step, Includes: 4

1шт.

4

1531337C1

STEP

90133, Includes: 5

2шт.

5

1533275C1

SEAL

100 mm

1шт.

6

3404199R1

BOLT

10 x 27 mm

1шт.

7

934674R1

WASHER,M10.5 x 30 x 2.5

10.5 x 30 x 2.5 mm

1шт.

8

825-1410

NUT,M10, Cl 8

4шт.

9

934819R1

LOCK NUT,M10 x 1.5, Thin

3шт.

10

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

5шт.

11

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

5шт.

12

825-1408

NUT,M8, Cl 8

5шт.

13

1533758C1

STEP

ASSY., 90133 Upper Right, 3 Step, Includes: 14, 15

1шт.

14

1531922C1

SUPPORT

BAR, 90133 Upper Right Front

1шт.

15

1531337C1

STEP

1шт.

16

1533759C1

STEP

ASSY., 90133 Lower Right, 3 Step, Includes: 17

1шт.

17

1531337C1

STEP

1шт.

18

1531910C1

SUPPORT

90133 Upper Front, Without Cab

1шт.

19

1531911C1

SUPPORT

90133 Upper Rear, Without Cab

1шт.

20

1531905C1

STEP

ASSY., 90133 Right, Without Cab, Includes: 21

1шт.

21

1531337C1

STEP

2шт.

22

495-81134

WASHER,0.41" ID x 0.88" OD x 0.06" Thk

2шт.

23

1533237C2

SUPPORT

PANEL

1шт.

24

1533235C2

SUPPORT

PANEL, 90133 2 Step

1шт.

24

1533280C2

SUPPORT

PANEL, 90133 3 Step

1шт.
