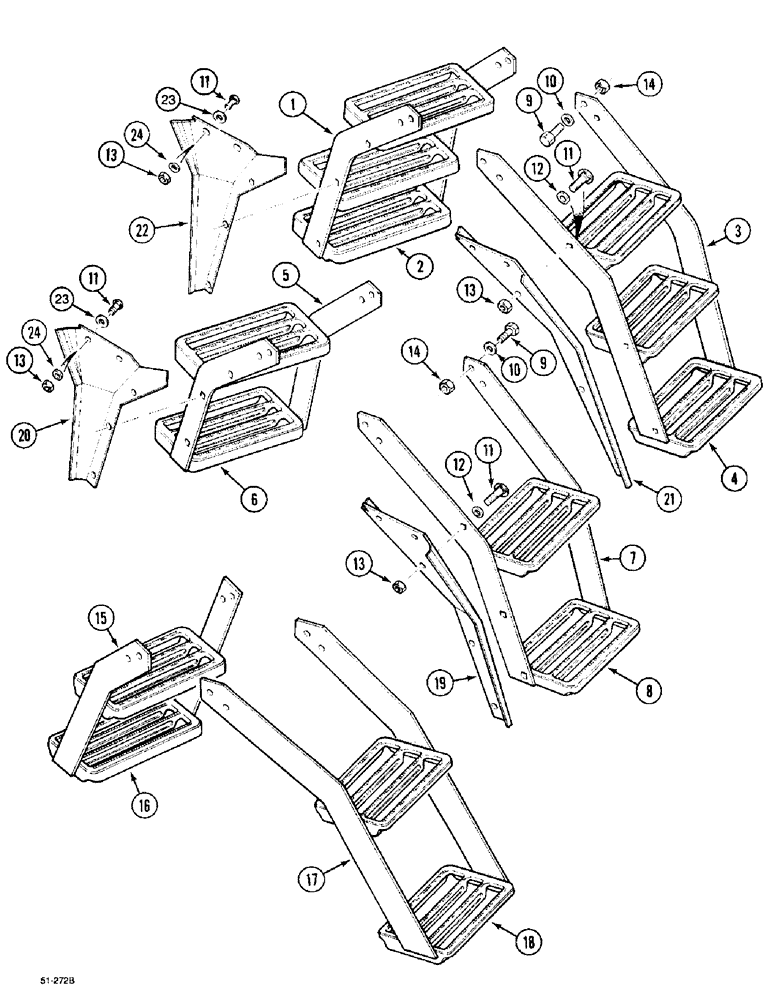

Запчасти Case IH 5150 (9E-72) - STEPS - FIXED (09) - CHASSIS/ATTACHMENTS

1

1533748C2

STEP

ASSY., 90133 Left, 3 Step, Includes: 2

1шт.

1

236096A1

STEP

ASSY., 90133, 5130, 5140, 5150, Fuel Tank: 220 ltr (Maxxum Pro - ) Left, 3 Step, Includes: 2

1шт.

1

239096A1

STEP

ASSY., 90133, 5130, 5140, 5150, Fuel Tank: 220 ltr (Maxxum Pro - ) Left, 2 Step, Includes: 2

1шт.

2

1531337C1

STEP

1шт.

3

1533747C2

STEP

ASSY., 90133 Right, 3 Step, Includes: 4

1шт.

4

1531337C1

STEP

1шт.

5

1533746C1

STEP

ASSY., 90133 Left, 2 Step, Includes: 6

1шт.

6

1531337C1

STEP

2шт.

7

1533745C1

STEP

ASSY., 90133 Right, 2 Step, Includes: 8

1шт.

8

1531337C1

STEP

2шт.

9

3404199R1

BOLT

10 x 27 mm

1шт.

10

934674R1

WASHER,M10.5 x 30 x 2.5

10.5 x 30 x 2.5 mm

1шт.

11

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

10шт.

12

934673R1

WASHER,M8.4 x 25 x 2

8 mm

4шт.

13

825-1408

NUT,M8, Cl 8

10шт.

14

825-1410

NUT,M10, Cl 8

4шт.

15

1531343C1

STEP

ASSY., 90133 Left, Without Cab, Includes: 16

1шт.

16

1531337C1

STEP

2шт.

17

1531342C1

STEP

ASSY., 90133 Right, Without Cab, Includes: 18

1шт.

18

1531337C1

STEP

2шт.

19

1533182C3

SUPPORT

PANEL, 90133 Right, 2 Step, With Cab

1шт.

20

1533183C3

SUPPORT

PANEL, 90133 Left, 2 Step, With Cab

1шт.

21

1533184C4

SUPPORT

PANEL, 90133 Right, 3 Step, With Cab

1шт.

22

1533185C4

SUPPORT

PANEL, 90133 Left, 3 Step, With Cab

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

24

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.
