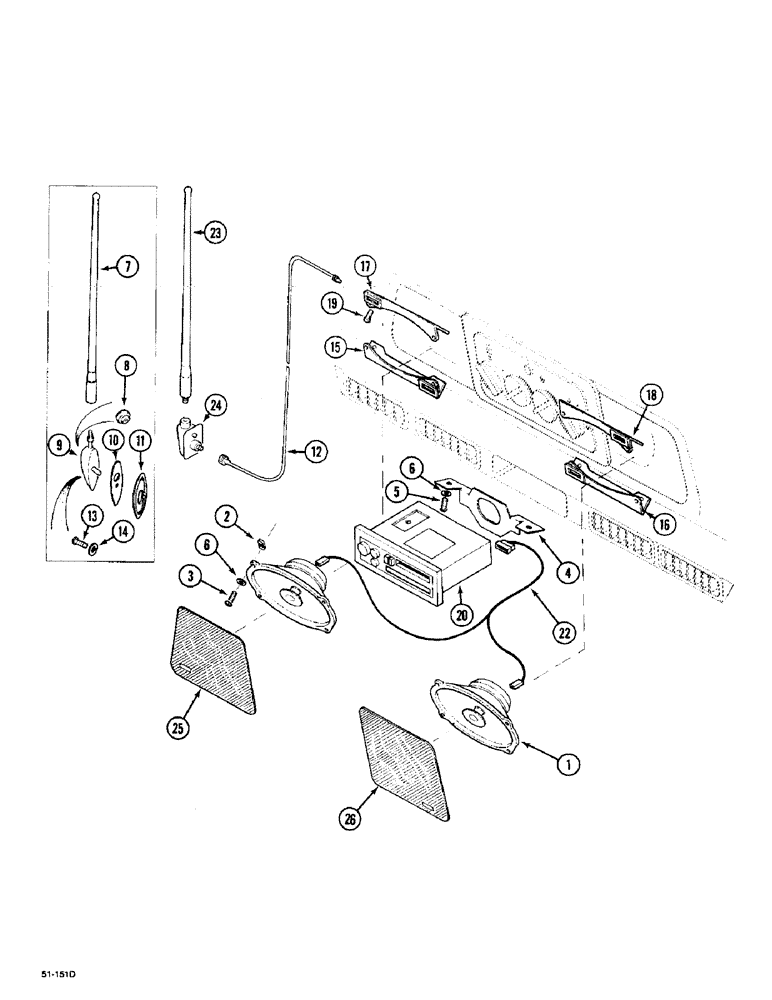

Запчасти Case IH 5150 (9E-70) - RADIO AND SPEAKERS (09) - CHASSIS/ATTACHMENTS

1

126523A1

SPEAKER

2шт.

2a

1971334C1

NUT

4.2 mm, Start Serial: JJF1029999

8шт.

2b

177269A1

SPRING NUT,M4.2

, Serial Range: -JJF1030000

8шт.

3

1971333C1

BOLT,Tapping, M4.2 x 13mm

4.2 x 13 mm

8шт.

4

1344361C1

SUPPORT

44570 Cab No.: JKJ71270 -

1шт.

4

1975715C1

BRACKET

44570 Cab No.: - JKJ71269

1шт.

5

3405478R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4.2 x 16 mm

2шт.

6

495-31019

WASHER,0.19" ID x 0.38" OD x 0.05" Thk

10шт.

1328311C91

ANTENNA

ASSY., 44570 Cab No.: - JKJ72851 Consists Of: 7-11

1шт.

7

NSS

NOT SOLD SEPARAT

ASSY., 44570 Order: 1328311C91

1шт.

8

1328286C1

CAP

1шт.

9

A187683

SOCKET

1шт.

10

1328287C1

SEAL

1шт.

11

1328362C1

SUPPORT

1шт.

12

1983247C1

CABLE

1500 mm, 44570 Use With: 1328311C91

1шт.

12

198962A1

CABLE

750 mm, 44570 Use With: 197745A1

1шт.

13a

1535231C1

SCREW,Cross Pan Hd, M4.2 x 16mm

4.2 x 13 mm, Start Serial: JJF1029999

2шт.

14a

892-11005

LOCK WASHER,M5

, Start Serial: JJF1029999

2шт.

15a

1340400C1

SUPPORT

, Start Serial: JJF1029999

1шт.

16a

1340401C1

SUPPORT

, Start Serial: JJF1029999

1шт.

17a

1958979C1

SUPPORT

, Start Serial: JJF1029999

1шт.

18a

1958980C1

SUPPORT

, Start Serial: JJF1029999

1шт.

19a

3405478R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4.2 x 16 mm, Start Serial: JJF1029999

8шт.

20

1964847C1

RADIO

44570 For Germany Only

1шт.

22

1533816C1

CABLE ASSY.

1шт.

197745A1

ANTENNA

410 mm, 44570 Cab No.: JKJ72852, Includes: 23, 24

1шт.

23

198960A1

ANTENNA

360 mm

1шт.

24

NSS

NOT SOLD SEPARAT

BODY, 44570 Order: 197745A1

1шт.

25

1971229C2

COVER

Grille

1шт.

26

1971349C2

COVER

Grille

1шт.
