Запчасти Case IH 5150 (9E-68) - AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

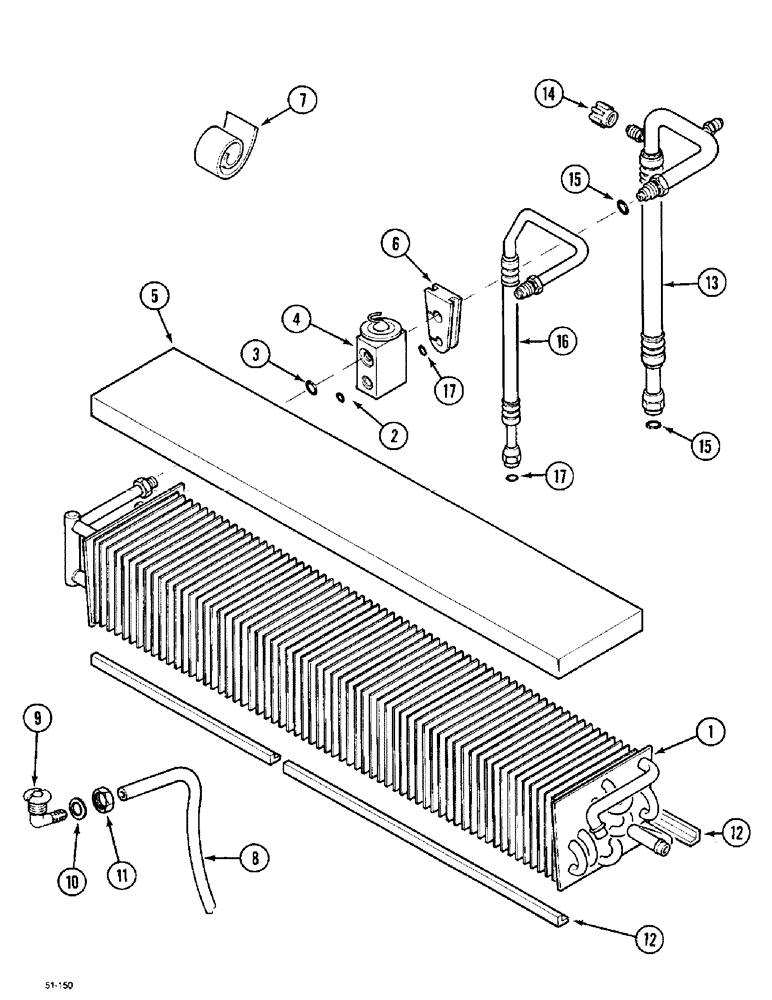

Схема запчастей Case IH 5150 - (9E-68) - AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS
9
16
6
12
15
13
17
17
3
8
1
15
7
12
11
10
5
14
2
4

Артикул

Название

Примечание

Количество

1

1990757C1

EVAPORATOR

90317 Includes: 2, 3, 4

1шт.

2

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

4

1990756C2

VALVE

expansion

1шт.

5

1977858C2

SEAL

810 mm

1шт.

6

1331003C1

GROMMET

1шт.

7

118468C1

TAPE

6шт.

8

REF

INSTRUCTION

HOSE, 90317 Cut From: 87769C2

2шт.

9

1974764C1

FITTING

2шт.

10

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

11

1340438C1

NUT

2шт.

12

1977433C1

SEAL

390 mm

4шт.

13

1330788C1

HOSE

ASSY., 90317, Includes: 14, 15, Serial Range: -JJF1034499

1шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

NUT, 7/16 NF fem x 45 deg fl

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

13

127248A1

HOSE

ASSY., 90317 (JJF1034500 - Maxxum Pro) Includes: 14, 15

1шт.

13

238838A1

HOSE ASSY.

90317 (Maxxum Pro -) Includes: 15

1шт.

14

122553A1

CAP

1шт.

15

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

16

1330789C1

HOSE

ASSY., 90317, Includes: 17, Serial Range: -JJF1034499

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

16

113163A1

A/C HOSE

90317 (JJF1034500 - Maxxum Pro) Includes: 17

1шт.

16

238837A1

HOSE ASSY.

90317 (Maxxum Pro - ) Includes: 17

1шт.

17

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

REF

INSTRUCTION

SWITCH ASSY., 41510 Low Pressure, See Figure: 4-16

1шт.

87769C2

HOSE

27360 mm, 90317 Bulk Length

1шт.

Выбрано товаров: 26
