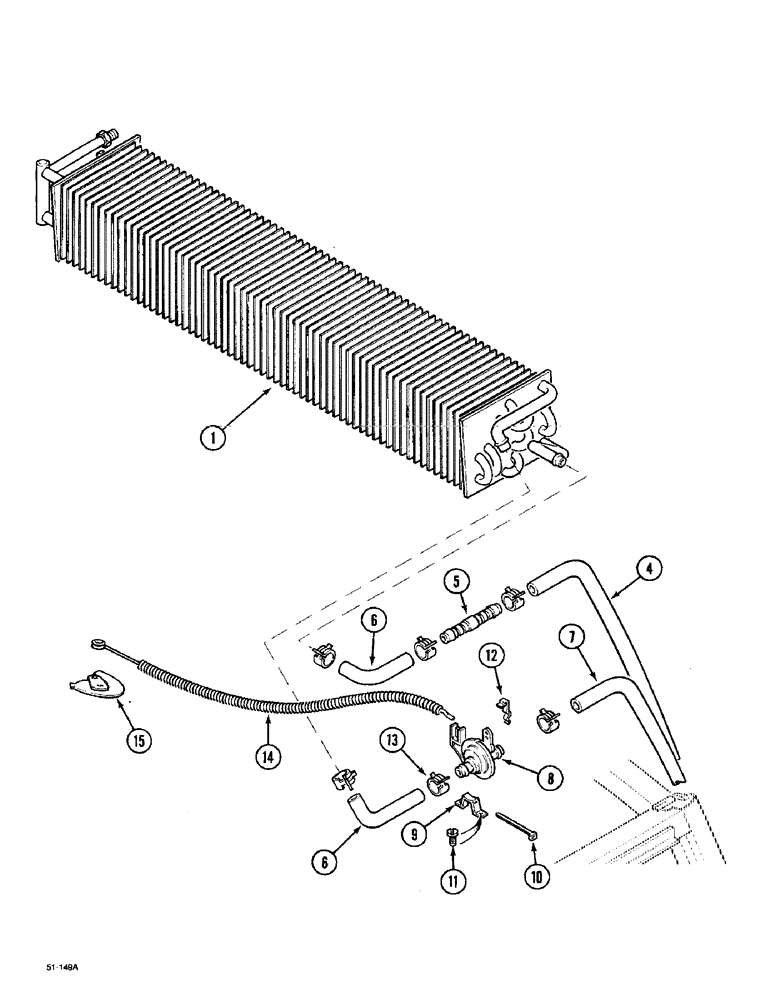

Запчасти Case IH 5150 (9E-66) - HEATER UNIT (09) - CHASSIS/ATTACHMENTS

1

1331025C1

CORE

CORE, 90315 With Heater

1шт.

1

NSS

NOT SOLD SEPARAT

CORE, 90315 With Air Conditioning, See Figure: 9E-68

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE, 90315 Supply Cut From: 97252CX

1шт.

5

1301342C1

FITTING

union 5/8 in

1шт.

6

1340488C1

HOSE,15.50 mm ID x 121.00 mm

2шт.

7

NSS

NOT SOLD SEPARAT

HOSE, 90315 Return Cab No.: - JKJ101085 Cut From: 97252CX

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE, 90315 Return Cab No.: JKJ101086 - Cut From: 97252CX

1шт.

8

1331087C1

HEATER VALVE

control

1шт.

9

97116C1

BRACKET

1шт.

10

702093C1

CABLE TIE

CABLE STRAP

1шт.

11

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

4.8 x 16 mm

2шт.

12

1954626C1

SPRING CLIP

1шт.

13

1954736C1

HOSE CLAMP,#24

6шт.

14

1958568C1

BOWDEN CONTROL

CABLE

1шт.

15

96879C1

LEVER

1шт.

97252CX

HOSE

15240 mm, 90315 Bulk Length

1шт.
