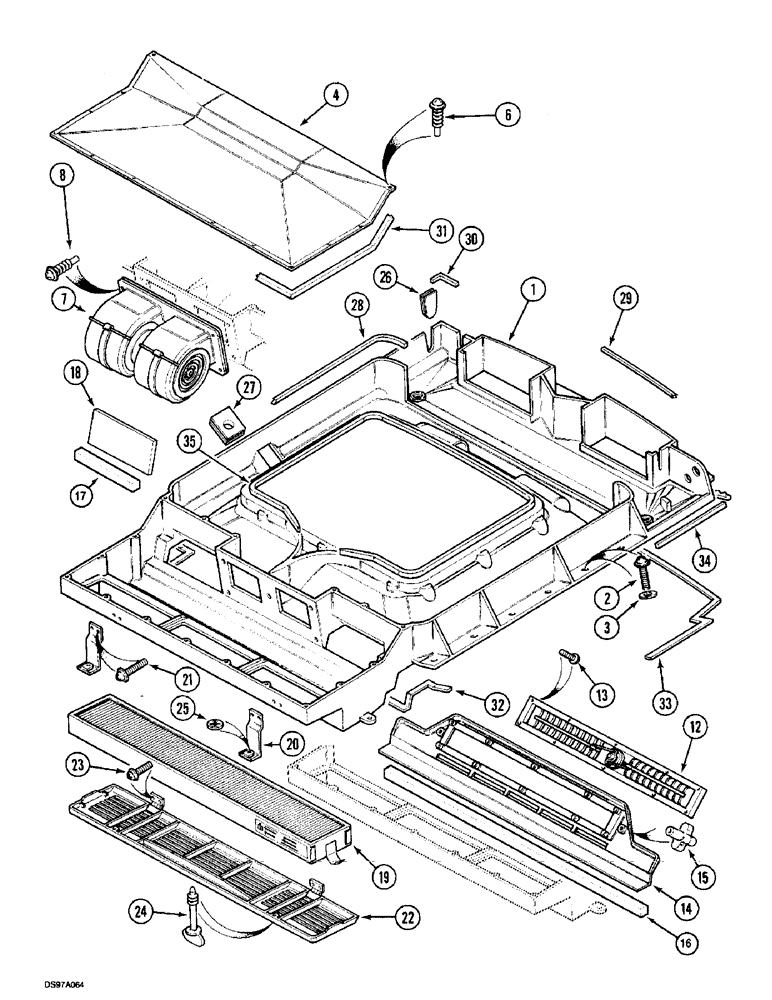

Запчасти Case IH 5150 (9E-60) - AIR FILTER AND AIR INTAKE PARTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1331018C2
PANEL with Hatch
1шт.
3399852R1
PLASTIC GASKET
SEALANT, 90311 Used With: 1331018C1
1шт.
1
1990976C2
PADDING
90311 Without Hatch
1шт.
2
1535613C1
SCREW,Hex Wshr, M6.3 x 38mm
6 x 38 mm, 90311 Cab No.: JKJ53252 -
16шт.
2
30842R1
SELF-TAP SCREW,Hex Hd, M6.3 x 25
90311 Cab No.: - JKJ53251
16шт.
3
934948R1
WASHER,M6
6 mm, 90311 Cab No.: - JKJ53251
16шт.
4
1331196C1
COVER
ASSY.
1шт.
6
3405477R1
SELF-TAP SCREW,Pan Hd, M4.8 x 16
4.8 x 16 mm
18шт.
7
REF
INSTRUCTION
BLOWER, 44010 See Figure: 9E-64
1шт.
8
1989999C1
SCREW
6 x 25 mm
5шт.
12
1958575C1
FLAP
LOUVER
1шт.
13
1344093C1
SCREW,Pozidriv Pan Hd, M3.50 x 16mm, Hi-Lo
10шт.
14
1958672C1
PANEL
1шт.
15
1977991C1
KNOB
M6
2шт.
16
245370A1
SEALING STRIP
20 x 20 x 900 mm
1шт.
17
254553A1
SEALING STRIP
20 x 20 x 240 mm
2шт.
18
1331180C2
FILTER SCREEN
2шт.
19
143481C2
AIR CLEANER
90142
1шт.
20
1340138C1
SUPPORT
ASSY.
2шт.
21
3405477R1
SELF-TAP SCREW,Pan Hd, M4.8 x 16
4.8 x 16 mm
4шт.
22
1974648C3
COVER
ASSY.
1шт.
23
3405477R1
SELF-TAP SCREW,Pan Hd, M4.8 x 16
4.8 x 16 mm
4шт.
24
1975759C3
BUTTON
KNOB
2шт.
25
1971364C1
RETAINER
2шт.
26
1331032C1
GROMMET
90311 With Heater
2шт.
26
1331032C1
GROMMET
With Air Conditioning
1шт.
27
1971356C1
GROMMET
1шт.
28
REF
INSTRUCTION
SEAL, 90311 Cut From: 1971350C1
1шт.
29
REF
INSTRUCTION
SEAL, 90311 Cut From: 1971350C1
1шт.
30
REF
INSTRUCTION
SEAL, 90311 Cut From: 1971350C1
1шт.
31
REF
INSTRUCTION
SEAL, 90311 Cut From: 1971350C1
1шт.
32
REF
INSTRUCTION
SEAL, 90311 Cut From: 1343842C1
1шт.
33
REF
INSTRUCTION
SEAL,90311 Cut From: 1971350C1
1шт.
34
REF
INSTRUCTION
SEAL, 90311 Cut From: 1971350C1
1шт.
35
REF
INSTRUCTION
SEAL, 90311 Cut From: 1971350C1 Without Hatch
1шт.
1971350C1
SEAL
15240 mm, 90311 Bulk Length
1шт.
1340329C1
SEAL
15240 mm, 90311 Bulk Length
1шт.
1343842C1
SEAL
15240 mm, 90311 Bulk Length
1шт.
Выбрано товаров: 38
