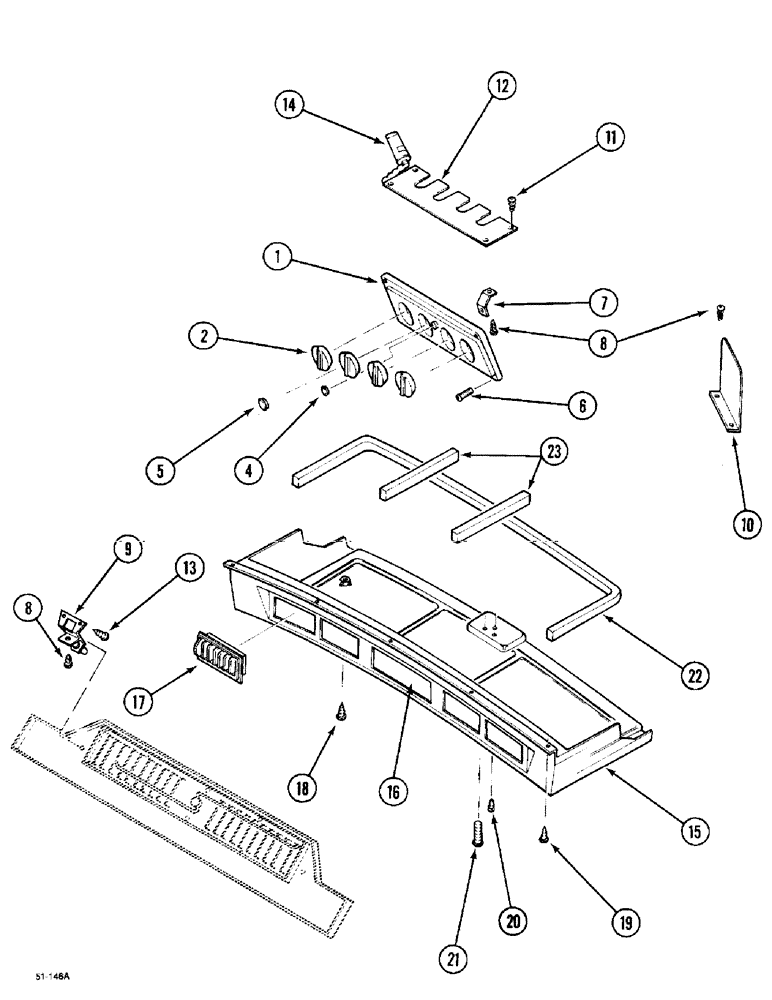

Запчасти Case IH 5150 (9E-58) - HEATING AND VENTILATION CONTROL (09) - CHASSIS/ATTACHMENTS

1

1330774C1

PLATE

PANEL

1шт.

2

1331046C2

KNOB

90311 With Heater

3шт.

2

1331046C2

KNOB

90311 With Air Conditioning

4шт.

4

353-404

PLUG,Dome, .500" hole, Nylon

90311 with Heater

1шт.

5

353-402

PLUG,Dome, .375" hole, Nylon

90311 with Heater

1шт.

6

1971333C1

BOLT,Tapping, M4.2 x 13mm

4.2 x 13 mm

4шт.

7

1974843C1

CLAMP

90311 (- JJF1029999)

4шт.

8

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

4.8 x 16 mm, 90311 (- JJF1029999)

16шт.

9

1958976C1

BRACKET

ASSY.

2шт.

10

1971355C1

DEFLECTOR

2шт.

11

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

4.8 x 16 mm

4шт.

12

1958617C1

PLATE

PANEL

1шт.

13

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

4.8 x 16 mm

4шт.

14

1500877C1

FLUID

150 ml

1шт.

15

1330758C2

HOUSING

ASSY., 90311 Cab No.: - JKJ71269, 5120, 5130, 5140

1шт.

15

1987058C1

HOUSING

ASSY., 90311 Cab No.: JKJ71270 - Maxxum Pro

1шт.

15

238597A2

HOUSING

ASSY., 90311 (Maxxum Pro - )

1шт.

16

1343889C1

DECAL

90311 Cab No.: - JKJ71269, 5120, 5130, 5140

1шт.

16

1535219C1

COVER

90311 Cab No.: JKJ71270 -

1шт.

17

1958752C1

VENT

LOUVER

8шт.

18

1977686C1

SCREW

4.2 x 25 mm

2шт.

19

3405478R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4.2 x 16 mm

5шт.

20

3405478R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4.2 x 16 mm

2шт.

21

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

1шт.

22

REF

INSTRUCTION

SEAL, 90311 Cut From: 1971350C1

1шт.

23

REF

INSTRUCTION

SEAL, 90311 Cut From: 1971350C1

2шт.

1971350C1

SEAL

SEAL, 15240 mm, 90311 Bulk Length

1шт.
