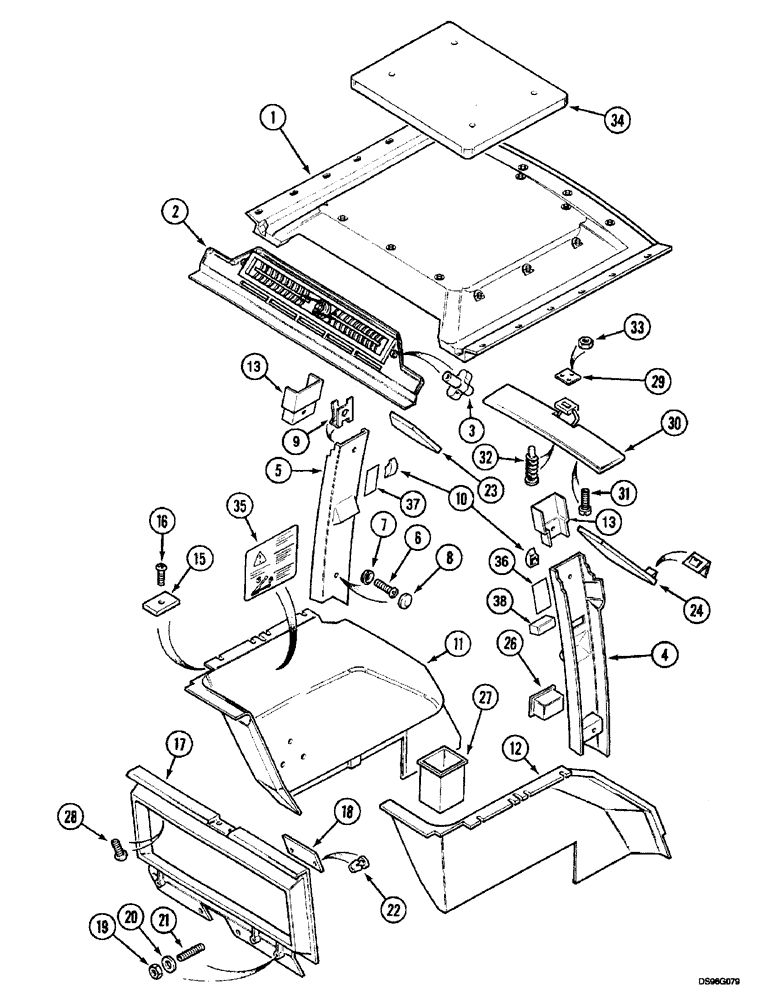

Запчасти Case IH 5150 (9E-54) - CAB HEADLINER TRIM (09) - CHASSIS/ATTACHMENTS

1

106303A2

PADDING

HEADLINER, 90319 Rear Without Hatch

1шт.

1

106304A2

PADDING

HEADLINER, 90319 Rear With Hatch

1шт.

2

238598A1

PANEL

1шт.

1530883C1

FILTER

air, 90319 Not Illustrated

1шт.

3

1977991C1

KNOB

M6

2шт.

4

1977377C2

PANEL, SIDE

90319 B Post Right Cab No. : - JKJ101085

1шт.

4

242779A1

PANEL, SIDE

90319 B Post Right Cab No. : JKJ101086 -

1шт.

5

1977376C1

PANEL

90319 B Post Left

1шт.

6

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

4.2 x 22 mm

4шт.

7

97279C1

RETAINER

1шт.

8

97280C1

CAP

1шт.

9

3234042R1

SPRING NUT

4.2 mm

4шт.

10

3234176R1

COAT HOOK

2шт.

11

110582A2

LINING

PANEL, 90319 Left

1шт.

12

110583A3

LINING

PANEL, 90319 Right

1шт.

13

238834A1

PANEL, SIDE

extension, 90319 B Post Cab No.: - JKJ101085

2шт.

1340036C1

BRACKET

90319 Not Illustrated

2шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

90319 Cab No. - JKJ57749 Not Illustrated

8шт.

15

1546832C2

LARGE PLATE

PLATE, LARGE

6шт.

15

195523A1

SUPPORT

2шт.

16

3229743R1

SCREW,Cross Pan Hd, M6 x 16

6 x 16 mm, 90319 Cab No. - JKJ57749

8шт.

16

142389A1

SELF-TAP SCREW,Torx Cheese Hd, M6 x 16mm

6 x 16 mm

16шт.

17

1340035C2

PANEL

1шт.

18

1340070C1

COVER ASSY

1шт.

19

761-17525

SELF-TAP SCREW,Pan Hd, M5.5 x 25

5 x 25 mm, 90319 Cab No.: JKJ57750

3шт.

20

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

3шт.

21

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

3шт.

22

1340161C1

FASTENER

90319 Cab No.: - JKJ82978

2шт.

22

1535671C1

PLASTIC PLUG

FASTENER, 90319 Cab No.: JKJ82979 -

2шт.

23

1971229C2

COVER

Grille, 90319 Speaker, LH

1шт.

24

1971349C2

COVER

Grille, 90319 Speaker, RH

1шт.

25

97058C1

CLIP

4шт.

26

3399810R1

ASH TRAY

1шт.

27

97079C2

BOX

1шт.

28

3229743R1

SCREW,Cross Pan Hd, M6 x 16

6 x 16 mm

3шт.

29

246692A1

PLATE

90319 Cab No.: JKJ101086 -

1шт.

29

1974837C1

PLATE

90319 Cab No.: - JKJ101085

1шт.

30

246691A1

VISOR, SUN

90319 Cab No.: JKJ101086 -

1шт.

30

224855A1

VISOR, SUN

90319 Cab No.: - JKJ101085

1шт.

31

3233288R1

SCREW

M5 x 16 mm, 90319 Cab No.: JKJ101086 -

3шт.

31

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

90319 Cab No.: - JKJ101085

1шт.

32

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

5 x 20 mm, 90319 Cab No.: - JKJ101085

2шт.

33

1546707C1

INSERT

5 mm, 90319 Cab No.: - JKJ101085

2шт.

33

832-10405

NUT,M5 x .8, Cl 8

90319 Cab No.: JKJ101086 -

3шт.

34

1344020C1

LARGE PLATE

PLATE, LARGE INSULATOR, 90319 Without Hatch

1шт.

35

1534337C1

ADHESIVE

90319 Park Brake

1шт.

36

REF

INSTRUCTION

DECAL, 90319 See Figure: 9H-18

1шт.

37

REF

INSTRUCTION

DECAL, 90319 See Figure: 9H-18

1шт.

38

239154A1

TIME-WATCH

90319 Cab No.: JKJ101086 -

1шт.
