Запчасти Case IH 5150 (2-040) - AIR CONDITIONING PIPES, (HFC 134A) (JJF1034500 - ) (02) - ENGINE

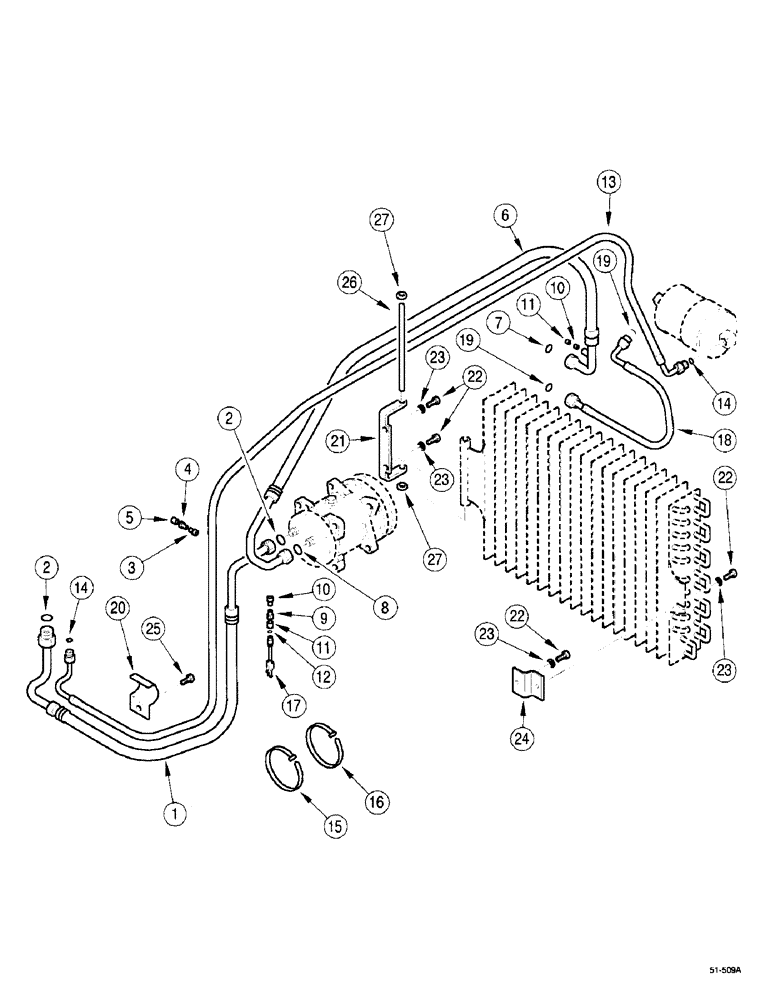

Схема запчастей Case IH 5150 - (2-040) - AIR CONDITIONING PIPES, (HFC 134A) (JJF1034500 - ) (02) - ENGINE
23
17
22
16
13
3
15
11
22
23
10
1
22
8
9
10
19
5
25
23
24
4
14
2
12
6
27
2
27
7
23
19
26
11
18
20
21
14

Артикул

Название

Примечание

Количество

1

127249A2

HOSE

1000 mm (39-3/8 in), 90317, 5120, Includes: 2-5

1шт.

1

127245A3

HOSE

1195 mm (47-1/8 in), 90317, 5130, 5140, 5150, Includes: 2-5

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

3

137328A1

PIPE FITTING

1шт.

4

1250594C2

CORE

1шт.

5

122553A1

CAP

90317 Blue

1шт.

6

127247A3

HOSE

90317 Includes: 7-12

1шт.

7

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

9

137329A1

PIPE FITTING

1/4 in

2шт.

10

1250594C2

CORE

2шт.

11

122554A1

CAP

90317 Red

2шт.

12

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

13

113167A2

HOSE ASSY.

90317 Includes : 14

1шт.

14

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

15

3402979R2

BAND

cable 350 mm

5шт.

16

3148767R2

COLLAR CLAMP

STRAP cable 197 mm

6шт.

17

232948A1

SWITCH, A/C HIGH PRE

Assy, 90317

1шт.

18

127246A1

HOSE

470 mm (18-1/2 in), 90317 Includes: 19

1шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

20

176264A1

CLAMP

90317, 5120

1шт.

20

176264A1

CLAMP

90317, 5130, 5140, 5150

2шт.

20

176406A1

CLAMP

90317, 5130, 5140, 5150

1шт.

21

129466A1

SUPPORT

90317, 5120, 5130, 5140

1шт.

21

129470A1

SUPPORT

90317, 5150

1шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

90317, 5120, 5130, 5140

4шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

90317, 5150

3шт.

23

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

90317, 5120, 5130, 5140

4шт.

23

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

90317, 5150

3шт.

24

129465A1

SUPPORT

90317, 5120, 5130, 5140

1шт.

25

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

90317, 5120

1шт.

25

86410030

M10 x 30; 8.8, 90317, 5130, 5140, 5150

2шт.

25

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

90317, 5130, 5140, 5150

1шт.

26

A184695

PIN

1шт.

27

A184680

SNAP RING,#31, Ext

#31, Ext

2шт.

Выбрано товаров: 35
