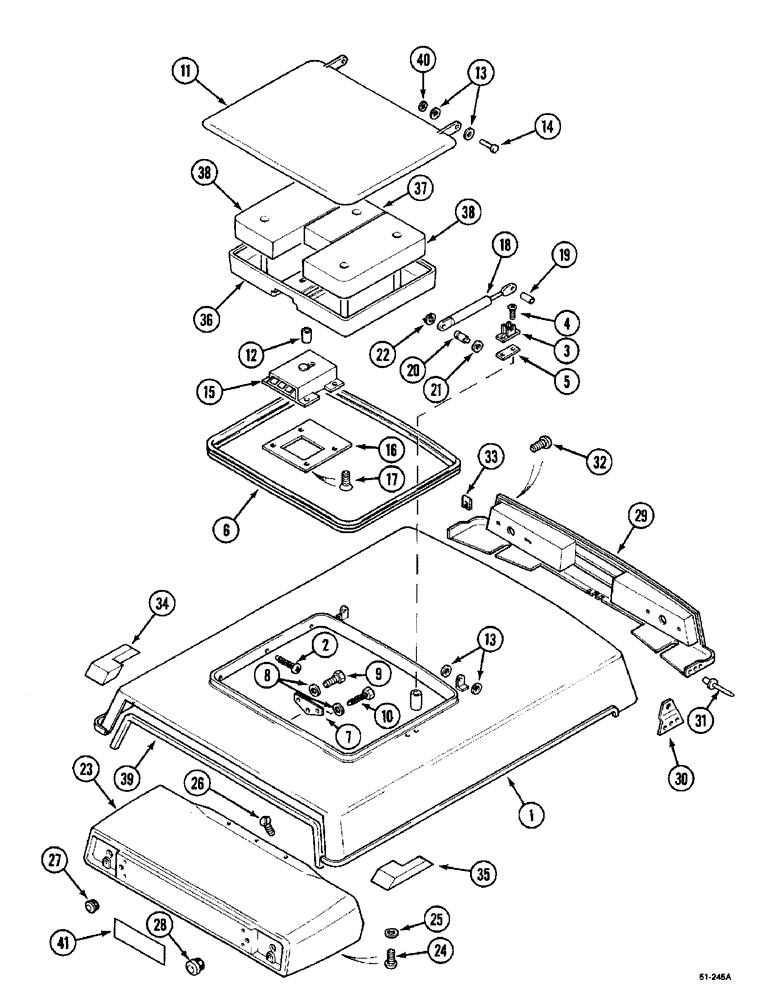

Запчасти Case IH 5150 (9E-48) - ROOF WITH HATCH (09) - CHASSIS/ATTACHMENTS

1

1340356C2

ROOF

1шт.

2

1340358C1

SCREW,Cross Rec Pan Hd, M4.8, Hi-Lo Thd x 19mm

4.8 x 19 mm

11шт.

3

3233680R4

HOLDER

2шт.

4

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

5 x 20 mm

4шт.

5

1535322C1

PLATE

SEAL

2шт.

6

1958735C2

SEAL

1шт.

7

1340226C1

PLATE

1шт.

8

1340227C1

WASHER

5.6 x 10 x 1 mm

3шт.

9

514-506

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

M6 x 25

2шт.

10

1340352C1

SCREW,Hex, M6, Hi-Lo Thd x 25mm

6 x 25 mm

1шт.

11

1340454C1

COVER ASSY

90311 Cab No.: - JKJ94863

1шт.

11

1990746C1

COVER ASSY

90311 Cab No.: - JKJ94863 Includes: 12

1шт.

12

3234185R1

THREADED INSERT

INSERT, 10 mm

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

1535282C1

PIN

headed 2 x 22 mm

2шт.

15

1330775C2

LATCH

ASSY.

1шт.

16

1330781C1

PLATE

1шт.

17

1331153C1

SCREW,Flat Hd, M8 x 20mm

BOLT 8 x 20 mm

4шт.

18

3399422R3

GAS STRUT,225mm Extended, 165mm Compressed

CYLINDER, gas strut

2шт.

19

3233294R1

LOCK PIN,M6 x 14, Slotted

6 x 14 mm

2шт.

3234082R1

PIN

ASSY., 90311 Includes: 20, 21

2шт.

20

3234083R1

PIN

1шт.

21

895-10004

WASHER,M4 x 9 x .8

1шт.

22

3233681R1

SNAP RING

RING retaining

2шт.

23

1331054C1

HOUSING

COVER, 90311 Air Filter

1шт.

24

3229743R1

SCREW,Cross Pan Hd, M6 x 16

6 x 16 mm

2шт.

25

3233293R1

WASHER,M6.34 x 18 x 1.6

6 mm

5шт.

26

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

3шт.

27

1340318C1

PLUG,1" Hole, Nylon

1шт.

28

353-425

PLUG,0.437 Hole OD

7/16 in

1шт.

29

1958981C1

PANEL

90311 Front

1шт.

30

1971369C1

BRACKET

2шт.

31

151-539

RIVET,Pop, 3/16" x .450"

90311 Cab No.: JKJ53252 -

6шт.

31

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2, 90311 Cab No.: - JKJ53251

6шт.

32

1971333C1

BOLT,Tapping, M4.2 x 13mm

4.2 x 13 mm

7шт.

33

1971334C1

NUT

4.2 mm

5шт.

33

3234191R1

SPRING NUT

2шт.

34

1340209C1

SEAL

90311 Left

1шт.

35

1340210C1

SEAL

90311 Right

1шт.

36

106305A1

PADDING

PANEL, 90311 Cab No.: - JKJ101085

1шт.

37

1344018C1

FOAM

90311 Cab No.: - JKJ101085

1шт.

38

1344019C1

LARGE PLATE

PLATE, LARGE INSULATOR, 90311 Cab No.: - JKJ101085

2шт.

39

1987126C2

SEAL

1шт.

40

1535283C1

CIRCLIP

retaining M8

2шт.

41

1987081C1

PRODUCT GRAPHIC

DECAL, 90311 For France Only

1шт.
