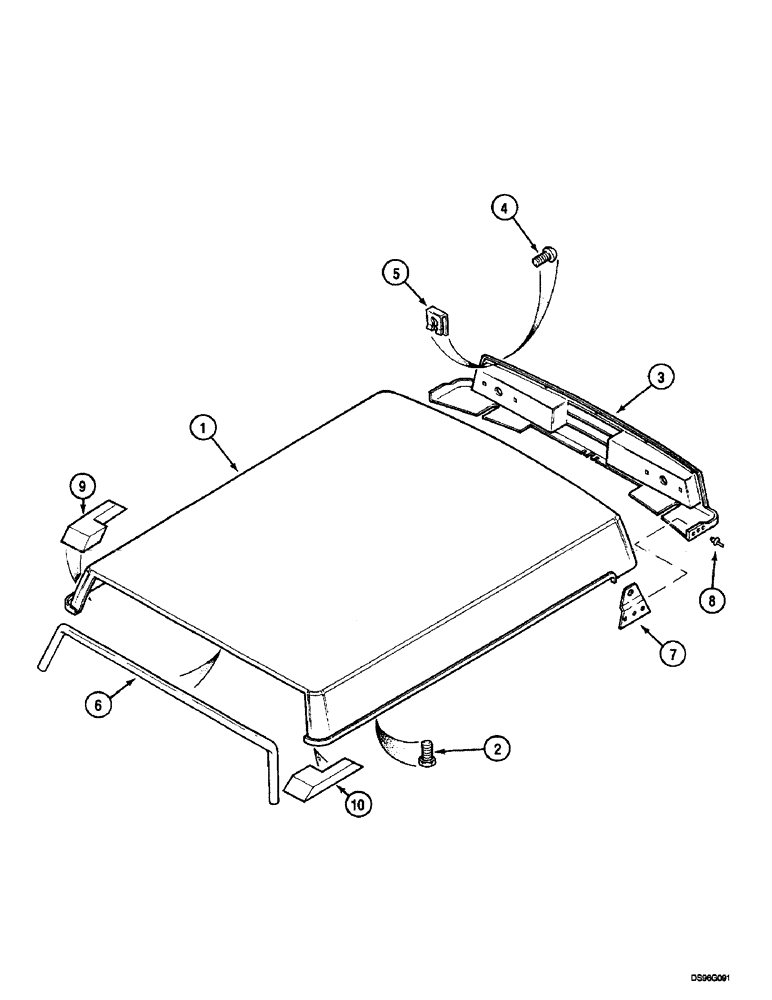

Запчасти Case IH 5150 (9E-46) - ROOF WITHOUT HATCH, NOT FOR GERMANY (09) - CHASSIS/ATTACHMENTS

1

1330764C2

ROOF

ASSY.

1шт.

2

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

6шт.

3

1958981C1

PANEL

90311 Front

1шт.

4

1971333C1

BOLT,Tapping, M4.2 x 13mm

4.2 x 13 mm

7шт.

5

1971334C1

NUT

4.2 mm

5шт.

5

3234191R1

SPRING NUT

2шт.

6

1987126C2

SEAL

1шт.

7

1971369C1

BRACKET

2шт.

8

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

6шт.

9

1340209C1

SEAL

90311 Left

1шт.

10

1340210C1

SEAL

90311 Right

1шт.
