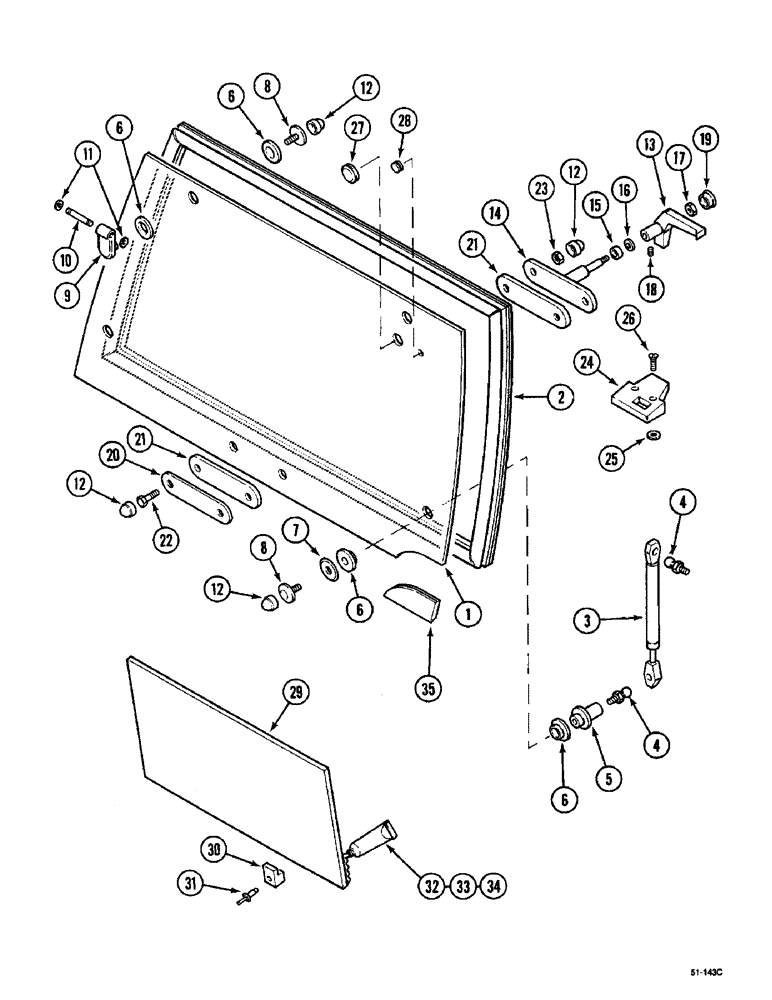

Запчасти Case IH 5150 (9E-42) - CAB - REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

248720A1

GLASS

90313 Green (Maxxum Pro - ) High Roof

1шт.

1

127442A1

GLASS

90313 (JJF1030000 - Maxxum Pro)

1шт.

1

1330904C1

GLASS

90313, Serial Range: -JJF1029999

1шт.

2

121672A2

SEAL,3410mm L

1шт.

3

1971235C2

GAS STRUT

SPRING

2шт.

4

K303756

BALL STUD,M6 x 1

6 mm

4шт.

5

K303541

BRACKET

2шт.

6

1535335C1

SPACER

WASHER rubber

8шт.

7

1535330C2

SEALING WASHER

6 mm

4шт.

8

1535313C1

CAP,Hex, M6 x 12mm

4шт.

9

114322A2

HINGE

2шт.

10

1535323C1

PIN,8mm OD x 78.5mm L

2шт.

11

K653509

RING, SNAP

RING SNAP M8, 90313 Cab No.: - JKJ69086

4шт.

11

1535283C1

CIRCLIP

retaining, M8, 90313 Cab No.: JKJ69086 -

4шт.

12

K651962

CAP

8шт.

1340201C1

HANDLE

90313 Cab No.: - JKJ96786 Consists Of: 13A, 14A, 15, 16, 17A, 18, 19A

1шт.

224730A1

HANDLE

90313 Cab No.: JKJ96787 - Consists Of: 13B, 14B, 15, 16, 17B, 18, 19B

1шт.

13a

1340205C1

HANDLE

90313 Cab No.: - JKJ96786 Order: 13B, 17B, 19B

1шт.

13b

224731A1

HANDLE

90313 Cab No.: JKJ96787 -

1шт.

14a

1340202C1

PLATE

90313 Cab No.: - JKJ96786 Order: 14B, 17B, 19B

1шт.

14b

224732A1

PLATE ASSY.

90313 Cab No.: JKJ96787 -

1шт.

15

1340206C1

RUBBER BUSHING

1шт.

16

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

17a

825-1406

NUT,M6, Cl 8

90313 Cab No.: - JKJ96786

1шт.

17b

825-1408

NUT,M8, Cl 8

Cab No.: JKJ96787 -

1шт.

18

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

19a

K656780

PLUG

90313 Cab No.: - JKJ96786

1шт.

19b

224734A1

PLUG

90313 Cab No.: JKJ96787 -

1шт.

20

1340203C1

PLATE

1шт.

21

1340208C2

PAD

2шт.

22

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

6 x 25 mm

2шт.

23

97005C1

FLANGE NUT

M6

2шт.

24

1340142C1

PLATE

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

26

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4.8

2шт.

27

F66090

PLUG

29/32

1шт.

28

F66089

PLUG

3/8

1шт.

29

1981934C1

GLASS

1шт.

30

1328410C1

CLIP

2шт.

31

1328414C1

RIVET,Pop, 4mm OD x 22mm L

2шт.

3404053R91

PACKAGE

repair, 90313 Consists Of: 32-34

1шт.

32

NSS

NOT SOLD SEPARAT

FLUID cleaner, 90313 Order: 3404053R91

1шт.

33

NSS

NOT SOLD SEPARAT

DECAL, 90313 Order: 3404053R91

1шт.

34

NSS

NOT SOLD SEPARAT

FLUID, 90313 Order: 3404053R91

1шт.

35

127441A2

GROMMET

90313, Start Serial: JJF1030000

1шт.
