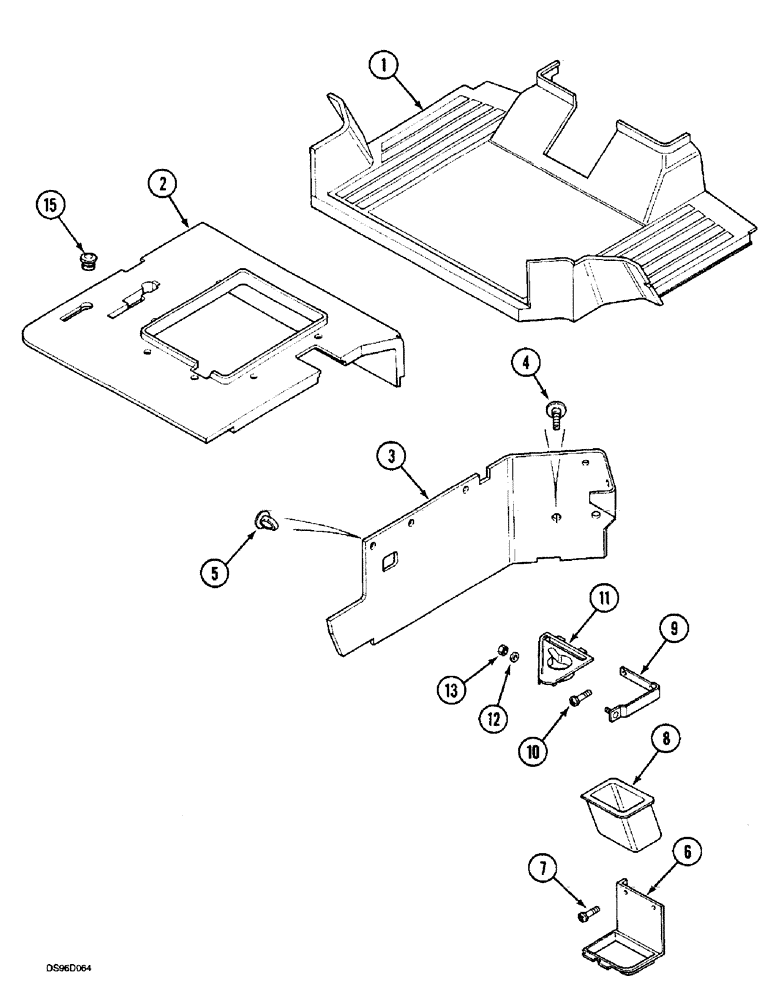

Запчасти Case IH 5150 (9E-10) - CAB INTERIOR (09) - CHASSIS/ATTACHMENTS

1

1533363C3

FLOOR MAT

1шт.

2

1533364C3

FLOOR MAT

90319 Seat

1шт.

3

1340112C4

COVER

1шт.

4

1531689C1

BUTTON

CLIP, 90319, Serial Range: -JJF1028230

2шт.

5

3404079R1

PLUG

PIN

5шт.

6

1340068C1

PROTECTIVE COVER

panel, 90319 Rear

1шт.

7

3229743R1

SCREW,Cross Pan Hd, M6 x 16

6 x 16 mm

2шт.

8

1340069C1

CONTAINER

panel, 90319 Rear

1шт.

9

1340155C2

SUPPORT ASSY.

1шт.

10

3229743R1

SCREW,Cross Pan Hd, M6 x 16

6 x 16 mm

2шт.

11

1340066C1

PROTECTIVE COVER

HOLDER, 90319 Used With : 1534477C1 & 1531365C1 See Figure: 9D-2

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

825-1406

NUT,M6, Cl 8

1шт.

15

1533620C2

PLUG

2шт.
