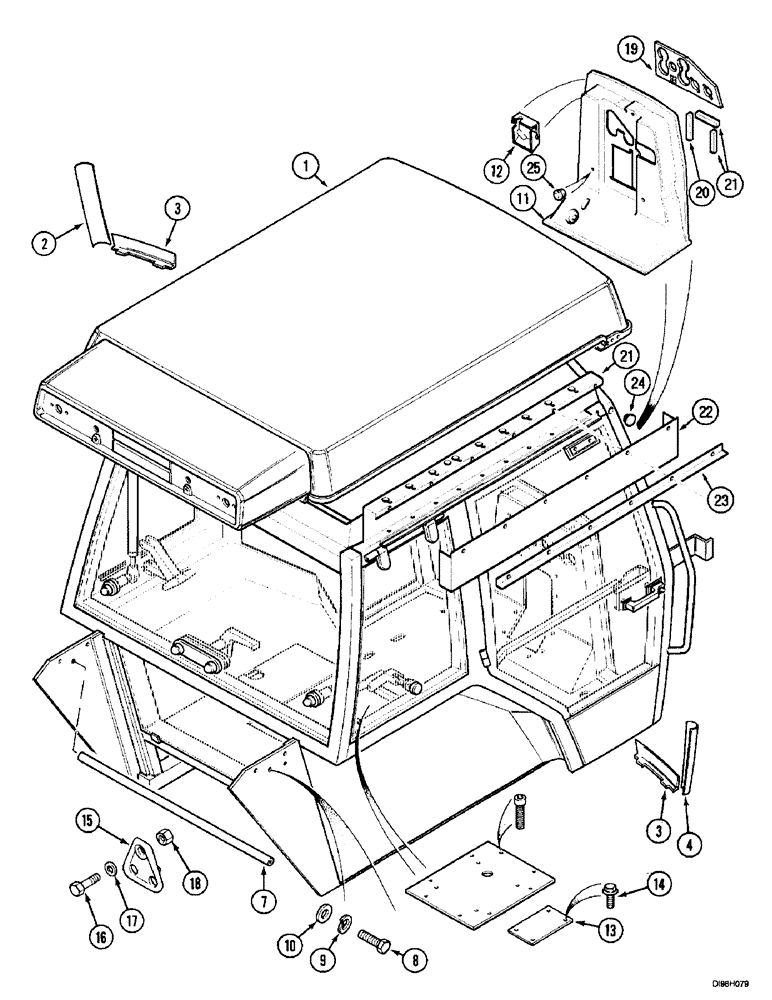

Запчасти Case IH 5150 (9E-04) - CAB AND CAB EXTERNAL TRIM (09) - CHASSIS/ATTACHMENTS

1

241678A1

CAB

Maxxum Pro, 90311 High Roof Europe Only With Heater And Hatch

1шт.

1

1330957C3

CAB

90311 Europe Only With Heater And Hatch

1шт.

1

1340148C3

CAB

90311 N.A.O. Version With Heater - Without Hatch

1шт.

1

126558A2

CAB

90311 Opening Windshield With Air Conditioning And Hatch

1шт.

1a

1330958C3

CAB

90311 Europe Only With Air Conditioning - Without Hatch, Start Serial: JJF1034499

1шт.

1b

143156A2

CAB

90311 Europe Only With Air Conditioning - Without Hatch, Serial Range: -JJF1034500

1шт.

1b

241679A1

CAB

Maxxum Pro, 90311 High Roof Europe Only With Air Conditioning - Without Hatch, Serial Range: -JJF1034500

1шт.

1a

1330959C3

CAB

90311 N.A.O. Version With Air Conditioning - Without Hatch, Start Serial: JJF1034499

1шт.

1b

143157A1

CAB

90311 N.A.O. Version With Air Conditioning - Without Hatch, Serial Range: -JJF1034500

1шт.

1a

1999675C3

CAB

90311 For Finland Only With Air Conditioning And Hatch, Start Serial: JJF1034499

1шт.

1b

143158A2

CAB

90311 For Finland Only With Air Conditioning And Hatch, Serial Range: -JJF1034500

1шт.

1b

241680A1

CAB

Maxxum Pro, 90311 High Roof For Finland Only With Air Conditioning And Hatch, Serial Range: -JJF1034500

1шт.

1a

1999675C3

CAB

, Start Serial: JJF1034499

1шт.

2

1977460C1

DECAL

1шт.

3

1971311C2

PROTECTIVE COVER

PLATE

2шт.

4

1977461C1

DECAL

90311 Right

1шт.

5

1975780C4

PLATE

1шт.

6

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.

7

1977457C1

HANDLE

90311 Rear

1шт.

8

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

11

223997A1

PROTECTOR

1шт.

12

192673A1

PROTECTOR

1шт.

13

1981930C1

LARGE PLATE

PLATE, LARGE 90311 Cab No.: - JKJ92375

1шт.

14

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12, 90311 Cab No - JKJ92375

4шт.

15

1531315C1

SUPPORT

90311 UK Only

1шт.

16

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

18

3234185R1

THREADED INSERT

INSERT, 10 mm

1шт.

19

1533080C2

RUBBER SEAL

RUBBER SEAL 90311 ( - JJF1015045)

1шт.

20

REF

INSTRUCTION

SEAL, 90311 Cut From : 1533889C2 (JJF1015046 - )

1шт.

20

REF

INSTRUCTION

SEAL, 90311 Cut From : 1533889C2 (JJF1015046 - )

2шт.

21

NSS

NOT SOLD SEPARAT

FRAME ASSY.

2шт.

22

245806A1

BRACKET

COVER, 90311 Left (Maxxum Pro - )

1шт.

22

245807A1

BRACKET

COVER, 90311 Right (Maxxum Pro - )

1шт.

23

241509A2

ANGLE BAR

BRACKET, 90311 Left (Maxxum Pro - )

1шт.

23

241510A2

ANGLE BAR

BRACKET, 90311 Right (Maxxum Pro - )

1шт.

24

1533637C1

PLUG

12,5 mm

2шт.

25

1533203C1

PLUG

12,4 mm

2шт.

1533889C2

SEALING STRIP

SEAL, 542 x 20 mm, 90311 Bulk Length

1шт.
