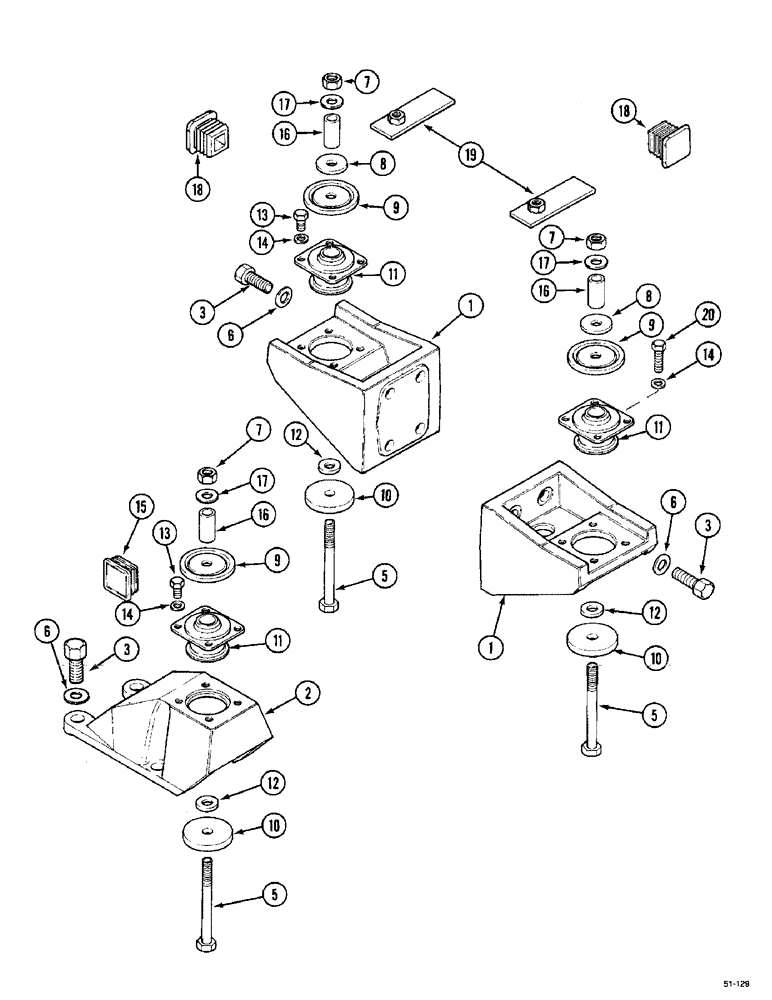

Запчасти Case IH 5150 (9E-02) - CAB AND PLATFORM MOUNTS (09) - CHASSIS/ATTACHMENTS

1

T100566

DRAWBAR SUPPORT

90115 Front

2шт.

2

1531800C1

BRACKET

90115 Rear

2шт.

2

1531882C1

DRAWBAR SUPPORT

90115 Rear With Pneumatic Trailer Brake

2шт.

3

827-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Hex, M16 x 50, 10.9

16шт.

5

827-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

90115 with Cab

4шт.

5

827-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

2шт.

5

31338R1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

16 x 120 mm, 90115 With Cab

2шт.

6

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

16шт.

7

825-1116

NUT,M16, Cl 8

90115 with Cab

4шт.

8

1534387C1

WASHER

2шт.

9

T102494

WASHER

4шт.

10

1958510C1

WASHER

4шт.

11

1533773C1

DAMPER

MOUNT rubber

4шт.

12

3048473R2

WASHER

4шт.

13

827-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

M10 x 20; 10.9

14шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

16шт.

15

T101273

PLUG

2шт.

16

T101275

SPACER

90115 With Cab

4шт.

17

897278H1

WASHER,16.5mm ID x 40mm OD x 8mm Thk

90115 With Cab

4шт.

17

897278H1

WASHER,16.5mm ID x 40mm OD x 8mm Thk

90115 With Cab

2шт.

18

T101230

PLUG

90115 With Cab

2шт.

19

T103154

PLATE

90115 With Cab

2шт.

20

905955R1

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9, Full Thd

10 x 40 mm

2шт.
