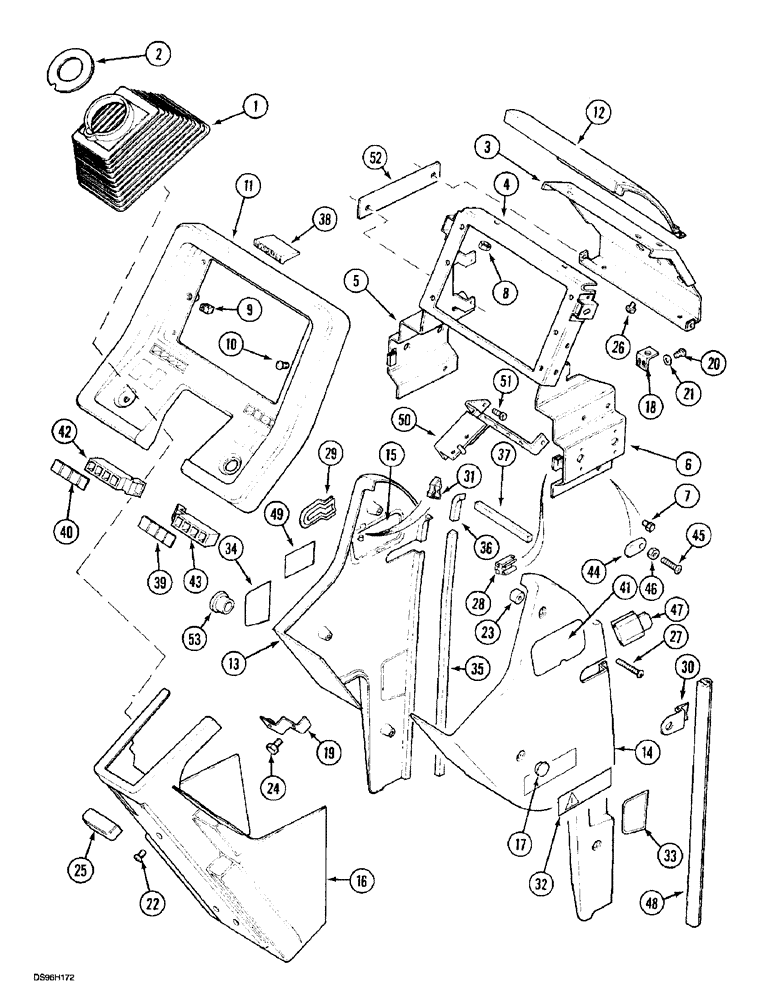

Запчасти Case IH 5150 (9D-06) - INSTRUMENT PANEL - NON CAB, (5120/5130/5140) (09) - CHASSIS/ATTACHMENTS

1

1977839C2

BOOT

1шт.

2

1977448C2

WASHER

1шт.

3

1974761C4

SUPPORT

1шт.

4

T103722

BRACKET

1шт.

5

131362A2

SUPPORT ASSY.

90318 Left

1шт.

6

177895A1

SUPPORT ASSY.

90318 Right

1шт.

7

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

14шт.

8

825-2306

FLANGE NUT,M6 x 1, Flg, Cl 8

M6

8шт.

9

131-606

SPRING NUT,Tinn, U, #10

2шт.

10

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

11

1977705C4

PANEL

1шт.

12

1531170C3

HOUSING

90318 Top, 5120

1шт.

12

1531171C3

PADDING

90318, 5130, 5140 Top

1шт.

13

1531166C3

HOUSING

90318 Left, 5120, Serial Range: -JJF1016704

1шт.

13

1534729C1

HOUSING

90318 Left, 5120, Start Serial: JJF1016705

1шт.

13

1531168C3

HOUSING

90318 Right, 5130, 5140, Serial Range: -JJF1016704

1шт.

13

1534731C1

PADDING

90318 Right, 5130, 5140, Start Serial: JJF1016705

1шт.

14

1534732C1

PADDING

90318 Left

1шт.

15

1531192C2

COVER

ASSY.

1шт.

16

1530985C1

PADDING

1шт.

16

1533542C1

PANEL ASSY.

90318 With Pneumatic Trailer Brake

1шт.

17

1531826C1

PLUG

COVER

6шт.

18

T102637

ANGLE

1шт.

19

1977469C1

HOLDER

BRACKET

1шт.

20

31001R1

SELF-TAP SCREW,Pan Hd, M4.2 x 13

4.2 x 13 mm

2шт.

21

934902R1

WASHER,M5.3 x 15 x 1.6

5.3 x 16 x 1.6

2шт.

22

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

3шт.

23

T103866

SPACER

6шт.

24

628-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

M8 x 12; 10.9

1шт.

25

1981926C2

BUTTON

KNOB

1шт.

26

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

3шт.

27

31347R1

SCREW,Cross Pan Hd, M6 x 40

6 x 40 mm

6шт.

28

T103365

SPRING NUT

6шт.

29

1531629C3

PROTECTIVE COVER

90318 Left

1шт.

30

1531630C3

PROTECTIVE COVER

90318 Right

1шт.

31

T104317

TOOL

2шт.

32

REF

INSTRUCTION

DECAL, 90318 See Figure: 9H-28

2шт.

33

1531764C2

DECAL

1шт.

34

1531765C2

DECAL

90318 Left, Serial Range: -JJF1016704

1шт.

34

1534723C1

DECAL

90318 Left, Start Serial: JJF1016705

1шт.

35

1531822C1

SEALING STRIP

2шт.

36

1531823C1

SEALING STRIP

2шт.

37

1531825C1

SEALING STRIP

2шт.

38

1340049C1

SYMBOLS

SYMBOL

2шт.

39

128557A2

DECAL

90318, Start Serial: JJF1030000

1шт.

39

1975844C4

LABEL

90318, Serial Range: -JJF1029999

1шт.

40

1975843C4

LABEL

1шт.

41

1531193C2

COVER

ASSY.

1шт.

42

1977909C1

CASE

BAR

1шт.

43

1977910C1

CASE

BAR

1шт.

44

1533267C1

RETAINER

2шт.

45

905962R1

SCREW,#6 - 20 x 4.80mm

6 x 20 mm

2шт.

46

825-1106

NUT,Hex, M6, Cl 8

4шт.

47

1533079C1

SEAL

INSERT

2шт.

48

1533096C1

SEAL

1шт.

49

1531153C1

DECAL

1шт.

50

1958600C3

SUPPORT ASSY.

1шт.

51

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

5шт.

52

1533879C1

SUPPORT

BAR, 90318 ( - JJF1046094)

2шт.

53

1534724C1

PLUG

1шт.
