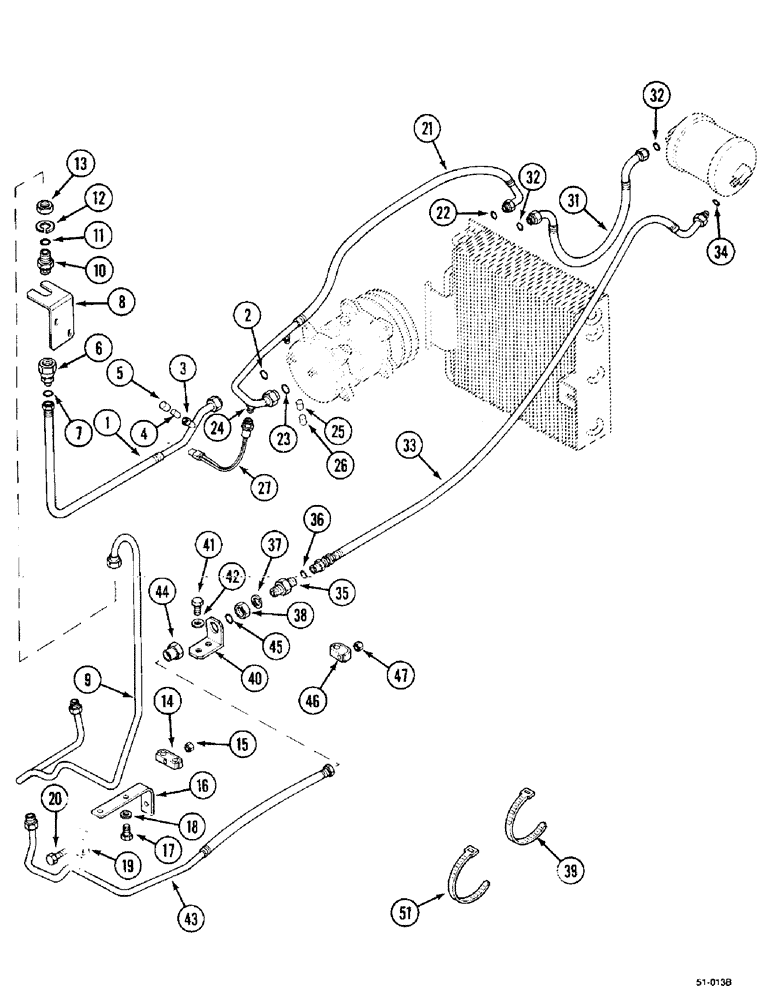

Запчасти Case IH 5150 (2-036) - AIR CONDITIONING PIPES, (R12) ( - JJF1034499) (02) - ENGINE

1

1533576C1

A/C HOSE

665 mm (26-1/4 in), 90317, 5120, Includes: 2-7

1шт.

1

1533575C1

HOSE

977 mm (38-1/2 in), 90317, 5130, 5140, 5150, Includes: 2-7

1шт.

2

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

3

1250593C1

FITTING

1/4

1шт.

4

1250594C2

CORE

1шт.

5

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

NUT 7/16 NF fem x 45 deg fl

1шт.

6

1280492C1

PUSH-PULL COUPLING

1шт.

7

T103182

O-RING,1.78mm Thk x 27mm ID

1шт.

8

1531706C1

SUPPORT

1шт.

9

T103101

PIPE

90317 Includes: 10-13

1шт.

10

1280495C1

COUPLING, BREAK AWAY

1шт.

11

T103182

O-RING,1.78mm Thk x 27mm ID

1шт.

12

1281516C1

LOCK WASHER

1шт.

13

1281518C1

JAM NUT

1шт.

14

T103149

CLAMP

1шт.

15

825-1406

NUT,M6, Cl 8

1шт.

16

1530958C1

SUPPORT

1шт.

17

615-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

M6 x 20

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

T103149

CLAMP

1шт.

20

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

21

117660A1

HOSE

816 mm (32-1/8 in), 90317 Includes: 22-26

1шт.

22

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

24

1250593C1

FITTING

1/4

2шт.

25

1250594C2

CORE

2шт.

26

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

NUT 7/16 NF fem x 45 deg fl

1шт.

27

234921A1

SENSOR

SWITCH, 41510 High Pressure See Also Figure: 4-16

1шт.

31

1530691C1

HOSE

400 mm (15-3/4 in), 90317 Includes: 32

1шт.

32

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

33

T103202

HOSE

90317, 5120, Includes: 34-38

1шт.

33

1530690C1

HOSE

1710 mm (67-3/8 in), 90317, 5130, 5140, 5150, Includes: 34-38

1шт.

34

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

35

167869C1

FITTING

COUPLING

1шт.

36

T103181

O-RING,1.78mm Thk x 17mm ID

1шт.

37

1281517C1

LOCK WASHER

1шт.

38

1281519C1

JAM NUT

1шт.

39

3402979R2

BAND

cable 350 mm

1шт.

40

T103108

BRACKET

1шт.

41

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

42

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

43

T103100

HYD TUBE

90317 Includes: 44, 45

1шт.

44

117771C1

COUPLING,1" - 20 NPT x 7/8" - 20 NPT

1шт.

45

T103181

O-RING,1.78mm Thk x 17mm ID

1шт.

46

176264A1

CLAMP

1шт.

47

825-1406

NUT,M6, Cl 8

1шт.

51

3148767R2

COLLAR CLAMP

STRAP cable 197 mm

5шт.
