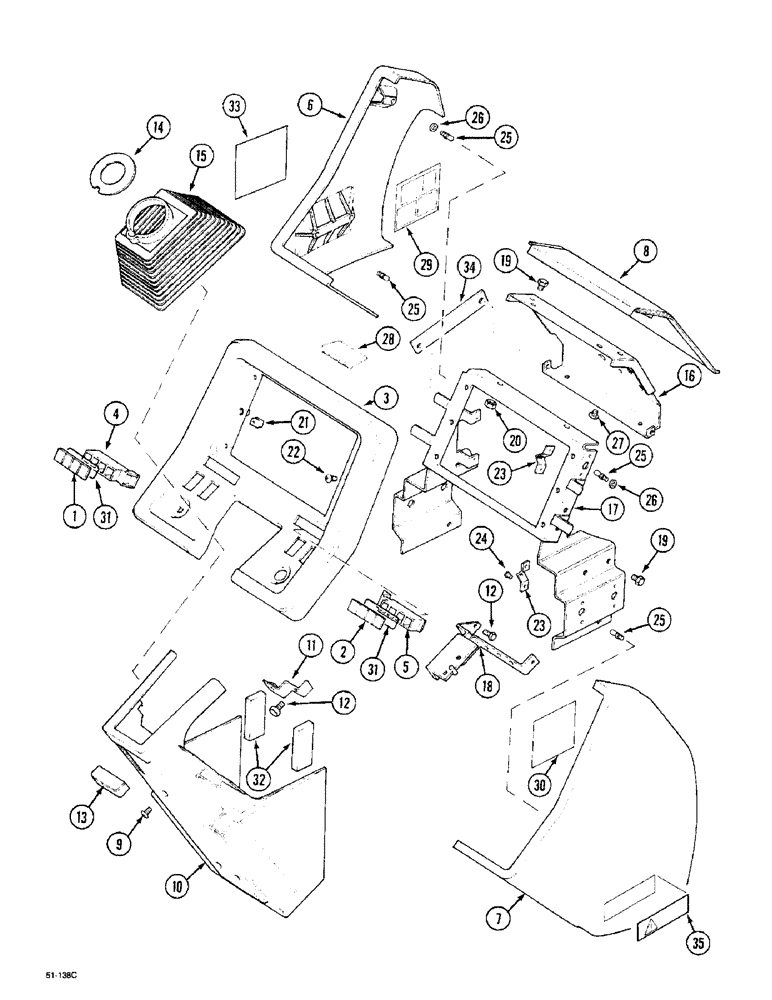

Запчасти Case IH 5150 (9D-04) - INSTRUMENT PANEL - CAB (09) - CHASSIS/ATTACHMENTS

1

1975843C4

LABEL

1шт.

2

128557A2

DECAL

90318, Start Serial: JJF1030000

1шт.

2

1975844C4

LABEL

90318, Serial Range: -JJF1029999

1шт.

3

1977705C4

PANEL

1шт.

4

1977909C1

CASE

BAR

1шт.

5

1977910C1

CASE

BAR

1шт.

6

1977841C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT

1шт.

7

1977840C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT

1шт.

8

1977523C1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT

1шт.

9

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

3шт.

10

1977519C3

PADDING

PANEl

1шт.

10

1533542C1

PANEL ASSY.

90318 With Pneumatic Trailer Brake

1шт.

11

1977469C1

HOLDER

BRACKET

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

13

1981926C2

BUTTON

KNOB

1шт.

14

1977448C2

WASHER

1шт.

15

1977839C2

BOOT

1шт.

16

1340021C2

BRACKET

1шт.

17

1977728C5

SUPPORT ASSY.

1шт.

18

1958600C3

SUPPORT ASSY.

1шт.

19

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

10шт.

20

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

21

131-606

SPRING NUT,Tinn, U, #10

2шт.

22

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

23

1961435C1

LATCH

6шт.

24

151-553

RIVET,Pop, 1/8" x .337"

12шт.

25

1977929C1

STUD,M5 x 0.8

6шт.

26

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

27

30954R1

SCREW,Cross Pan Hd, M5 x 10

5 x 10 mm

2шт.

28

1340049C1

SYMBOLS

SYMBOL

1шт.

29

REF

INSTRUCTION

DECAL, 90318 See Figure: 9H-18

1шт.

30

REF

INSTRUCTION

DECAL, 90318 See Figure: 9H-18

1шт.

31

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

32

98359C1

SEALING STRIP

protection

2шт.

33

1531153C1

DECAL

1шт.

34

1533879C1

SUPPORT

BAR, 90318, Serial Range: -JJF1040799

2шт.

35

REF

INSTRUCTION

DECAL, 90318 See Figure: 9H-18

2шт.
