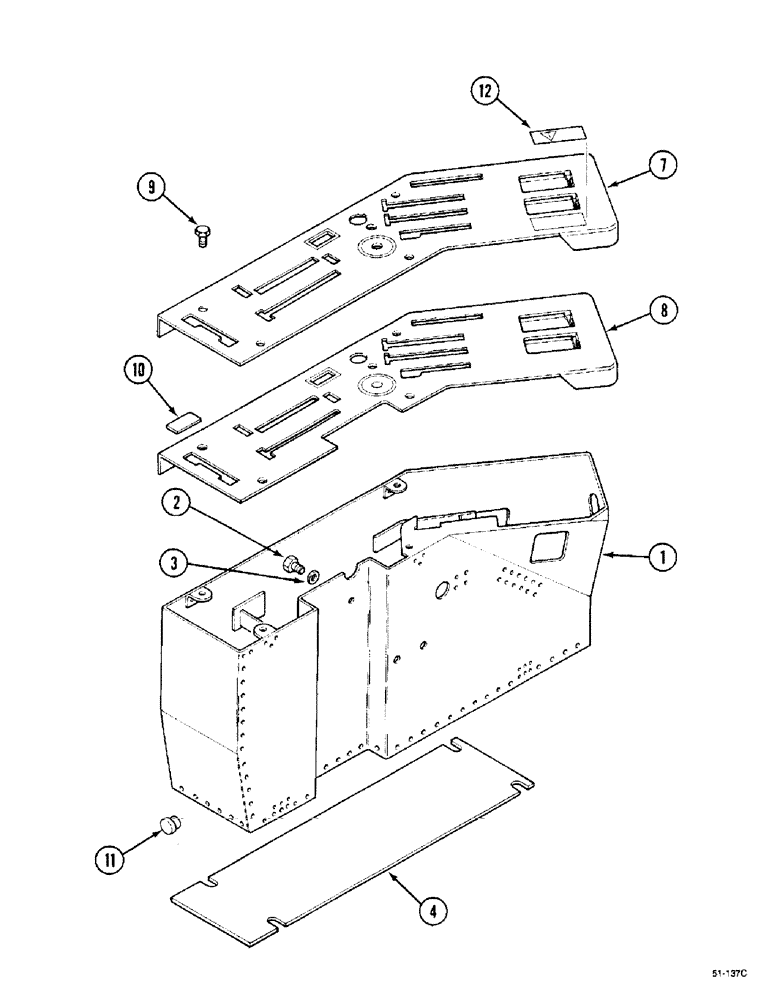

Запчасти Case IH 5150 (9D-02) - CONTROL CONSOLE, RIGHT (09) - CHASSIS/ATTACHMENTS

1

121666A3

BRACKET

COVER ASSY., 90318, Start Serial: JJF1030000

1шт.

1

1531224C4

BRACKET

COVER ASSY., 90318, Serial Range: -JJF1029999

1шт.

2

3402566R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8 x 20 mm

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

4

122412A1

SEAL

SEAL, 90318, Start Serial: JJF1030000

1шт.

4

1531293C1

SEAL SHEET

PLATE, 90318, Serial Range: -JJF1029999

1шт.

7

1534477C1

COVER

protective, 90318, See Figure: 9E-10, Start Serial: JJF1015046

1шт.

7

1531365C1

PROTECTIVE COVER

90318, 5120, 5130, 5140, See Figure: 9E-10, Serial Range: -JJF1015045

1шт.

8

1534478C1

COVER

protective, 90318, With ROPS, Start Serial: JJF1015046

1шт.

8

1531366C1

PROTECTIVE COVER

90318, 5120, 5130, 5140, With ROPS, Serial Range: -JJF1015045

1шт.

9

3229743R1

SCREW,Cross Pan Hd, M6 x 16

6 x 16 mm

6шт.

10

245918C1

LENS

PLUG, blanking, rocker switch

1шт.

11

84200C1

PLUG

17.1 x 8 mm, 90318 Without Creep Speed

1шт.

12

REF

INSTRUCTION

DECAL, 90318 Forward - Neutral - Reverse See Figure: 9H-28

1шт.
