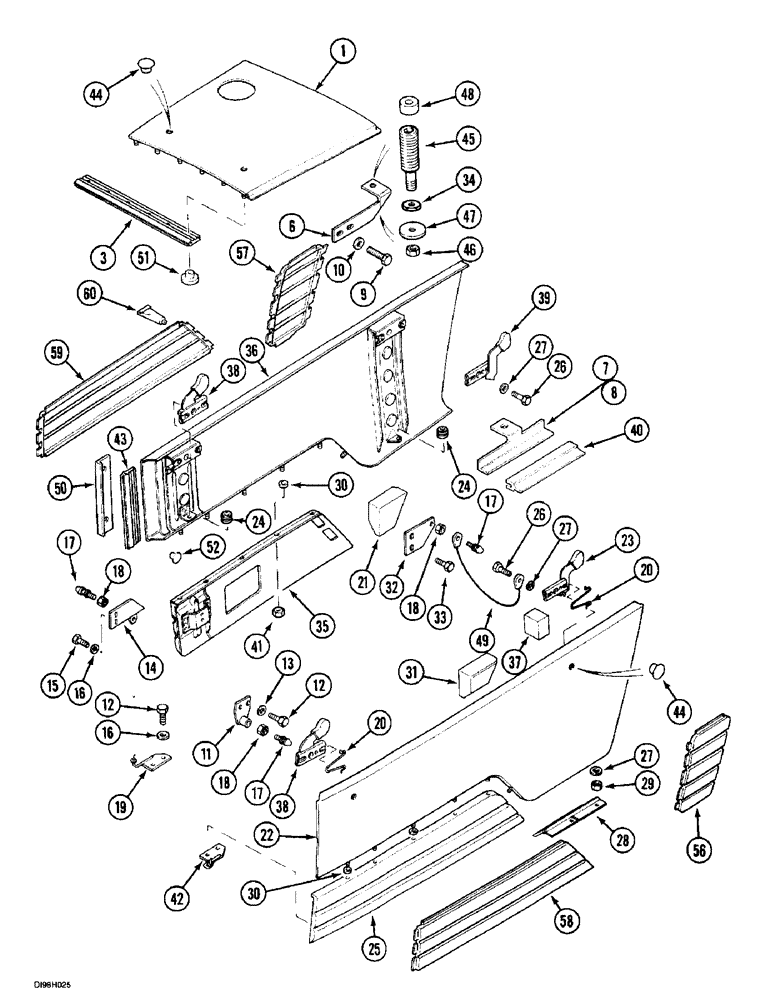

Запчасти Case IH 5150 (9C-18) - SIDE PANELS, (5130/5140/5150) (09) - CHASSIS/ATTACHMENTS

1

1532185C2

HOOD

SHEET, 90131 Rear

1шт.

1

1533867C3

HOOD

SHEET, 90131 Rear Downswept Exhaust

1шт.

3

1531456C2

SEAL SHEET

1шт.

6

1532153C3

SUPPORT ASSY.

90131 Right

1шт.

6

1530814C3

SUPPORT ASSY.

90131 Right

1шт.

7

1533977C2

HOLDER

BRACKET, 90131 Left

1шт.

8

1534266C2

HOLDER

BRACKET, 90131 Right

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

10

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

2шт.

11

T102816

BRACKET

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

T102353

BRACKET

1шт.

15

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

17

1333402C1

SCREW,M8 x 1.25 x 20mm

PIN

4шт.

18

933618R1

THIN NUT,Thin, M8 x 1.25, Cl 04

4шт.

19

1531851C1

SUPPORT

1шт.

20

T101855

SPRING

4шт.

21

1533885C2

SEAL

1шт.

22

1534976C1

PANEL, SIDE

SHEET, 90131 Right, 5150

1шт.

22

1530776C1

PANEL, SIDE

SHEET, 90131 Right (Maxxum Pro - ), 5130, 5140

1шт.

22

1534271C1

PANEL, SIDE

SHEET, 90131 Right (JJF1013890 - Maxxum Pro), 5130, 5140

1шт.

22

1531358C1

PANEL ASSY.

SHEET, 90131 Right, 5130, 5140, Serial Range: -JJF1013889

1шт.

23

1531054C1

LOCK

90131 Right

1шт.

24

1333276C1

GROMMET

4шт.

25

1533800C1

PANEL, SIDE

SCREEN ASSY., 90131, Right 5130, 5140

1шт.

26

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

28

T103611

BRUSH, COMMUTATOR

BRUSH SEAL, 90131 Right, 5130, 5140, Serial Range: -JJF1013889

1шт.

29

825-1406

NUT,M6, Cl 8

8шт.

30

T101932

ROLLER

12шт.

31

1533886C1

SEAL

1шт.

32

1533549C1

SUPPORT

BAR

2шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

34

905866R1

THIN NUT,Thin, M12 x 1.75, Cl 04

M6, 90131 (JJF1013890 - Maxxum Pro)

4шт.

35

1531859C2

PANEL, SIDE

SCREEN, 90131, 5130, 5140 Left

1шт.

36

1534977C1

PANEL, SIDE

SHEET, 90131 Left, 5150

1шт.

36

1530777C1

PANEL, SIDE

SHEET, 90131 Left, 5130, 5140 (Maxxum Pro - )

1шт.

36

1534272C2

PANEL, SIDE

SHEET, 90131 Left (JJF1013890 - Maxxum Pro), 5130, 5140

1шт.

36

1531857C2

PANEL, SIDE

SHEET, 90131 Left, 5130, 5140, Serial Range: -JJF1013889

1шт.

37

1531472C2

SEAL

2шт.

38

1533001C1

LOCK

2шт.

39

1531055C1

LOCK

90131 Left

1шт.

40

T103610

SEAL

90131 Left, Serial Range: -JJF1013889

1шт.

40

1534240C1

SEAL

SEAL, 220 mm, 90131, Start Serial: JJF1013890

2шт.

41

825-1406

NUT,M6, Cl 8

8шт.

42

1531850C1

SUPPORT

90131 Right

1шт.

43

1531459C2

SEAL

90131 Rear

2шт.

44

1533203C1

PLUG

12.4 mm

6шт.

45

1533693C3

SET SCREW,M8 x 45mm

4шт.

46

825-1408

NUT,M8, Cl 8

4шт.

47

1533100C2

WASHER

6 mm

4шт.

48

1533218C1

RUBBER WASHER,10mm ID x 24mm OD x 12mm Thk

rubber

4шт.

49

1533478C1

CABLE

90131 For Germany Only

2шт.

50

1533502C1

SUPPORT

2шт.

51

1534419C2

PLUG

CLIP

6шт.

52

1533836C1

BUTTON

CLIP

4шт.

56

1534988C1

PANEL, SIDE

SCREEN, 90131 Right, 5150

1шт.

56

1534988C1

PANEL, SIDE

SCREEN, 90131 Right, 5130, 5140 (Maxxum Pro - )

1шт.

57

1534989C1

PANEL, SIDE

SCREEN, 90131 Left, 5150

1шт.

57

1534989C1

PANEL, SIDE

SCREEN, 90131 Left, 5130, 5140 (Maxxum Pro - )

1шт.

58

1534990C1

PANEL, SIDE

SCREEN, 90131 Right, 5150

1шт.

59

1534991C1

PANEL, SIDE

SCREEN, 90131 Left, 5150

1шт.

60

1530648C1

GLUE

90131, 5150

1шт.
