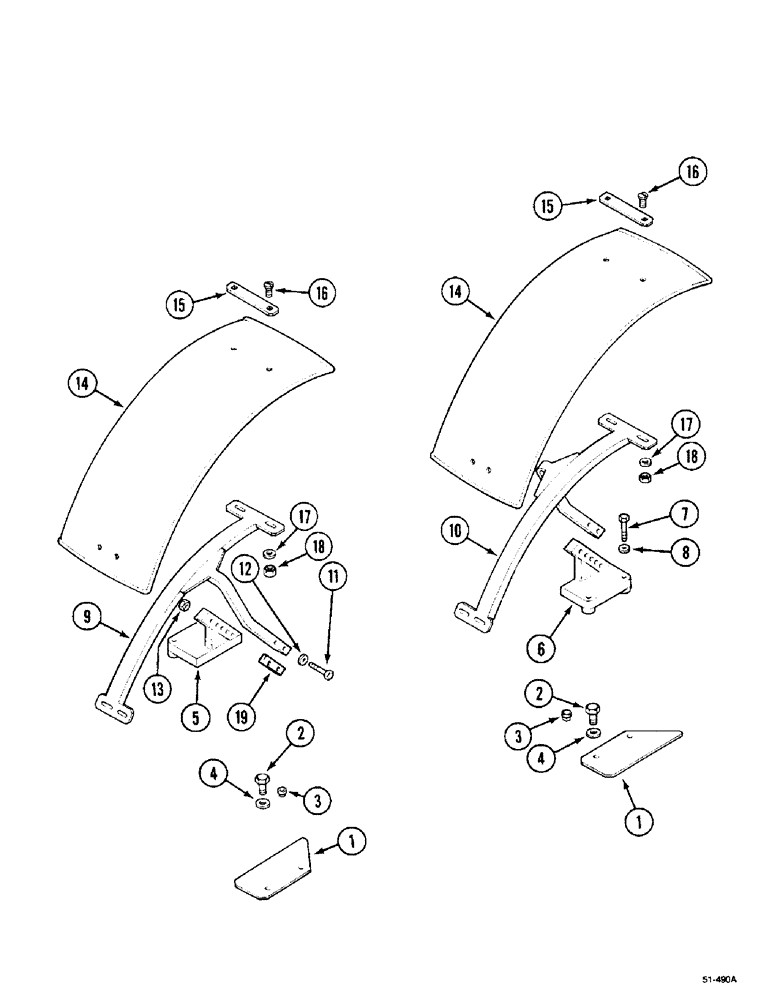

Запчасти Case IH 5150 (9B-8) - FENDERS - FRONT WHEEL, (JJF1026170 - ), MFD TRACTORS (09) - CHASSIS/ATTACHMENTS

1

1534821C3

SUPPORT

PLATE

2шт.

2

613-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

3

716495R2

PLUG

5/8 in

4шт.

4

95-81011

WASHER,17/32" x 1" x .120"

17/32 x 1 x 1/8

4шт.

5

1534347C1

SUPPORT

1шт.

6

1534348C1

SUPPORT

1шт.

7

862-16080

HEX SOC SCREW,M16 x 80mm, Cl 12.9

M16 x 80; 12.9

4шт.

8

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

21/32 x 1-5/16 x 3/16

4шт.

9

1534784C1

SUPPORT ASSY.

90133 For Tires: 11.2-24-28

1шт.

9

1534782C1

SUPPORT ASSY.

90133 For Tires: 12.4-24-28 & 13.6-24-28

1шт.

9

1533647C1

SUPPORT ASSY.

90133 For Tires: 14.9-24 & 16.9-24

1шт.

10

1534785C1

SUPPORT ASSY.

90133 For Tires: 11.2-24-28

1шт.

10

1534783C1

SUPPORT ASSY.

90133 For Tires: 12.4-24-28 & 13.6-24-28

1шт.

10

1533648C1

SUPPORT ASSY.

90133 For Tires: 14.9-24 & 16.9-24

1шт.

11

826-16105

BOLT,Hex, M16 x 2 x 105mm, Cl 10.9

M16 x 105; 10.9

4шт.

12

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

21/32 x 1-5/16 x 3/16

4шт.

13

825-1016

NUT,M16, Cl 8

M16

4шт.

14

90002C2

FENDER ASSY.

SHIELD splash, 90133 For Tires: 11.2-24-28 & 12.4-24-28

2шт.

14

1531382C2

FENDER ASSY.

90133 For Tires: 13.6-24-28 & 14.9-24

2шт.

14

T101283

FENDER ASSY.

SUPPORT, 90133 For Tires: 16.9-24

2шт.

15

1533795C1

LARGE PLATE

PLATE, LARGE BAR, 200 mm

4шт.

15

1533756C1

LARGE PLATE

PLATE, LARGE BAR, 125 mm

4шт.

16

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

8 x 25 mm

8шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

18

717457R1

NUT,M8 x 1.25, Thin

M8

8шт.

19

1534822C1

PLATE

BAR, 90133 For Tires: 11.2-28

2шт.
